MODEL DWA1100TRUCK

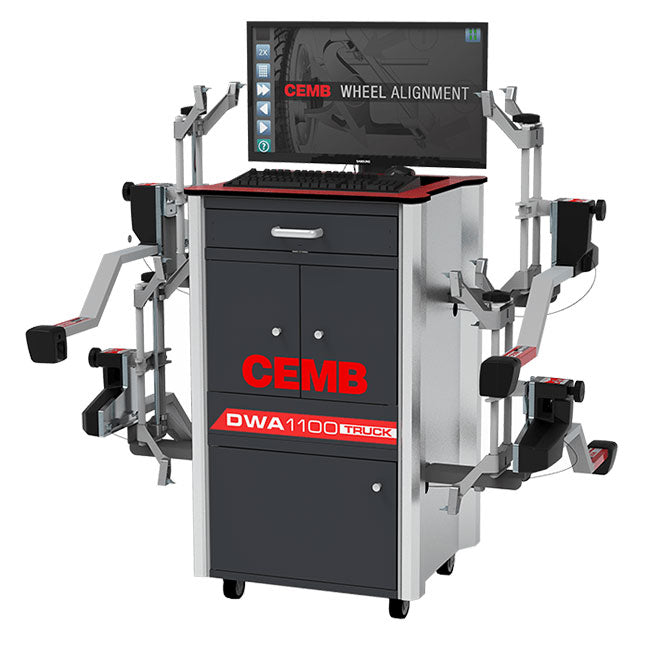

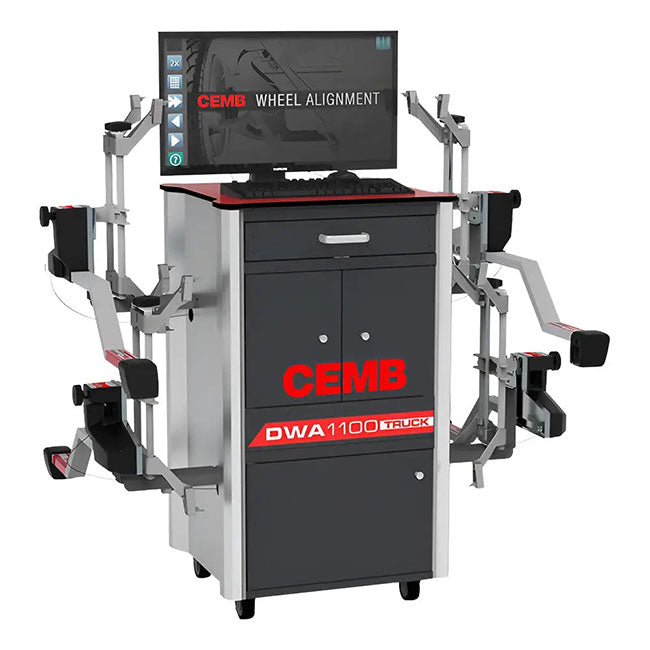

Introducing the CEMB DWA1100 Truck Wheel Alignment System, a premier solution for achieving precise and reliable wheel alignments for heavy-duty trucks and buses. Combining advanced MEMS accelerometer technology with state-of-the-art CCD sensor technology, this system delivers unparalleled accuracy and ease of use, making it an indispensable tool for professional automotive service providers specializing in heavy-duty vehicles.

Product Overview:

The CEMB DWA1100 system stands at the forefront of wheel alignment technology, offering a blend of innovative features that cater specifically to the needs of trucks and buses. This system is designed to streamline the alignment process, providing quick and accurate measurements that help maintain vehicle safety and efficiency.

Key Features:

• Advanced Sensor Technology: Utilizing MEMS accelerometers, a technology derived from the aeronautical field, alongside CCD cameras, the system accurately measures wheel alignment parameters, including caster and camber angles, ensuring precise adjustments.
• Durability and Reliability: The transition from pendulum-type inclinometers to MEMS accelerometers eliminates sensitivity to shocks and vibrations, offering a more robust solution that withstands the rigors of heavy-duty vehicle servicing.
• Comprehensive Vehicle Database: With over 50,000 vehicles in its database, the DWA1100 system makes it effortless to select the correct alignment parameters for a wide range of trucks and buses, ensuring compatibility and ease of use.
• User-Friendly Software: The system comes equipped with intuitive software that guides users through the alignment process with a step-by-step approach, complemented by a clear graphical interface for easy interpretation of results.
• Technology: MEMS Accelerometer and CCD Sensor Technology
• Application: Heavy-Duty Trucks and Buses
• Features: Advanced wheel alignment measurement, durable sensor technology, comprehensive vehicle database, user-friendly software interface

Includes:

• Computer
• 27in TFT monitor
• Colour printer
• Windows 10 OS
• Keyboard
• Mouse
• 1 x DWA cabinet
• 4 x 4-point clamps
• 1 x Brake Pedal
• 1 x Steering Wheel Holder

Ref No.

• DWA1000 (Older Standard Model)
• DWA1000XLT (Older Model)
• DWA1100 (Standard)
• DWA1100ADSA (ADSA Model)

Standard Acessories Included:

1 x Pneumatic Looking Kit (41FF52768)
4 x Cones (40FF88351, 40FF43715, 40FF43716, 40FF61043)
1 x Rim Width Gauge
1 x Weight Plier/Hammer

Optional Acessories (Not Included)

Truck and Bus Enhancement Kit

• Turnplates for Trucks and Buses: Includes two turnplates designed specifically for trucks and buses.
• Rear Measuring Heads for Trucks: A pair of rear measuring heads tailored for truck applications.
• Truck Grips: A set of 16 truck grips, each with a length of 120mm.

Software Solutions

• Comprehensive Software and Database Package: Covers a wide range of vehicles including Cars/Light Trucks and Trucks.
• Car Upgrade Kit: Enhances the system with two turnplates for cars, two sensors for cars, along with software and a database for cars and light vehicles.
• Clamp Extensions for Up to 30" Wheels: Allows for the expansion of the operating diameter to accommodate up to 30-inch wheels.
• Steel Rim Grips: A quartet of metal grips designed for securing steel rims from the inside, which can also double as adapters.
• 50-Inch Supporting Arms Extension: Extended arms to support truck and bus tires measuring up to 50 inches.
• Calibration Kit: Includes everything needed for calibration, featuring a spirit level for precise measurement head calibration.
• Backup Cables: A set of four cables, 13 meters in length, for battery recharging during vehicle-mounted measurements.
• Semitrailer Kingpin Adapter Rod: A specialized alignment rod for semitrailer kingpins.
• Truck Turnplate Ramps: Designed to facilitate the use of truck turnplates.
• KIT ADAS CCD: Enables the use of CCD sensors on any ADAS/ACC calibration structure through universal adapters and simplifies the positioning process with included software.
• Webcam: Supports vehicle positioning on the lift.
• Wireless Stick: A USB WiFi adapter for automatic software and database updates and for utilizing the Wheel Alignment App.
• 3-Point Clamps: Four self-centering wheel clamps for rims ranging from 10" to 25".
• Truck Turnplates: Two turnplates with a 4500Kg capacity, 40cm diameter, 5.5cm height, and nylon spheres.
• Wheel Alignment App: Allows for the wheel alignment monitor to be mirrored on a smartphone or tablet, serving as a remote control.
• Router: Essential for remote control use with the Wheel Alignment App.

These components and software solutions enhance the functionality and versatility of truck and bus wheel alignment systems, offering precision, ease of use, and comprehensive vehicle coverage.
