Axle Jack

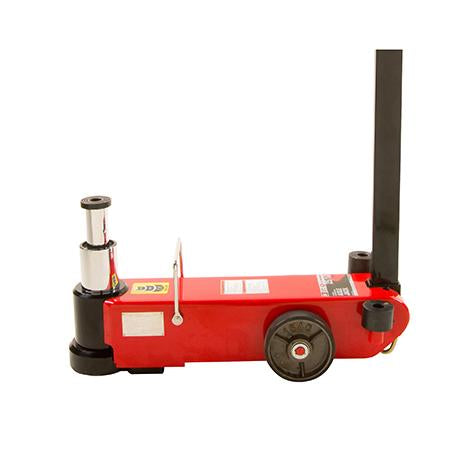

AFF 546SD 25 / 10 TON 2 Stage Air / Hydraulic Axle Jack
- VENDOR:- American Forge & Foundry
- SKU# AFF546SD
Description
AFF American Forge & Foundry Model: 546SD
Features:-
- SUPER HEAVY DUTY, 2 Stage25 Ton and10 Ton built tough for the rigors of the Heavy Duty Trucking, Agricultural and Fleet business
- The piston head seal design is borrowed from Industrial technology providing a superior low and high pressure seal, giving this jack a much better hold under severe load conditions
- The extra long 138cm (54) handle can be locked in 3 positions for easy positioning of this jack in hard to reach places.
- Integral Descent Metering maintains a controlled and safe lowering of the load
- Single piece base construction provides superior strength for increased load stability
- Double polished chromed pistons allow for much tighter tolerances which reduce oil bypassing and reduced ram scoring
- Air assisted lowering speeds up ram retraction
- Built in overload safety valve prevents damage to unit due to excessive load
- Comes with 2 extensions (75mm/3 + 45 mm1.75) and saddle adapter
- Units are tested to -13F(-25C) and +113F(+45C) as well as off center loading to ensure a long life under even the harshest conditions
- UPC874015003406
American Forge & Foundry is a Member of the SureWerx family
Specifications
Capacity |
Ram Lift |
Low Height |
High Height |
High Height w/Ext. |
Working Air Pressure |
Ship Weight |
25 / 10 Tons |
3.82" / 7.56" |
7.28" / 7.28" |
11.10" / 14.84" |
16.85" / 20.59" |
116 to 174 psi |
128 lbs. |
Shipping
This Item Qualifies for FREE LTL SHIPPING (via Truck) it applies only to destinations within the 48 contiguous United States. Alaska, Hawaii, and any/all US territories and international orders are excluded.
LTL Freight Shipping Options- Lift Gate Is Required.(+$150.00)
- I have a forklift for unloading Freight at My Business location
- I have a way of unloading Freight at my location
- Deliver to local freight terminal for pickup.
Please select one of the choices above BEFORE adding to the cart!
PLEASE NOTE:
This item ships by truck. If you Require to ship to a Non-Commercial Address, please email
or call (706) 478-0072 us so we can give you an updated shipping Quote.
Please Review our Terms of Service, Shipping Policy, Return & Refund, Policy Pages.
