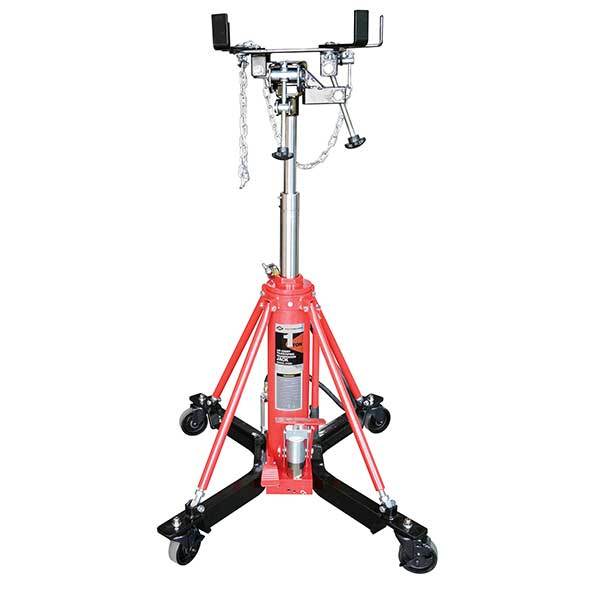

AFF 3102A - 1 Ton Air Assist Telescoping Transmission Jack

Description

AFF American Forge & Foundry Model: 3102A

The AFF American Forge & Foundry Model 3102A Transmission Jack is designed for medium-duty transmissions, transfer cases, and differentials, offering durability and precision for professional mechanics. Featuring a two-stage telescopic ram, this jack ensures smooth lifting with a double pump hydraulic system for quick operation. The powder coat finish enhances resistance to corrosion, chemicals, and scratches, while the chrome-plated pump core and piston rod minimize friction for an extended service life.

Equipped with an adjustable saddle with corner brackets and a safety chain, the 3102A provides secure and stable positioning. For added versatility, it is compatible with the optional Fuel Tank Adapter (Model 3198), which includes safety straps and grounding cables. The unit meets ASME 2014 safety standards, ensuring reliability in professional settings.

Features:

• Two stage telescopic ram designed for medium duty transmissions, transfer cases, and differentials
• Double pump hydraulic system for quick lift operation
• Powder coat finish provides resistance to corrosion, chemicals, and scratches
• Chrome plated pump core and piston rod reduces friction and provides long service life
• Adjustable saddle with corner bracket and safety chain
• Optional Fuel Tank Adapter (Model 3198) available. Includes safety straps and grounding cables.
• Adheres to ASME 2014

American Forge & Foundry is a Member of the SureWerx family

Specifications

• Rated Capacity :2,000 LBS
• Stroke 1st Stage :19"
• Stroke 2nd Stage :20"
• Low Height :37"
• High Height :76"
• Front Tilt :28
• Rear Tilt :49
• Base Width :28x32"
• Operation :Air Assist
• Weight :183 LBS
