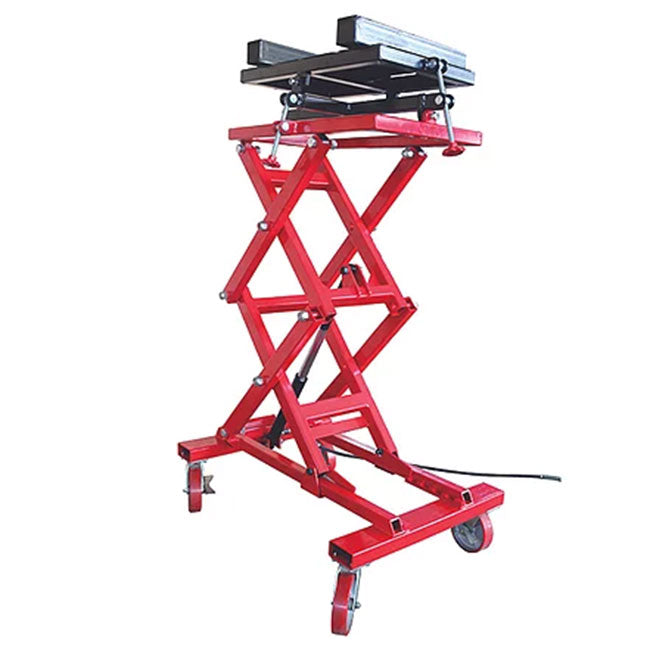

AFF 3182 Power Train Lift/Table, 2500 lb Capacity

Description

AFF American Forge & Foundry Model: 3182

This lift handles transmissions and fuel tanks as well as engines, trans-axles, large electric vehicle batteries, and more. It also serves as a work table where components can be lowered to a stable and secure work height for on site repair.

Features include:

• Unique safety latches at 30%, 50%, and 80% of max height provides additional operator safety
• Air assist foot pump with nine foot extension allows access anywhere around the work area perimeter and provides hands free operation
• Scissors lift design allows access to all four sides of a component
• 8" diameter swivel casters for easy maneuverability under the heaviest loads
• Lifts from 33" to 77"
• Compact design makes the unit easy to store
• 2009 ASME/PALD compliant

American Forge & Foundry is a Member of the SureWerx family

Specifications

• Capacity: 2,500-lb
• Low Height: 33 in
• High Height: 77 in
• Overall Length: 48 in
• Overall Width: 33 in
• Overall Height: 33 in
• Table Size: 20 x 30 in
• Table Tilt: + /- 10 deg
• 2009 ASME/PALD compliant
• Ship weight: 625 lbs.
