• AFF Jaxx American Forge & Foundry 548SD 60 / 40 / 20 TON 3 Stage Air / Hydraulic Axle Jack
1 1

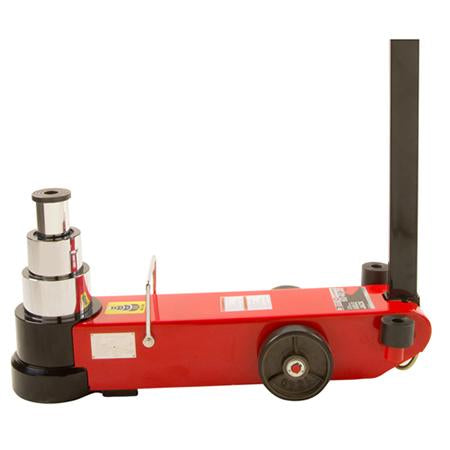

AFF 548SD 60 / 40 / 20 TON 3 Stage Air / Hydraulic Axle Jack

AFF 548SD 60 / 40 / 20 TON 3 Stage Air / Hydraulic Axle Jack

American Forge & Foundry

SKU: AFF548SD

$2,832.41 USD
$2,832.41 USD
Shipping calculated at checkout.

Truck Freight Delivery Options

Choose the freight service needed for delivery. The included option is selected by default.

Included base freight: Commercial address with forklift, loading dock, or equipment to unload from the truck.

Free LTL truck shipping is included to qualifying commercial addresses in the contiguous 48 United States.

Residential delivery, liftgate service, limited-access delivery, inside delivery, and appointment/call-before-delivery services may cost extra. Select any extra services needed before adding this item to your cart.

Included Base Service
Add Services Only If Needed

Description

AFF American Forge & Foundry Model: 548SD

Features:-

  • This SUPER HEAVY DUTY, 3 Stage 60/40/20 Ton Air Hydraulic Jack covers a wide variety of demands from the Heavy Duty Trucking, Agricultural, Fleet, Construction and Military sectors
  • The piston head seal design is borrowed from Industrial technology providing a superior low and high pressure seal, giving this jack a much better hold under severe load conditions
  • The extra long 138cm (54) handle can be locked in 3 positions for easy positioning of this jack in hard to reach places.
  • Integral Descent Metering maintains a controlled and safe lowering of the load
  • Single piece base construction provides superior strength for increased load stability
  • Double polished chromed pistons allow for much tighter tolerances which reduce oil bypassing and reduced ram scoring
  • Air assisted lowering speeds up ram retraction
  • Built in overload safety valve prevents damage to unit due to excessive load
  • Comes with 2 extensions (75mm/3 + 45 mm1.75) and saddle adapter
  • Units are tested to -13F(-25C) and +113F(+45C) as well as off center loading to ensure a long life under even the harshest conditions
  • UPC 874015003420

American Forge & Foundry is a Member of the SureWerx family

Prop 65 Warning

WARNING: This product can expose you to chemicals including Lead which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov.

Specifications

  • Capacity 60/40/20 Tons
  • Ram Lift 3.03"/5.79"/9.02"
  • Low Height 6.89"
  • High Height 9.92"/12.68"/15.91"
  • High Height w/Ext. 15.67"/18.43"/21.66"
  • Working Air Pressure 116 to 174 psi
  • Ship Weight 165 lbs.
