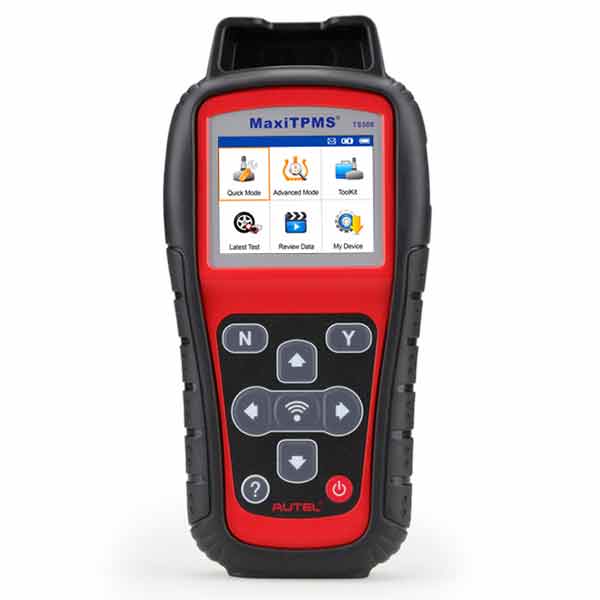

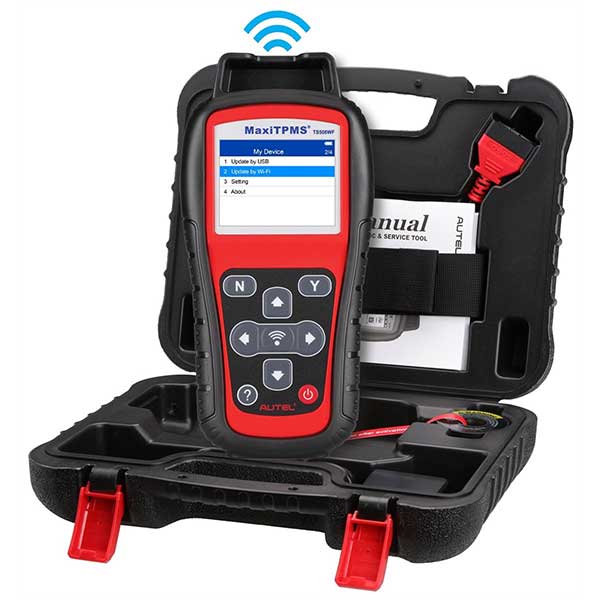

Autel MaxiTPMS TS508WF Tool Packaged in Blow Mold Cases
Part Number: TS508WF
The TS508WF is a TPMS service tool. It is Autel’s first non-tablet tool providing Wi-Fi software updates. It features Quick and Advance modes of TPMS service and a TPMS status screen. It can read/activate/relearn all known sensors, has 4 methods of MX-Sensor programming, and performs placard value resets on supported vehicles. The TS508WF displays on-tool MX-Sensor relearn procedures including OBDII and can do key fob signal tests. It includes an OBDII cable, a 1-year tool warranty, and free lifetime software updates are available with purchase.
- Quick Mode & Advanced Mode Options
- Read/Activate/Relearn All Known Sensors
- Detect & Display TPMS System Faults
- Display Vehicle-Specific Relearn Procedures; Perform OBDII Relearns
- Placard Value Reset on Supported Vehicles
- Update software directly from tool-enabled WiFi
- 4 Programming Options: MX-Sensors Only
- TPMS System Status Screen
- Key Fob Signal Test
- FREE Lifetime Software (lifetime of tool) & 1Yr Warranty
- Display Sensor ID, Battery Life (on supported sensors) and Psi
- Includes OBDII Cable
- 2.3" Color Display 320x240
- Easy-To-Use Navigation
- 3200mAh Lithium-polymer Battery
|Display||TFT color display (320 x 240 dpi)|
|Power||3.7 V Li-polymer battery; 3200 mAh|
|Operating Temp.||0°C to 50°C (32°F to 122°F)|
|Storage Temp.||-20°C to 70°C (-4°F to 158°F)|
|Dimensions||215 mm (8.46”) / 105 mm (4.13”) / 37 mm (1.46”)|
|Weight||0.39 kg (0.86 lb.)|
|Connectivity||Mini USB 2.0 x 1|
