Autel ADAS Mobile Calibration Frame + Tablet

Autel ADAS MA60020T ADAS Mobile Calibration Frame + MS909 Tablet

  • VENDOR:-   Autel
  • SKU#   MA60020T
In Stock
  • $16,135.00
    Unit price per
  • Save $395

- +
Only 0 left!




Important Shipping Information:-
• Orders received on Fridays after 11am EST will be processed the next business day
All orders shipped to a RESIDENTIAL ADDRESS will be subject to Additional charges from all carriers at this time.
What is LIMITED ACCESS - Commercial / Non-Commercial / Farms Click Here to Read More




Shipping Quote Form

If you Would Like a Shipping Quote before Purchasing, Please complete form below and click on "Submit Request". We will either call or send you a full Quote.

Description

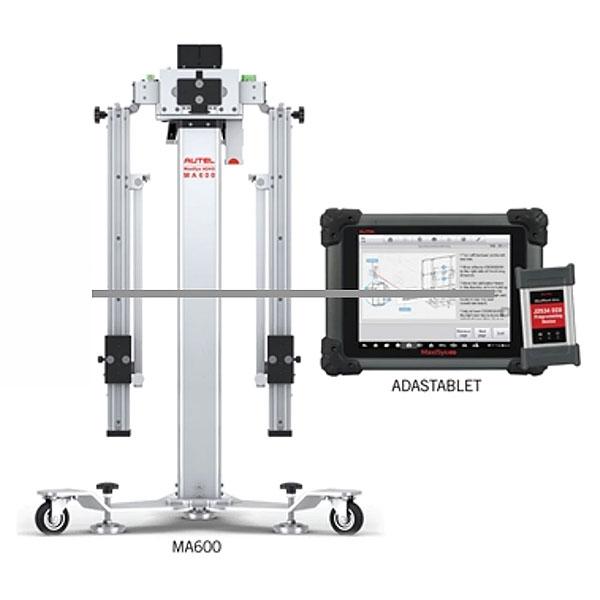

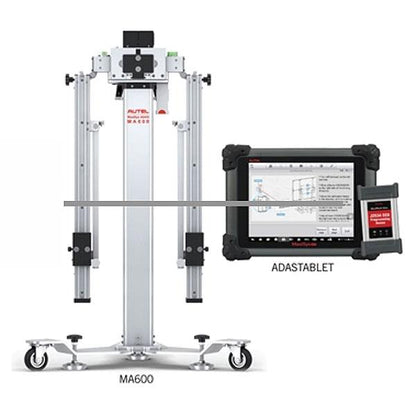

Autel MA60020T ADAS Mobile Calibration Frame + MS909 Tablet

Part Number: MA60020T

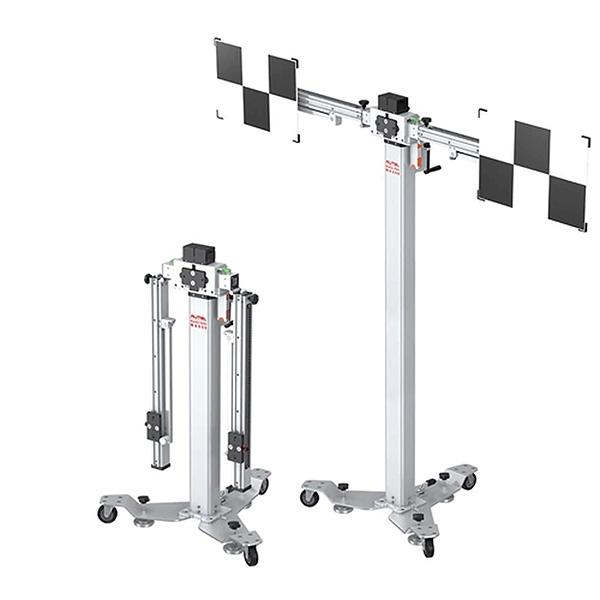

The Autel MaxiSYS ADAS Calibration solution is becoming more portable. The easy to use MA600 frame is quickly folded and disassembled for transport, to calibrate in many locations, creating a smarter service made simple. Advanced Driver Assistance System (ADAS) is becoming standard equipment on today’s new vehicles. With MaxiSys calibration tools and accurate software, Autel MaxiSys ADAS MA600 is an ideal calibration tool for glass replacement and more. Portable expansive affordable. The MA600 provides LDW calibration for camera based systems. Within 2 minutes, one person can perform accurate frame placement.

Includes:
Frame w/LDW case T1&T2, MA600LDW3, Toyota LDA Target, Software Upgrade (1YR). + Tablet

Autel ADAS MA60020T ADAS Mobile Calibration Frame + MS909 Tablet

MA600 provides LDW calibration for camera based systems. Within 2 minutes, one person can perform accurate frame placement.

Autel ADAS MA60020T ADAS Mobile Calibration Frame + MS909 Tablet
Autel ADAS MA60020T ADAS Mobile Calibration Frame + MS909 Tablet

Lane Departure Warning (LDW)MA600LDW2.0

Warns driver when vehicle begins to move out of freeway lane. Designed to minimize causes collisions: driver error, distractions and drowsiness.

MaxiSys ADAS -- MA600 Parts and Accessories

The MA600 provides accurate calibration procedures for camera based systems with accessories and oversize AVM patterns available to purchase separately. The new step-by-step tutorial graphics and fine line laser leveling process offers a quicker and more efficient vehicle centering and squaring to calibration frame procedure. It's the new generation MaxiSYS MA600, smarter service made simple.

Autel ADAS MA60020T ADAS Mobile Calibration Frame + MS909 Tablet

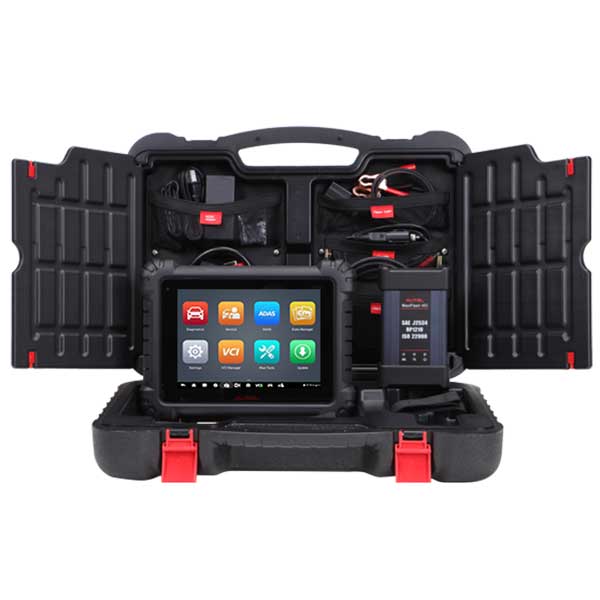

MaxiSys MS909 Tablet

The MaxiSys MS909 features a 10-inch touchscreen tablet with Android 7.0 OS powered by an Octa-core processor (2.3GHz Quad + 1.7GHz Quad), substantial 128GB built-in memory to provide diagnostic guidance and test components to confirm repairs. The MS909 features the new MaxiFlash VCI, a combination VCI and vehicle communication tool providing faster dual Wi-Fi vehicle and network communications. The MS909 features front and rear cameras and a rechargeable Lithium battery providing 8 hours of continuous use to ensure you always have the power to scan.

Autel ADAS MA60020T ADAS Mobile Calibration Frame + MS909 Tablet
Autel ADAS MA60020T ADAS Mobile Calibration Frame + MS909 Tablet



Processor
Samsung Exynos 8895V octa-core Processor (2.3GHz Quad-core Mongoose + 1.7GHz Quad-core A53)

Memory
4GB RAM & 128GB On-board Memory

Display
9.7-inch TFT-LCD with 1536 x 2048 resolution & capacitive touch screen

Connectivity
WiFix2 (802.11 a/b/g/n/ac 2x2 MIMO)
BT v.2.1 + EDR
GPS
USB 2.0 (TWO USB HOST Type A, ONE USB mini device)
HDMI 2.0
SD Card (Support up to 256GB)

Camera
Rear: 16 Megapixel, Autofocus with Flashlight
Front: 5.0 Megapixel

Sensors
Gravity Accelerometer, Ambient Light Sensor (ALS)

Audio Input/Output
Microphone
Dual Speakers
3-Band 3.5 mm stereo/standard headset jac

Power and Battery
15000mAH 3.8V lithium-polymer battery
Charging via 12V AC/DC power supply with the temperature between 0°C and 45°C

Input Voltage
12V/3A Adapter

Operating Temperature
0 to 50°C (32 to 122°F)

Storage Temperature
-20 to 60°C (-4 to 140°F)

Dimensions
(W x H x D) 304.4 mm (11.98") x 227.8 mm (8.97") x 42.5 mm (1.67")

Weight
1.66kg (3.66 lb.)

Protocols
DoIP, PLC J2497, ISO-15765, SAE-J1939, ISO-14229 UDS, SAE-J2411 Single Wire Can(GMLAN), ISO-11898-2, ISO-11898-3, SAE-J2819 (TP20), TP16, ISO-9141, ISO-14230, SAE-J2610 (Chrysler SCI), UART Echo Byte, SAE-J2809 (Honda Diag-H), SAE-J2740 (GM ALDL), SAE-J1567 (CCD BUS), Ford UBP, Nissan DDL UART with Clock, BMW DS2, BMW DS1, SAE J2819 (VAG KW81), KW82, SAE J1708, SAE-J1850 PWM (Ford SCP), SAE-J1850 VPW (GM Class2)

WARNING: This product may expose you to chemicals including lead which are known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov

Specifications

Lane Departure Warning (LDW)MA600LDW2.0
Warns driver when vehicle begins to move out of freeway lane. Designed to minimize causes collisions: driver error, distractions and drowsiness.

MaxiSys ADAS -- MA600 Parts and Accessories
The MA600 provides accurate calibration procedures for camera based systems with accessories and oversize AVM patterns available to purchase separately. The new step-by-step tutorial graphics and fine line laser leveling process offers a quicker and more efficient vehicle centering and squaring to calibration frame procedure. It's the new generation MaxiSYS MA600, smarter service made simple.
