MaxiTPMS TPMS Tool
Autel ITS600 MaxiTPMS Automotive Scan Tool TPMS Relearn Function
- VENDOR:- Autel
- SKU# ITS600
What Is MAP PRICE? Click to Read More →
Description
Autel ITS600 MaxiTPMS Automotive Scan Tool TPMS Relearn Function, four MX-Sensor Programming Option.s
Part Number: ITS600

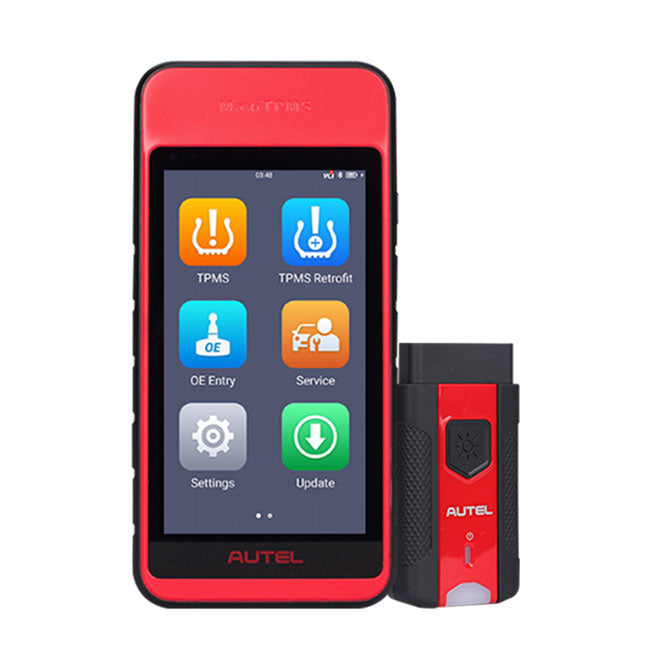

The MaxiTPMS ITS600 is a wireless, touchscreen Android-based tablet that offers complete TPMS diagnostics and service functions. The tablet features a 5.5-inch color display and Bluetooth vehicle communication interface (VCI). Compatible with U.S, Asian and European TPMS-equipped vehicles, the ITS600 features an enhanced TPMS status screen, VINscan for rapid vehicle identification, four MX-Sensor programming options, OBDII relearn functionality and onscreen relearn instructions for all vehicles.

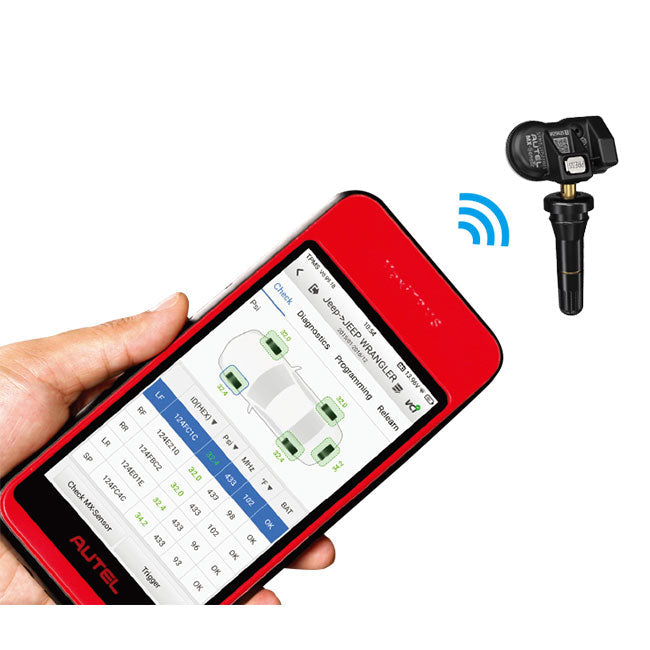

The ITS600 can activate, read and relearn all known sensors, perform TPMS system diagnostics and four common maintenance services. Additionally, it provides DOT number scan, tire expiration notice, and access to recall lookup. The ITS600 is compatible with TBE200/TBE100 Tire Tread & Brake Disc Wear Analysis tool, sold separately. By providing an extensive series of tire-related features and functions, ITS600 is your ideal choice to complete TPMS and tire health work.
EVERYTHING TPMS SOLUTIONS
- Activates, reads and relearns all known sensors
- Enhanced, at-a-glance diagnostics status screen
- Fast OBDII relearn for most vehicles
- Program MX-Sensors to replace 99% of OE sensors
- Copy By OBD sensor programming for faster service
- Four MX-Sensor program modes; batch program up to 20 MX-Sensors
- Includes wireless Bluetooth vehicle communication interface (VCI)
- Tire pressure placard value reset
- Read/Clear TPMS system codes & view live data
- Free Wi-Fi software updates for the life of the tool
Specifications
| Recommended Use | Indoor |
| Operating System | Android™ 9.0 |
| Processor | Quad-core processor (1.5 GHz) |
| Memory | 1GB RAM DDR4 & 64GB ROM |
| Display | 5.5-inch LCD capacitive touchscreen with 1280x720 resolution |
| Connectivity | • Wi-Fi |
| • USB 2.0, Type C | |
| • BT | |
| Sensors | Light sensor for brightness auto adjust |
| Audio input/output | Input: N/A |
| Output: Beep | |
| Power and Battery | • 3.8 V/5000 mAh lithium-polymer battery |
| • Charges via 5 V AC/DC power supply | |
| Battery Charging Input | 5 V/2 A |
| Power Consumption | 600 mA (LCD on with default brightness, Wi-Fi on) @3.8 V |
| Operating Temp. | -10 to 45°C(14 to 113°F) |
| Storage Temp. | -20 to 60°C (-4 to 140°F) |
| Dimensions (W x H x D) | 183.0 mm (7.2”) x 89.0 mm (3.5”) x 22.0 mm (0.87”) |
| Net Weight | 368 g (0.8 lb.) |
| Protocols | ISO9141-2, ISO14230-2,ISO15765, K/L-Line, Flashing Code, |
| SAE-J1850 VPW, SAE-J1850PWM, ISO11898 (Highspeed, Middlespeed, | |
| Lowspeed and Singlewire CAN, fault-tolerant CAN), SAE J2610, | |
| GM UART,UART Echo Byte Protocol, Honda Diag-H Protocol, TP2.0, TP1.66 |
Shipping
This is a Plus Shipping item which only can be shipped to destinations within the 48 contiguous United States. Alaska, Hawaii, and any/all US territories and international orders are excluded.
Price will be calculated at check-out.
UPS Shipping rates are calculated based on actual and dimensional weights. To find your rate, add the item to your cart and then enter your zip code into the right hand side of the shopping cart. If your total UPS order is over 120 lbs, the system will not calculate charges.
*Note: If you are having trouble checking out, please call us at (706) 478-0072.
OR
If you have a special shipping request you need arranged, please email
or call us.
Please Review our Terms of Service, Shipping Policy, Return & Refund, Policy Pages.
Documents
Flyer Autel ITS600 MaxiTPMS Automotive Scan Tool
Quck Guide Autel ITS600 MaxiTPMS Automotive Scan Tool
