Battery Tester and Diagnostic Scan Tools

Autel MaxiBAS BT506 Battery Tester and Vehicle Diagnostic Automotive Tool

  • VENDOR:-   Autel
  • SKU#   BT506
In Stock
  • $160.00
  • MAP PRICE
  • What Is MAP PRICE? Click to Read More →


  • - +
    Only -4 left!




    Important Shipping Information:-
    • Orders received on Fridays after 11am EST will be processed the next business day
    All orders shipped to a RESIDENTIAL ADDRESS will be subject to Additional charges from all carriers at this time.
    What is LIMITED ACCESS - Commercial / Non-Commercial / Farms Click Here to Read More



    Description

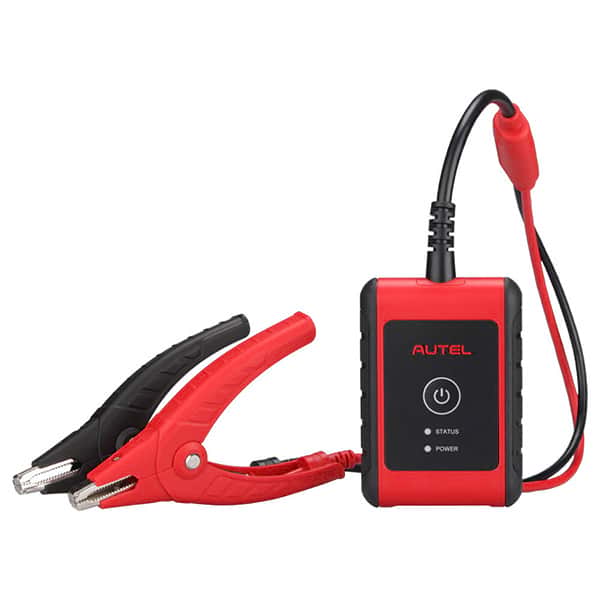

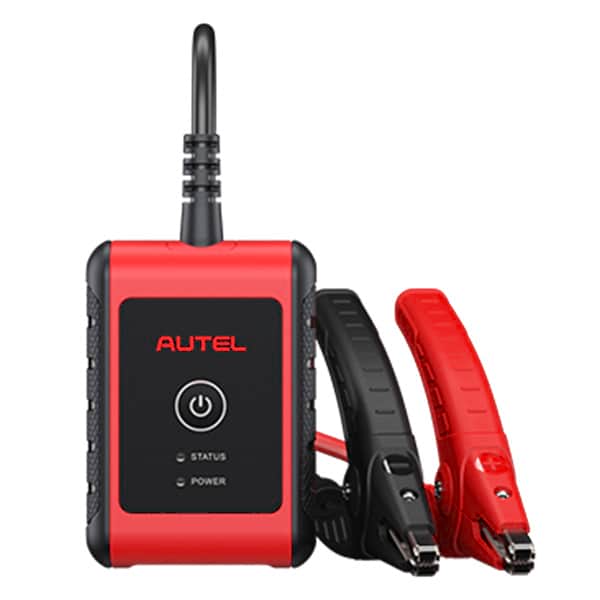

    Autel MaxiBAS BT506 Battery Tester and Vehicle Diagnostic Automotive Tool

    Part Number: BT506

    THE BT506 is a battery and electrical system analysis tool that use as Adaptive Conductance an advanced battery analysis method, to produce a more accurate examination of the battery’s cold cranking ability and reserve capacity, vital to determining a battery’s true health. The BT506 enables technicians to view the health status of vehicle's battery and electrical system. Download the free and easy-to-use mobile app, available for iOS and Android devices, to use with the BT506 to perform testing and display test results.

    There is no better multifunctional scan tool on the market and number 1 in diagnostic automotive tools.

    Features:

    • Support in-vehicle and out-of-vehicle testing of passenger vehicle batteries
    • Test 6- and 12-volt batteries: 100 - 2000 CCA
    • Test 12- and 24- cranking/charging systems
    • Test Flooded, AGM, AGM Spiral, EFB and GEL batteries
    • Compatible with CCA, CA, SAE, EN, IEC, DIN, JIS and MCA
    WARNING: This product may expose you to chemicals including lead which are known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov

    Specifications

    Item Description
    Connectivity l     USB 2.0, Type C
    l     Bluetooth V3.0 BR/EDR+ V4.2 LE Dual-Mode
    Input Voltage 5   V DC
    Working Current <   150 mA at 12 V DC
    Internal Battery N/A
    CCA Range 100   to 2000 A
    Voltage Range 6   to 36 V
    Working Temperature -10°to   50° C (14° to 122° F)
    Storage Temperature -20°   to 60° C (-4° to 140° F)
    Dimension (L x W x H) 107   mm (4.21“) x 75 mm (2.95”) x 26 mm (1.02”) (clamp cable not included)
    Weight 320   g (0.7 lb.)

    Shipping

    This is a Plus Shipping item which only can be shipped to destinations within the 48 contiguous United States. Alaska, Hawaii, and any/all US territories and international orders are excluded.

    Price will be calculated at check-out.

    UPS Shipping rates are calculated based on actual and dimensional weights. To find your rate, add the item to your cart and then enter your zip code into the right hand side of the shopping cart. If your total UPS order is over 120 lbs, the system will not calculate charges.

    *NoteIf you are having trouble checking out, please call us at  (706) 478-0072.

    OR

    If you have a special shipping request you need arranged, please email
     or call us.

    Please Review our Terms of Service, Shipping Policy, Return & Refund, Policy Pages.

    Documents

    Autel BT506 Sales Flyer

    Video

    Autel MaxiBAS BT609/BT608/BT508/BT506
