Diagnostic Scan Tools

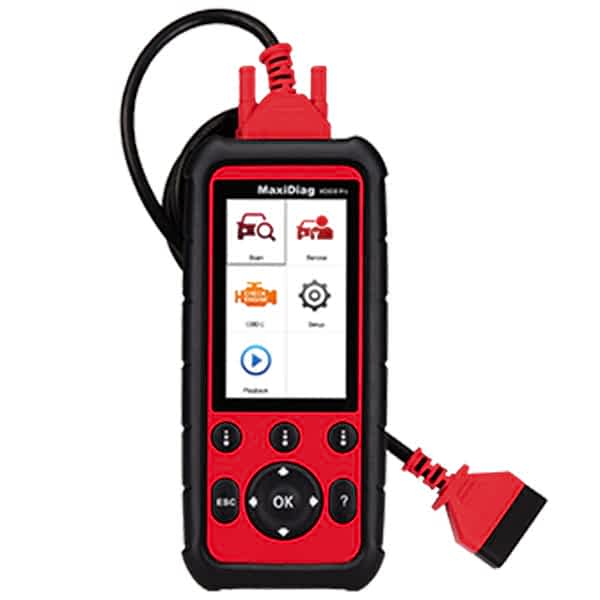

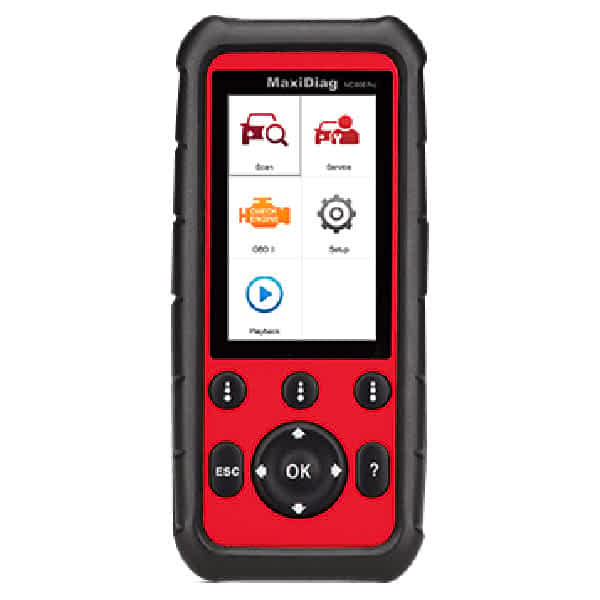

Autel MaxiDiag MD808P Pro All System OBDII Scanner
- VENDOR:- Autel
- SKU# MD808P
What Is MAP PRICE? Click to Read More →
Description
Autel MaxiDiag MD808P All System OBDII Scanner is Best Diagnostic Automotive Tools one can buy.
Part Number: MD808P
Diagnostic automotive tools are used to Read and Clear Trouble Codes. The MaxiDiag MD808 Pro is built to take your diagnostic experience to a whole new level. Loaded with oil service reset, battery registration and reset, parking brake pad relearn after replacement, steering angle sensor relearn and diesel particulate filter regeneration functions, MD808 Pro can access ALL available modules for the best diagnosis operations. With all that enclosed in a 4-inch hand-held device, there is no better multifunctional scan tool on the market.
- Support Read/Clear Codes and Live Data functions for ALL systems
- Read and clear trouble codes, control and test BMS/Oil Reset/ SRS/EPB/DPF systems
- Support oil service reset
- Support battery registration and reset
- Diesel particulate service including forced regeneration
- Reset steering angle sensor (SAS) functionality
- Relearn parking brake pad after replacement
- Reset service mileage and service intervals
- Turn off ECU brake warning light
- Perform O2 monitor, on-board monitor, I/M readiness and component testing
- Print diagnostic reports via PC connection
- Global OBD II coverage for U.S. domestic, Asian and European makes and models
- All OBD II protocols, all 10 test modes and enhanced OBD II mode 6 support
Specifications
| Processor | ARM® Thumb® Processor (400 MHz) |
| Memory | 32MB, 166 MHz |
| Display | 4.0 inch LCD with 800x480 resolution |
| Connectivity | Mini USB: 2.0 Micro SD Card (16GB) |
| Power Consumption | 1.7 W |
| Operating Temperature | -10°C to 60°C (14°F to 140°F) |
| Storage Temperature | -20°C to 70°C (-4°F to 158°F) |
| Operating Humidity | 5% - 95% non-condensing |
| Housing | Strong plastic housing with protective rubber boot |
| Dimensions (W x H x D) | 202 mm x 92 mm x 35 mm (8.35” x 3.62” x 1.4”) |
| Weight | 313 g (0.69 lb.) |
Shipping
This is a Plus Shipping item which only can be shipped to destinations within the 48 contiguous United States. Alaska, Hawaii, and any/all US territories and international orders are excluded.
Price will be calculated at check-out.
UPS Shipping rates are calculated based on actual and dimensional weights. To find your rate, add the item to your cart and then enter your zip code into the right hand side of the shopping cart. If your total UPS order is over 120 lbs, the system will not calculate charges.
*Note: If you are having trouble checking out, please call us at (706) 478-0072.
OR
If you have a special shipping request you need arranged, please email
or call us.
Please Review our Terms of Service, Shipping Policy, Return & Refund, Policy Pages.
Documents
Video
Autel MaxiDiag MD808 Pro — Introduction
The MaxiDiag MD808 Pro is the most affordable All System Diagnostic and Advanced Service Functions scan tool. With the 800x480 color display, 16G micro SD card and multilingual support, the MD808 Pro is a dedicated service tool providing ready access to the most popular services including:
1. Oil and service light reset
2. Battery reset
3. Steering angle sensor calibration
4. Electronic parking brake
5. Diesel particulate filter diagnosis and regeneration
6. Throttle adaption
Also, limited 1 year warranty service and free lifetime software updates of the MD808 Pro are offered.
The MD808 Pro will definitely take your diagnostic experience to a whole higher level!
