Thermal Imaging Camera

Autel MaxiIRT IR100 Thermal Imaging Camera Automotive Specialty Tool

  • VENDOR:-   Autel
  • SKU#   IR100
In Stock
  • $695.00
    Unit price per

- +
Only 0 left!




Description

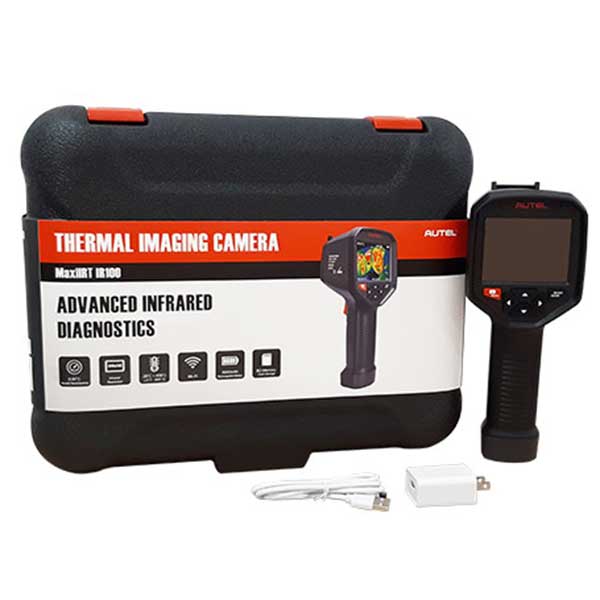

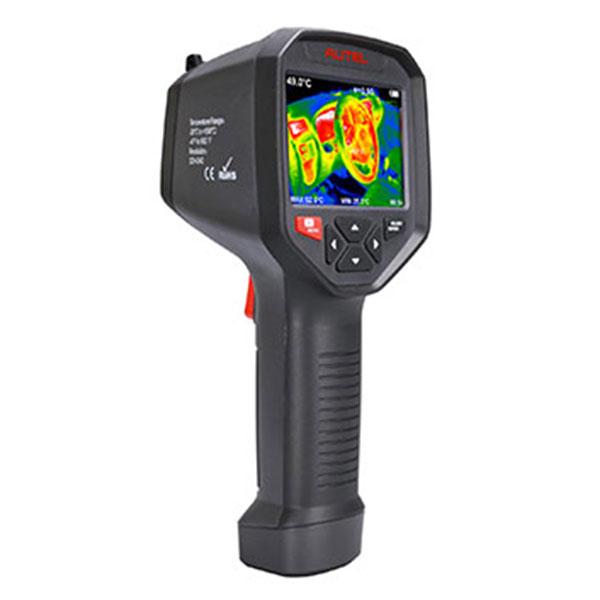

Autel MaxiIRT IR100 Infrared Thermal Imaging Camera Automotive Specialty Tool

*** WHILE SUPPLIES LAST --- SOON TO BE DISCONTINUED ***

Part Number: IR100

The MaxiIRT IR100 Thermal Imaging Camera measures from -20° C to 450° C (-4° F to 842° F), making heat fluctuation, loss, or buildup visible to the human eye. The dual camera overlay feature allows you to view thermal images over standard images, creating easily identifiable images. The IR100 combines high resolution, auto-focus, a 0.98 second refresh rate, and Wi-Fi image transfer to your PC or mobile device, including your MaxiSYS tablet, for a swift and accurate diagnosis. Adjustable emissivity settings and a choice of five color pallets helps customize the user experience. Troubleshoot brakes, exhaust, heated seats, HVAC and more in seconds. The IR100 includes a 1-Year Warranty.

Features:

  • MaxiIRT IR100 Thermal Imaging Camera
  • Auto-Focus for Instant Thermal Imaging
  • 320x240 Infrared Resolution for Clear Image
  • Measures from -20° C to 450° C (-4° F to 842° F)
  • Wi-Fi Image Transfer to PC or Mobile Device
  • Dual Camera Overlay Feature
  • Adjustable Emissivity Settings (Supports from 0.01 to 1.00) For the Most Accurate Results
  • Choose from Five Color Palettes: Iron Red, Cool, White, Black, Rainbow (Spectra)
  • 8GB Memory Card Storage Holds Up to 50,000 Pictures
  • 5000mA Rechargeable Lithium-ion Battery for 4 Hours of Use Per Charge
  • 0.98s Refresh Rate for Real-Time Accuracy
  • Includes a 1-Year Warranty
WARNING: This product may expose you to chemicals including lead which are known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov

Specifications

Display screen 3.5 inch full view TFT display
Infrared image resolution 320×240
Visible image resolution 300,000 pixel
LCD resolution 640×480
Field angle 56°×42°
Thermal sensitivity 0.07°C
Frame rate of thermal images 9Hz
Focus mode Fixed
Wave length coverage 8-14um
Emissivity Adjustable from 0.01 to 1.00
Color palette rainbow, iron oxide red, cold color, white hot, black hot
Temperature measurement range -20 °C to 450 °C
Storage capacity Built in 8G
File format JPEG
USB Micro USB 2.0
Power supply Built in chargeable 26650 battery Detachable
Working time 3-4 hours
Language English, Chinese , German, Italian
Automatic power Selectable: 5 minutes, 20 minutes, not power off automatically
off time
Product size 256mm×97.2mm×128.9mm
Product weight 588g
Working temperature 0
°C to 45 °C
Storage temperature -20 °C to 60 °C

Shipping

This is a Plus Shipping item which only can be shipped to destinations within the 48 contiguous United States. Alaska, Hawaii, and any/all US territories and international orders are excluded.

Price will be calculated at check-out.

UPS Shipping rates are calculated based on actual and dimensional weights. To find your rate, add the item to your cart and then enter your zip code into the right hand side of the shopping cart. If your total UPS order is over 120 lbs, the system will not calculate charges.

*NoteIf you are having trouble checking out, please call us at  (706) 478-0072.

OR

If you have a special shipping request you need arranged, please email
 or call us.

Please Review our Terms of Service, Shipping Policy, Return & Refund, Policy Pages.

Documents

Autel MaxiIRT IR100 Flyer

Autel MaxiIRT IR100 User Manual
