Autel MaxiSYS ADAS Standard Frame + Tablet

Autel ADAS MaxiSYS LDW20T Standard Calibration Frame + Software application (1Yr) + MS909 Tablet

  • VENDOR:-   Autel
  • SKU#   LDW20T
In Stock
  • $17,965.00
    Unit price per
  • Save $1,655

- +
Only 0 left!

Description

Autel ADASLDW2.0T MaxiSYS Standard Calibration Frame + Software application (1Yr) + MS909 Tablet

Advanced Driver Assistance System (ADAS) is becoming standard equipment on today’s new vehicles. These systems are designed to assist drivers to prevent collisions by displaying alerts, providing camera images or by taking instantaneous control of the vehicle. The Autel MaxiSys ADAS provides the original complete diagnostic functionality, comprehensive and precise ADAS calibration. With MaxiSys calibration tools and accurate software, Autel MaxiSys ADAS is an ideal calibration tool for collision repair, glass replacement and repair shops.

The Autel MaxiSYS ADAS Standard Frame is ideal for one-location shops or for use with an Alignment Machine. The sturdy, adjustable frame provides a new station to bring ADAS Calibration services.
The Autel calibration frame provides compatible use with vehicle leveling lifts by offering a taller than average extended adjustable height. Easily and precisely adjust calibration frame crossbar during leveling process to ensure vehicle is correctly centered and parallel while facing targets for calibration.

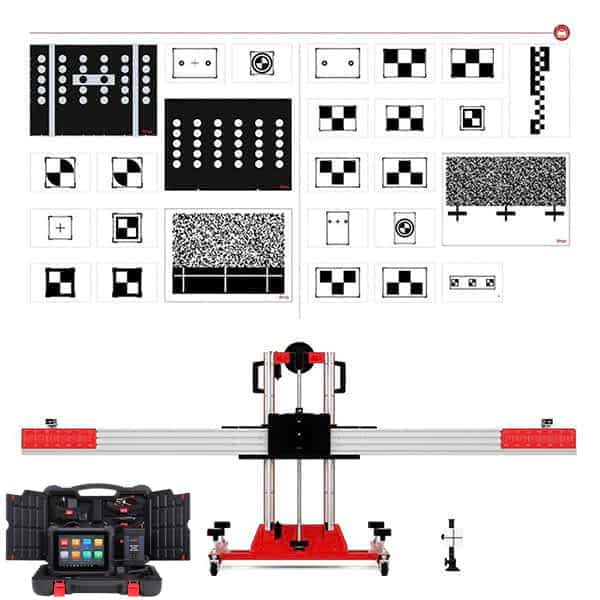

Includes:
Calibration Frame, LDW1, LDW2,LDW3 w/Honda LDW3, Software application (1YR), Digital ADAS. Digital ADAS and  MS909 Tablet.

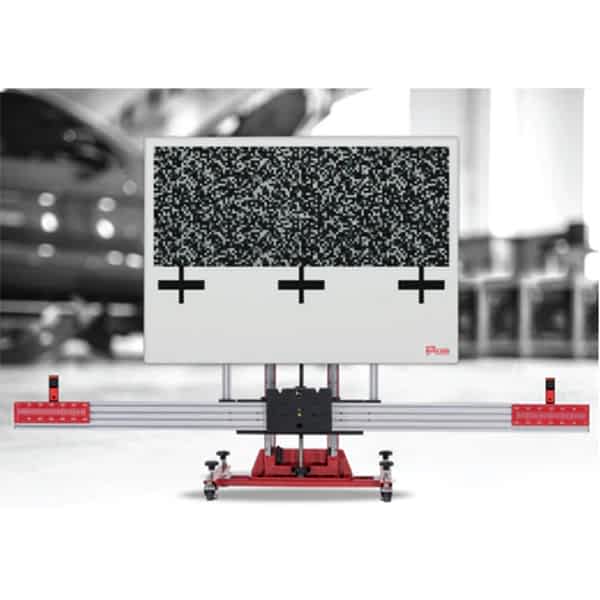

Autel MaxiSYS ADASLDW2.0 Standard Calibration Frame

Adjustable Calibration Frame and Tools.

The Autel calibration frame provides compatible use with vehicle leveling lifts by offering a taller than average extended adjustable height. Easily and precisely adjust calibration frame crossbar during leveling process to ensure vehicle is correctly centered and parallel while facing targets for calibration.

Frame packages do not include software to perform ADAS Calibration. Please order MaxiSys ADAS Tablet or software upgrade separately.

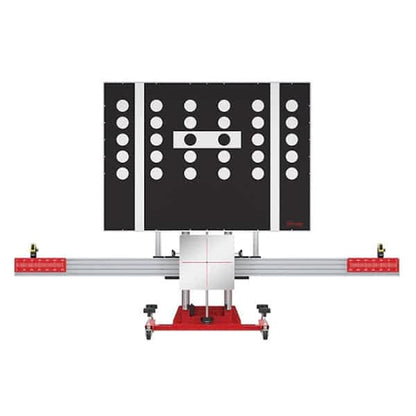

Autel MaxiSYS ADASLDW2.0 Standard Calibration Frame

Precise MaxiSys ADAS Calibration Software (1yr)

Based on the powerful MaxiSys platform, Autel presents the MaxiSys ADAS with the original complete diagnostic functions and comprehensive ADAS calibration. Combined with the service manual, the procedures are presented with graphic instruction.

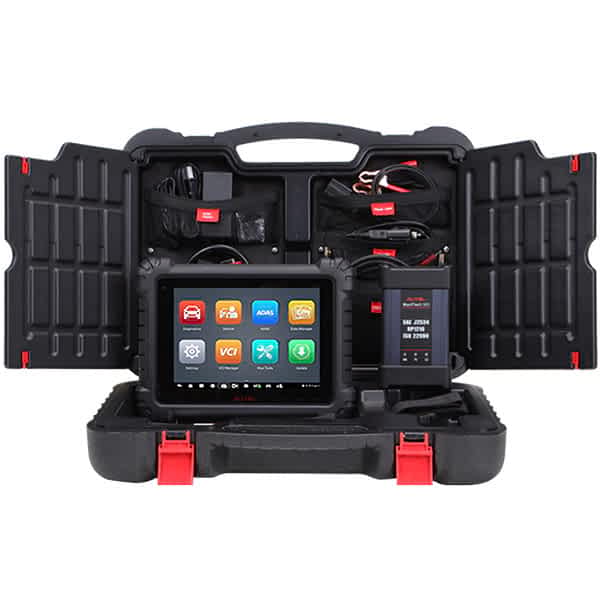

MaxiSys MS909 Tablet

The MaxiSys MS909 features a 10-inch touchscreen tablet with Android 7.0 OS powered by an Octa-core processor (2.3GHz Quad + 1.7GHz Quad), substantial 128GB built-in memory to provide diagnostic guidance and test components to confirm repairs. The MS909 features the new MaxiFlash VCI, a combination VCI and vehicle communication tool providing faster dual Wi-Fi vehicle and network communications. The MS909 features front and rear cameras and a rechargeable Lithium battery providing 8 hours of continuous use to ensure you always have the power to scan.

Autel-MaxiSYS-MS909-Table
WARNING: This product may expose you to chemicals including lead which are known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov

Specifications

Autel AUT061 AULLDW20T ADAS LDW 2.0T

ADAS LDW2.0T Package includes Standard Calibration Frame, the MaxiSYS MS909, ADAS Software Upgrade for calibration of LDW systems on Alpha Romeo, Honda, Genesis, VW, Mercedes, Hyundai/Kia, Nissan, Infiniti, Mazda, Mitsubishi, Mazda, Subaru, Toyota/Lexus vehicles. Includes Pattern Board, Wheel Clamps and Laser Crossbar; Includes DIGITALADAS add-on for faster frame placement with one person; Includes LDW Target Case; Includes Target Board Holder and Include One-year Limited Warranty.

  • Includes Autel Standard Calibration Frame
  • Includes Pattern Board, Wheel Clamps and Laser Crossbar
  • Includes DIGITALADAS Add-on for Faster Frame Placement with One Person
  • Includes MaxiSYS MS909 Tablet
  • LDW Patterns/Targets for Alpha Romeo, Honda, Genesis, VW, Mercedes, Hyundai/Kia, Nissan, Infiniti, Mazda, Mitsubishi, Mazda, Subaru, Toyota/Lexus
  • Includes ADAS Software Upgrade
  • Includes LDW Target Case
  • Includes Target Board Holder
  • Include One-Year Limited Warranty



MaxiSys MS909 Tablet Specifications

Processor
Samsung Exynos 8895V octa-core Processor (2.3GHz Quad-core Mongoose + 1.7GHz Quad-core A53)

Memory
4GB RAM & 128GB On-board Memory

Display
9.7-inch TFT-LCD with 1536 x 2048 resolution & capacitive touch screen

Connectivity
WiFix2 (802.11 a/b/g/n/ac 2x2 MIMO)
BT v.2.1 + EDR
GPS
USB 2.0 (TWO USB HOST Type A, ONE USB mini device)
HDMI 2.0
SD Card (Support up to 256GB)

Camera
Rear: 16 Megapixel, Autofocus with Flashlight
Front: 5.0 Megapixel

Sensors
Gravity Accelerometer, Ambient Light Sensor (ALS)

Audio Input/Output
Microphone
Dual Speakers
3-Band 3.5 mm stereo/standard headset jac

Power and Battery
15000mAH 3.8V lithium-polymer battery
Charging via 12V AC/DC power supply with the temperature between 0°C and 45°C

Input Voltage
12V/3A Adapter

Operating Temperature
0 to 50°C (32 to 122°F)

Storage Temperature
-20 to 60°C (-4 to 140°F)

Dimensions
(W x H x D) 304.4 mm (11.98") x 227.8 mm (8.97") x 42.5 mm (1.67")

Weight
1.66kg (3.66 lb.)

Protocols
DoIP, PLC J2497, ISO-15765, SAE-J1939, ISO-14229 UDS, SAE-J2411 Single Wire Can(GMLAN), ISO-11898-2, ISO-11898-3, SAE-J2819 (TP20), TP16, ISO-9141, ISO-14230, SAE-J2610 (Chrysler SCI), UART Echo Byte, SAE-J2809 (Honda Diag-H), SAE-J2740 (GM ALDL), SAE-J1567 (CCD BUS), Ford UBP, Nissan DDL UART with Clock, BMW DS2, BMW DS1, SAE J2819 (VAG KW81), KW82, SAE J1708, SAE-J1850 PWM (Ford SCP), SAE-J1850 VPW (GM Class2)

Shipping

SHIPPING QUOTE

This Item requires you to fill out a "SHIPPING QUOTE FORM", Please read instructions carefully and fill out all applicable questions. An email will be sent to us with your  items you intend to purchase and the shipping address. We will give you our best Freight rate to your "COMMERCIAL BUSINESS ADDRESS".

Once we receive a quote from the carrier we will email you with a full break down of price for cost of items, Sales Tax and Shipping Cost. At this point if you are happy with the price you will be able to click on a link in the email and it will go straight to our secure site were you can check out securely. If for any reason you need assistance or have concerns that need to be addressed please don't hesitate to call us directly at 706-478-0072. We will be more than happy to assist you.

Documents

Brouchure Autel MaxiSYS ADASLDW2.0T

Video

The MaxiSys ADAS Showing
