Diagnostic Scan Tools
Autel MaxiSys MS908CVII HD Fleet MaxiFlash Elite Programming and Scan Tool in Diagnostic Automotive Tools
- VENDOR:- Autel
- SKU# MS908CVII
What Is MAP PRICE? Click to Read More →
Description

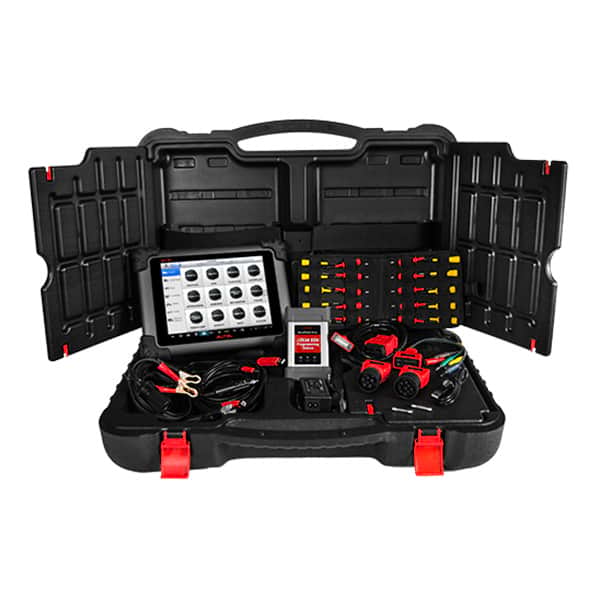

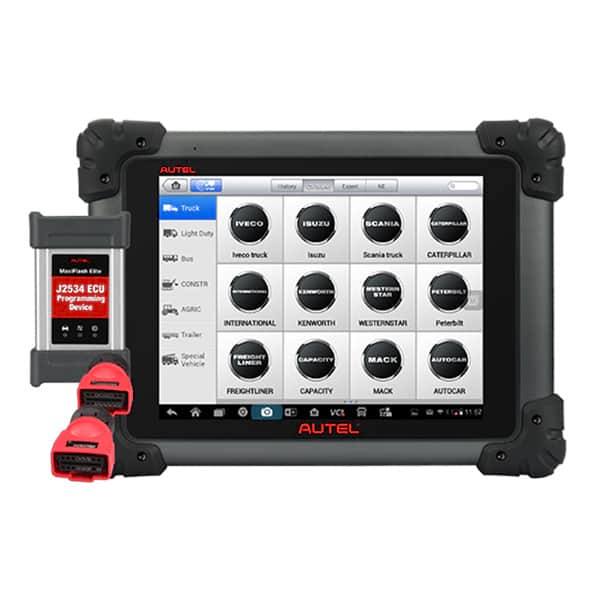

Autel MaxiSys MS908CVII HD Fleet MaxiFlash Elite Programming and Scan Tool in Diagnostic Automotive Tools
Part Number: MS908CVII
As a new member of Autel’s MaxiSys family, the MaxiSys MS908CVII is built on the powerful MaxiSys 908 platform and provides a comprehensive diagnostic solution for virtually all commercial vehicles as well as machines made in North America, Europe and Asia. Offering advanced features and extreme ease-of-use, MaxiSys MS908CVII is the ideal solution for independent repair shops, owner-operators and various sized fleets seeking a single scan tool for all their professional heavy duty needs.
There is no better multifunctional scan tool on the market and number 1 in diagnostic automotive tools.
Hardware:
- Extraordinarily powerful Cortex-A9 quad-core processor

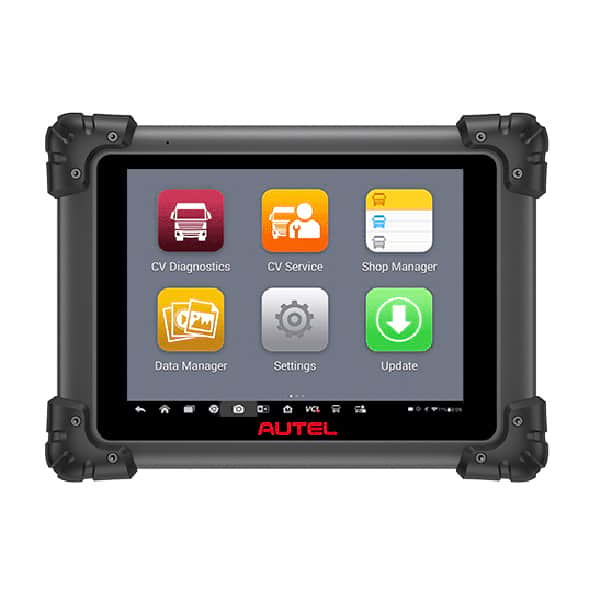

- 9.7” 1024x768 LED-backlit glossy Multi Touch capacitive display with IPS technology
- Internal reliable and fast 32GB Solid State Drive for better performance
- Built-in 5-megapixel rear camera with autofocus and flashlight
- Dual-band (2.4 GHz & 5.0 GHz) 802.11n Wi-Fi to access your favorite web resources
- Unique shop tough ergonomic design features strong rubber protection and housing
- Built-in rechargeable lithium-ion battery for up to 8 hours of continuous operation
- USB, audio and auxiliary ports make it easy to connect accessories
- The VCI connects to the main unit wirelessly with up to 230 meters working range
Software:
- Open source Android Operating System for fast boot-up and multitasking
- Easy and intuitive navigation makes finding what you need simple and fast
- Extensive vehicle coverage for more than 80 US, Asian and European commercial vehicle makes and machines
- Complete capabilities for codes, live data, actuation tests, adaptations and ECU coding
- Displays live data in text, graph, analog and digital gauge for easy data review and analysis
- Configures display options, sets triggers, records and playbacks results with one touch
- Records and playbacks live data to pinpoint troubles of sensors and components
- Cloud-based Data Manager saves customer and vehicle records, scanner data and technician notes
- Remote technical support for convenient demonstration, training and increased customer satisfaction
- Prints out recorded data anytime and anywhere with Wi-Fi technology
- Automatic Wi-Fi updates available in new software releases
Specifications
| Operating System | Android™ 4.0, Ice Cream Sandwich |
| Processor | Samsung Exynos Quad-Core Processor 1.4GHz |
| Memory | 2GB RAM & 32GB On-board Memory |
| Display | 9.7 inch LED capacitive touchscreen with 1024x768 resolution |
| Connectivity | Ethernet: RJ45 Ethernet Connection |
| WiFi (802.11 a/b/g/n) | |
| USB: 2.0 | |
| BT v.2.1 + EDR | |
| SD Card (Support up to 32GB) | |
| HDMI | |
| Camera (rear) | Rear-facing, 5.0 Megapixel, AF with Flashlight |
| Sensors | Gravity Accelerometer, Ambient Light Sensor (ALS) |
| Audio Input/Output | Microphone |
| Dual Speakers | |
| 4-Band 3.5 mm stereo/standard headset jack | |
| Power and Battery | 11000 mAh 3.7 V lithium-polymer battery Charging via 12 V AC/DC power supply |
| Input Voltage | 12 V (9-24 V) |
| Power Consumption | 6.5 W |
| Operating Temp | -10 to 55°C (14 to 131°F) |
| Storage Temp | -20 to 70°C (-4 to 158°F) |
| Housing | Strong plastic housing with protective rubber boot |
| Dimensions | 300 mm (11.81”) x 220 mm (8.66”) x 50 mm (1.97”) |
| Weight | NW: 1.42 kg (3.13 lb.), GW: 8.052 kg (17.75 lb.) |
| Protocols | SAE J1939; SAE J1708; Manufacturer customized J1939; Manufacturer customized J1708; KWP; VPW; UDS-CAN; CDL |
