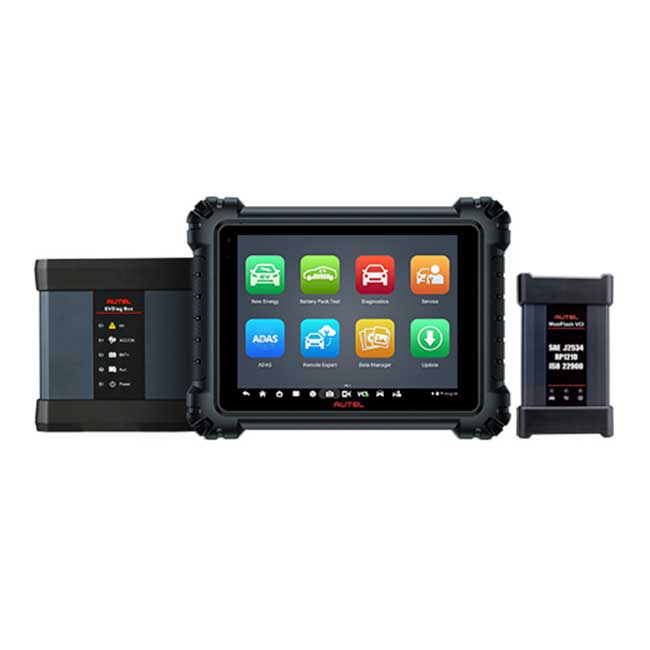

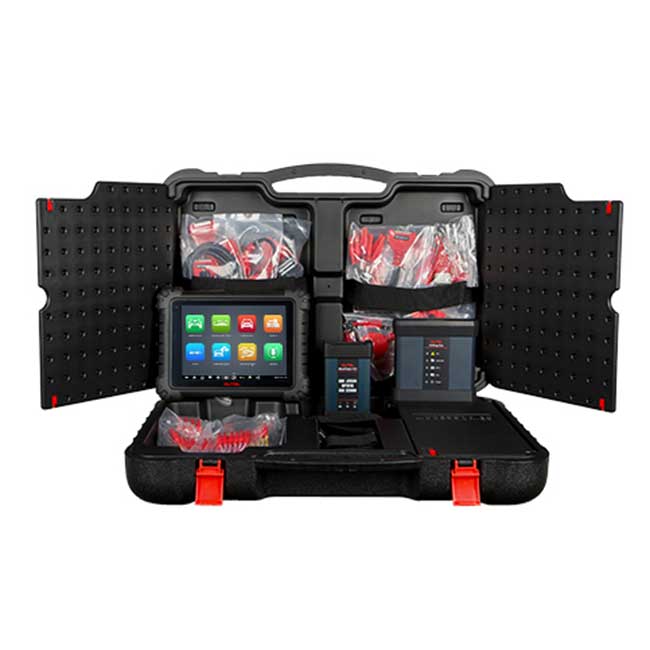

Autel MaxiSYS MS909EV Diagnostic Tablet for electric, gas and diesel, and hybrid vehicles
Autel MaxiSYS MS909EV Diagnostic Tablet for electric, gas and diesel, and hybrid vehicles
BRAND: Autel
SKU: MS909EV
In Stock
Couldn't load pickup availability
Autel MaxiSYS MS909EV Diagnostic Tablet for electric, gas and diesel, and hybrid vehicles
Part Number: MS909EV
Intelligent EV Diagnostics with MaxiFlash VCI/J2534
The MaxiSys MS909EV is a new generation of intelligent diagnostics for electric, hybrid, gas and diesel vehicles. With its dedicated EVDiag Box, MaxiFlash VCI, and detailed graphics, system information, and step-by-step instructions, the MaxiSYS 909EV provides a comprehensive approach to advanced electric and hybrid vehicle diagnostics.
- Advanced diagnostics for U.S., European and Asian electric, gas and diesel, and hybrid vehicles
- Rapid analysis of EV high-voltage system including ability to read and erase codes and view live data
- Comprehensive diagrams of high-voltage system block, components and sockets; Step-by-step system disassembly instructions
- State of Charge and State of Health analysis for true battery condition
- Battery pack analysis can be performed via OBD or directly with included specialty cables and jumpers; the 909EV screen displays detailed graphics and in-depth connection guidance to provide safe and secure testing.
- Automatic system and software updates with real-time push message notifications via internet
- Interactive Data Logging sessions enable direct contact with Autel Support for first-hand troubleshooting of diagnostic bugs and error
- One-stop multitasking designed for ideal management of shop operations to keep all data files, customer info, and vehicle records organized
- Cloud-based Data Manager saves customer and vehicle records, scanner data and technician notes
Accessories:
There is no better multifunctional scan tool on the market and number 1 in diagnostic automotive tools.
Prop 65 Warning
WARNING: This product can expose you to chemicals including Lead which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov.
| Operating System | Android 7.0 |
| Processor | Qualcomm 660 Octa-core Processor (2.2GHz Quad-core A73 + 1.8GHz Quad-core A53) |
| Memory | 4GB RAM & 128GB On-board Memory |
| Display | 9.7-inch TFT-LCD with 1536 x 2048 resolution & capacitive touch screen |
| Connectivity | Dual Wi-Fi (802.11 a/b/g/n/ac 2x2 MIMO) |
| BT V5.0 + BR/EDR | |
| GPS | |
| USB 2.0 (2 USB TYPE-A ports and a Mini USB port) | |
| HDMI 2.0 | |
| SD Card (Support up to 256GB) | |
| Camera | Rear: 16 Megapixel, Autofocus with Flashlight |
| Front: 16 Megapixel | |
| Sensors | Gravity Accelerometer, Ambient Light Sensor (ALS) |
| Audio Input/Output | Microphone |
| Dual Speakers | |
| 3-Band 3.5 mm stereo/standard headset jac | |
| Power and Battery | 15000mAH 3.8V lithium-polymer battery |
| Charging via 12V AC/DC power supply with the temperature between 0°C and 45°C | |
| Input Voltage | 12V/1.3A Adapter |
| Operating Temperature | 0 to 50°C (32 to 122°F) |
| Storage Temperature | -20 to 60°C (-4 to 140°F) |
| Dimensions(W x H x D) | 304.4 mm (11.98") x 227.8 mm (8.97") x 42.5 mm (1.67") |
| Weight | 1.66kg (3.66 lb.) |
| Protocols | DoIP, PLC J2497, ISO-15765, SAE-J1939, ISO-14229 UDS, SAE-J2411 Single Wire Can(GMLAN), ISO-11898-2, ISO-11898-3, SAE-J2819 (TP20), TP16, ISO-9141, ISO-14230, SAE-J2610 (Chrysler SCI), UART Echo Byte, SAE-J2809 (Honda Diag-H), SAE-J2740 (GM ALDL), SAE-J1567 (CCD BUS), Ford UBP, Nissan DDL UART with Clock, BMW DS2, BMW DS1, SAE J2819 (VAG KW81), KW82, SAE J1708, SAE-J1850 PWM (Ford SCP), SAE-J1850 VPW (GM Class2) |
