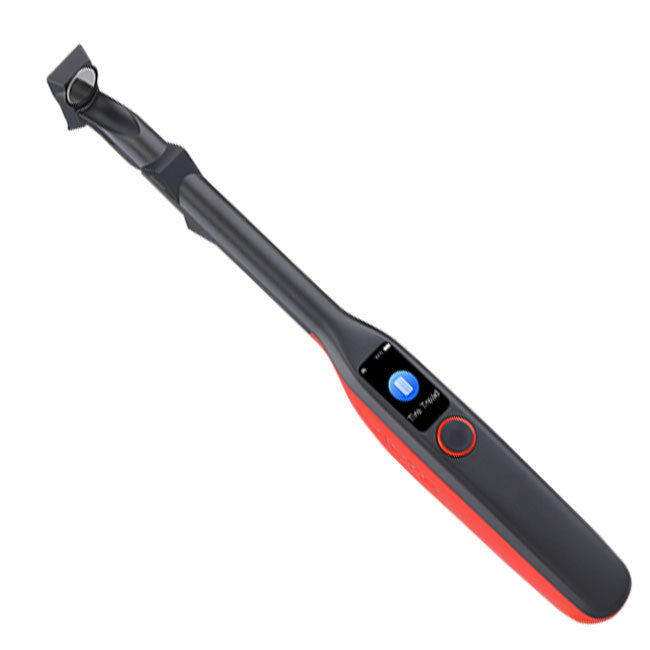

Autel MaxiTPMS TBE100 Tire Tread and Brake Disc Wear Examiner
- VENDOR:- Autel
- SKU# TBE100
Autel MaxiTPMS TBE100 Tire Tread and Brake Disc Wear Examiner.
Part Number: TBE100
The MaxiTPMS TBE100 is a laser-enabled tire tread depth & brake disc wear examiner that provides users with quick and accurate wear measurements. Measure brake disc wear without having to remove tires. It features a 0.95” AMOLED touchscreen, displaying measurement data in real-time.
TBE100 can work with MaxiTPMS ITS600 to access detailed replacement & maintenance suggestions for quick tire service, document tire wear and damage, and scan Tire Identification Number (TIN). Use the tool separately, or with ITS600 to view and print detailed TPMS reports.
- Tire tread depth & brake disc wear check in one tool
- Laser measurement with 0.1mm accuracy
- No need to remove the wheel during measurement
REAL-TIME TIRE HEALTH ANALYSIS

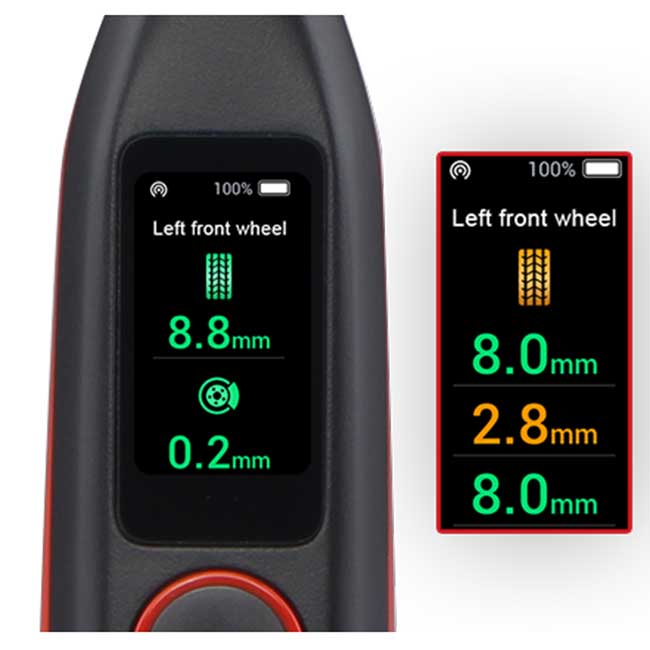

- Real-time measurement data on touchscreen
- Full tread measurement
- Quick Check both tire tread & brake disc
- Uneven wear analysis (Requires ITS600)
- Replacement & maintenance suggestions (Requires ITS600)
COMPREHENSIVE TEST REPORT

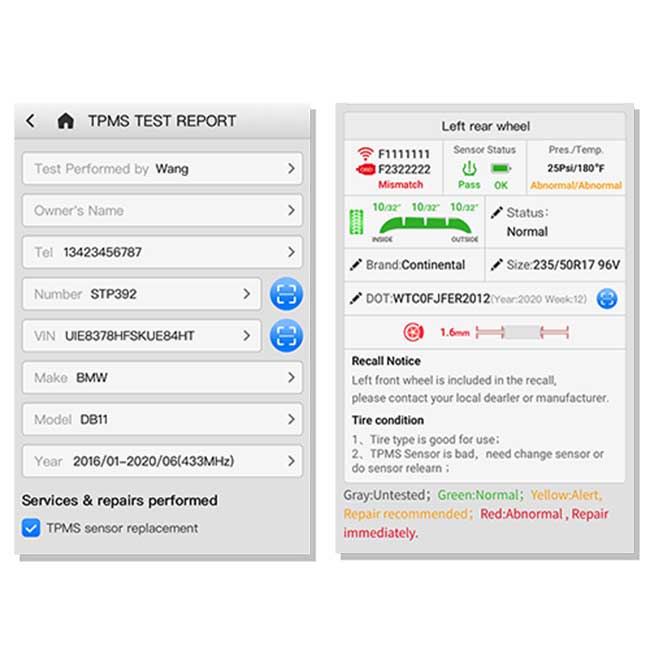

- Comprehensive Test Report: TPMS health, Tire tread depth & brake disc wear characteristics & Repair tips (Requires ITS600)
What is included ?
|Processor||4x ARM Cortex-A35 (1.5 GHz)|
|Memory||1GB RAM LPDDR3 & 4GB ROM|
|Display||0.95-inch AMOLED capacitive touchscreen with 120x240 resolution|
|• USB 2.0, Type C|
|Camera||CMOS WXGA, 1 megapixel, 30fps|
|Audio output||Output: Beep|
|Power and Battery||• 3.8 V/1400 mAh lithium-ion battery|
|• Charges via 5 V AC/DC power supply|
|Battery Charging Input||5 V/1.5 A|
|Power Consumption||200 mA (AMOLED on with default brightness) @3.7 V|
|Operating Temp.||-10 to 45°C(14 to 113°F)|
|Storage Temp.||-20 to 60°C (-4 to 140°F)|
|Dimensions (W x H x D)||277.0 mm (10.9”) x 28.7 mm (1.13”) x 33.5 mm (1.32”)|
|Net Weight||138 g (0.31 lb.)|
|Protocols||ISO9141-2, ISO14230-2,ISO15765, K/L-Line, Flashing Code,|
|SAE-J1850 VPW, SAE-J1850PWM, ISO11898 (Highspeed, Middlespeed,|
|Lowspeed and Singlewire CAN, fault-tolerant CAN), SAE J2610,GM UART,|
|UART Echo Byte Protocol, Honda Diag-H Protocol, TP2.0, TP1.6|
