Autel MaxiTPMS TS900 Advanced 3-in-1 TPMS Diagnostic Tool with Android OS and Special Functions
Autel MaxiTPMS TS900 Advanced 3-in-1 TPMS Diagnostic Tool with Android OS and Special Functions
BRAND: Autel
SKU: TS900
In Stock
Couldn't load pickup availability
Autel MaxiTPMS TS900 Advanced 3-in-1 TPMS Diagnostic Tool with Android OS and Special Functions
Part Number: TS900

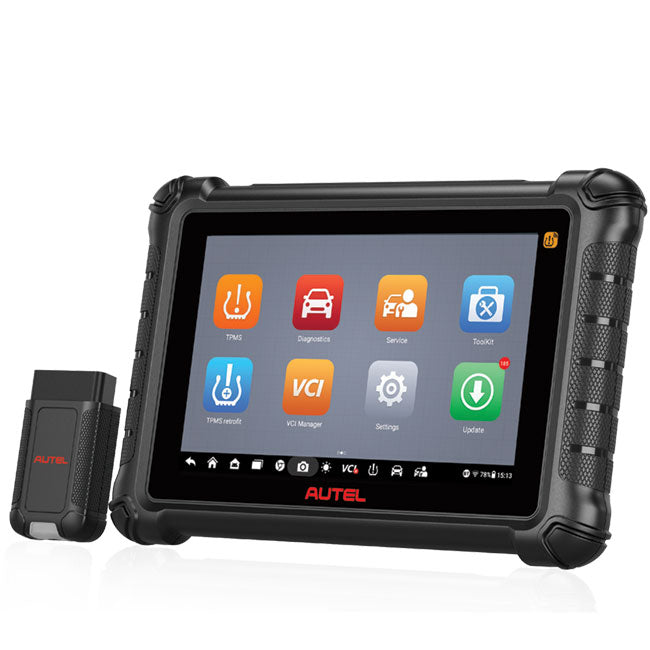

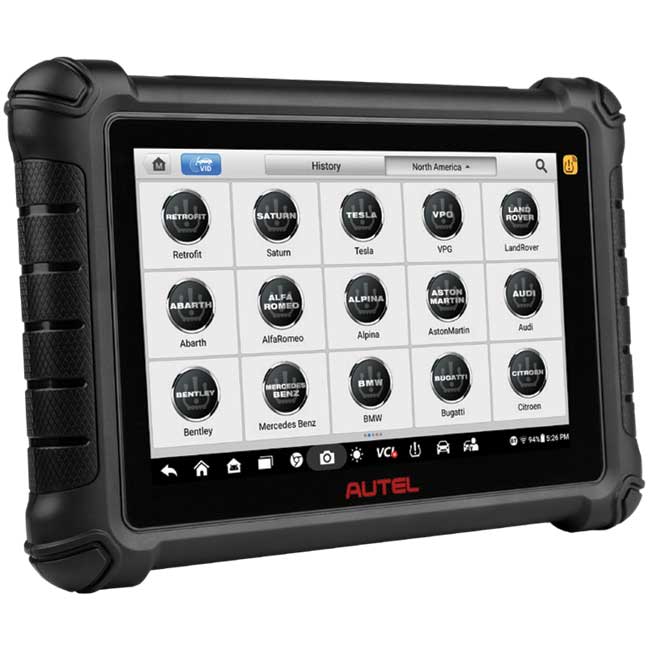

The Autel MaxiTPMS TS900 is a state-of-the-art tool for automotive professionals, offering a comprehensive solution for TPMS (Tire Pressure Monitoring System) services, diagnostics, and vehicle maintenance. This robust 8-inch touchscreen tablet operates on Android 11, providing a user-friendly interface. It excels in activating, reading, and relearning all known TPMS sensors, including those specifically for Tesla vehicles, and is capable of programming the Autel 1-Sensor, which covers about 99% of TPMS sensors on modern vehicles.
Moreover, the TS900 is equipped with extensive diagnostic capabilities. It can perform all-system diagnostics, which includes reading and clearing codes, and viewing freeze frame and live data. Advanced features such as active tests and special functions are also supported, along with the ability to generate, print, and share pre- and post-scans, making it an invaluable tool for a wide range of diagnostic needs.
In terms of service functions, the TS900 is unparalleled, offering direct access to over 40 different service tasks, including but not limited to oil and service lights reset, electronic parking brake reset, brake bleeding, airbag reset, and occupancy seat calibration. This wide array of functions makes it a comprehensive tool for vehicle servicing and maintenance.
From a technical standpoint, the TS900 is powered by a quad-core Arm Cortex-A55 processor (1.8 GHz), and comes with 4GB of operating memory and 64GB of storage. It also features an 8MB rear camera and multiple connectivity options such as USB Type-C, USB 2.0, Wi-Fi, Bluetooth, and Mini SD card. The device's 3.7 V/7700 mAh lithium-polymer battery ensures around 7 hours of continuous usage.
Physically, the TS900 is compact, measuring 259.87 mm x 168.98 mm x 33.60 mm, and weighs about 998 g (2.2 lbs). It operates effectively in a temperature range of 0 to 50°C (32 to 122°F) and supports a comprehensive range of protocols, suitable for a variety of vehicles, including U.S., Asian, and European models from 1996 and newer.
The MaxiTPMS TS900 comes with a one-year limited warranty and offers free software updates for the TPMS for the lifetime of the tablet, ensuring that users stay up to date with the latest vehicle models and technologies.
Prop 65 Warning
WARNING: This product can expose you to chemicals including Lead which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov.
- Device Type: 8-inch TPMS, Diagnostics, and Service touchscreen tablet.
- Operating System: Android 11.
- Processor: RK3566 Quad-core Arm Cortex-A55 processor (1.8 GHz).
- Memory: 4GB RAM & 64GB ROM.
- Display: 8-inch LCD screen with a resolution of 1280 x 800.
- Rear Camera: 8MB.
-
Connectivity Options:
- USB Type-C.
- USB 2.0.
- Wi-Fi.
- Bluetooth.
- Mini SD card slot (supports up to 64GB).
- Sensors: Ambient light sensor for auto-brightness adjustment.
- Audio: Buzzer output, no audio input.
- Battery: 3.7 V/7700 mAh lithium-polymer battery.
- Battery Life: Approximately 7 hours of continuous use.
- Charging Input: 5 V/3 A.
- Power Consumption: Approximately 600 mA (LCD on with default brightness, Wi-Fi on) @3.7 V.
- Operating Temperature: 0 to 50°C (32 to 122°F).
- Storage Temperature: -10 to 60°C (14 to 140°F).
- Operating Humidity: 5% – 95% non-condensing.
- Dimensions: 259.87 mm (10.23") x 168.98 mm (6.65") x 33.60 mm (1.32").
- Weight: 998 g (2.2 lbs).
-
Protocols Supported:
- ISO9141-2, ISO14230-2, ISO15765.
- K/L-Line, Flashing Code.
- SAE-J1850 VPW, SAE-J1850PWM.
- ISO11898 (High-speed, Middle-speed, Low-speed and Single-wire CAN, fault-tolerant CAN).
- SAE J2610, GM UART, UART Echo Byte Protocol.
- Honda Diag-H Protocol, TP2.0, TP1.6.
- DoIP, CAN FD.
- Warranty: One-year limited warranty.
- Software Updates: Free TPMS software updates for the life of the tablet.
