Inspection Videoscope

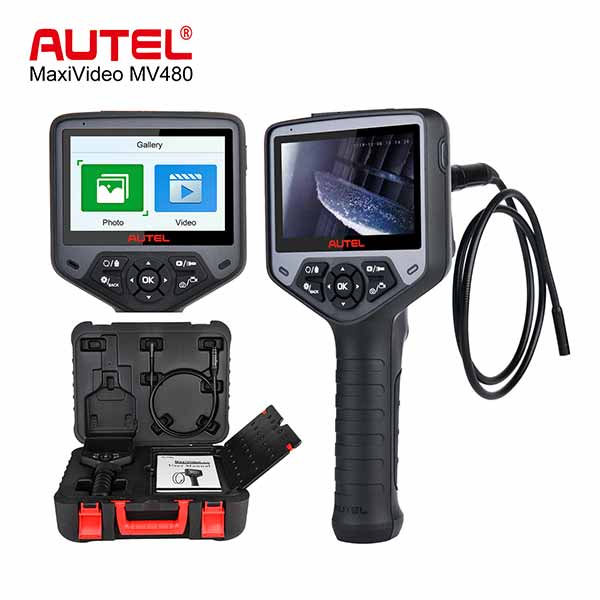

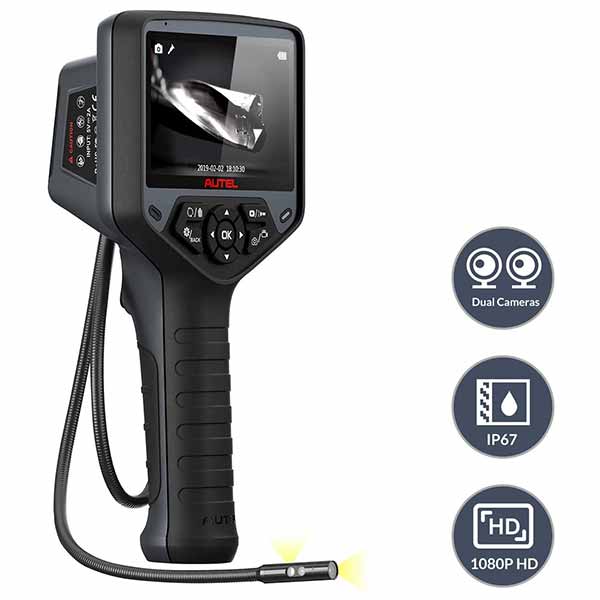

Autel MaxiVideo MV480 Digital Inspection Videoscope Specialty Tool

  • VENDOR:-   Autel
  • SKU#   MV480
In Stock
  • $355.00
    Unit price per

- +
Only 0 left!




Important Shipping Information:-
• Orders received on Fridays after 11am EST will be processed the next business day
All orders shipped to a RESIDENTIAL ADDRESS will be subject to Additional charges from all carriers at this time.
What is LIMITED ACCESS - Commercial / Non-Commercial / Farms Click Here to Read More




Description

Autel MaxiVideo MV480 Inspection Camera, 1080P HD Industrial Endoscope Video Scope, with 4.1-inch Full Color LCD, Videoscope with Audio Annotation, Dual Cameras, 360°Rotation, 7 X Zoom.

Part Number: MV480

The MaxiVideo MV480, the next generation of digital videoscope, is ideal for inspecting difficult-to-reach areas with its semi-rigid flexible cable and 10-level adjustable LED light. It features dual front and side cameras with 1920×1080 high resolution, a 4.1" 1200×720 full color LCD display, an 8.5mm camera probe, and a built-in 2600mAh battery with up to 4 hours continuous use. This multipurpose videoscope is an economical solution to inspect machinery, facilities, and infrastructure in the safest, quickest and most cost-effective manner possible.

Features:

  • High resolution images and videos (1920 x 1080)
  • Dual front and side cameras for wider viewing angle
  • 4.1-inch full color LCD display (1200 x 720)
  • 1-button quick image capture and video recording
  • 70-degree field of view for expanded viewing angle
  • Adds audio annotation for detailed review
  • Micro HDMI-output enables streaming to larger monitors
  • Freeze-frame camera stills or video recording
  • On-screen horizontal/vertical reverse
  • Records and plays back images and video clips
  • 7X digital zoom for increased viewing
  • 8GB Micro SD card (included), supports up to 128GB
  • Mini-USB cable (included) for uploading images and videos
  • More than 10,000 lux, adjustable 10-level LED illumination
  • Flashlight for higher visibility in low-light environment
  • Built-in, rechargeable 2,600 mAh battery for 4 hours of continuous use
  • 1m (39.4") semi-rigid, flexible watertight cable
  • Includes magnet and hook cable accessories
  • 8.5mm (0.33’’) probe fits most spark plug holes
  • Compatible with 5.5mm (0.22’’) camera head (not included)
WARNING: This product may expose you to chemicals including lead which are known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov

Specifications

Recommended use Indoor
Optimal viewing Distance 0.79" to 2" (2 cm to 5 cm)
Image capture JPG images (1920 x 1080 pixels)
MP4 videos (1920 x 1080 pixels)
Screen type display 4.1" TFT LCD
Display resolution 1200 x 720 pixels
Power supply Built-in rechargeable lithium-ion battery pack (3.7V/2600 mAh)
Tested battery life Approximately 4 hours of continuous use
Dimensions 243 x 116 x 122mm (9.6" x 4.6" x 4.8")
Weight 0.422 kg (0.93lbs)
Recording medium Micro SD card (8GB Standard/128GB Max)
Image controls Zoom, low light vision
Lighting Fully adjustable LED, Flashlight
Cable reach 1m (39.4")
Imager heads 8.5mm (0.33"), 2 megapixel (1920 x 1080 pixels)
Waterproof To a depth of 1m (39.4") (Imager heads and cable only)
Additional ports TF, Mini USB, Micro HDMI
Operating temp Main unit: 14°F to 122°F (-10°C to 50°C)
Cable: 14°F to 140°F (-10°C to 60°C)
Storage temp -4°F to 158°F (-20°C to 70°C)
Operating humidity 5% - 95% non-condensing

Comparison OF MaxiVideo MV500, MV480 and MV460

  MaxiVideo MaxiVideo MaxiVideo
MaxiVideo MV500 MV480 MV460
MV400
High resolution and full color digital LCD display 3.5" (320×240) 5” (1280×720) 4.1" (1200×720)
Record and play back high resolution still images and videos 640×480 1280×720 1920 x 1080
Wireless monitor enables remote viewing -- --
Touchscreen for convenient operation -- --
Single button for quick photo and video recording -- --
Add audio annotation for detail presentation --
On-screen photo editing and markup -- --
Dual cameras see straight ahead or at a 90° angle --
Digital zoom for detailed viewing
View objects as close as 1"
BOn-screen horizontal/vertical reverse
On-screen 90° clockwise rotation --
Built-in & adjustable LED illuminates viewing area
HDMI port for monitor view --
Mini USB connector for uploading images and videos
1 m long semi-rigid flexible watertight shaft
Narrow probe diameter available in both 5.5 mm and 8.5 mm 8.5 mm 8.5mm (5.5mm Optional)
Micro SD card slot for greater memory capacity
Oil and scratch resistant tempered glass lens
Ergonomic and durable tool housing
Built-in rechargeable Li-ion battery
Multilingual support
Water Resistant Camera head

Shipping

This is a Plus Shipping item which only can be shipped to destinations within the 48 contiguous United States. Alaska, Hawaii, and any/all US territories and international orders are excluded.

Price will be calculated at check-out.

UPS Shipping rates are calculated based on actual and dimensional weights. To find your rate, add the item to your cart and then enter your zip code into the right hand side of the shopping cart. If your total UPS order is over 120 lbs, the system will not calculate charges.

*NoteIf you are having trouble checking out, please call us at  (706) 478-0072.

OR

If you have a special shipping request you need arranged, please email
 or call us.

Please Review our Terms of Service, Shipping Policy, Return & Refund, Policy Pages.

Documents

Autel MaxiVideo MV480 Sales Flyer

Autel MaxiVideo MV480 User Manual
