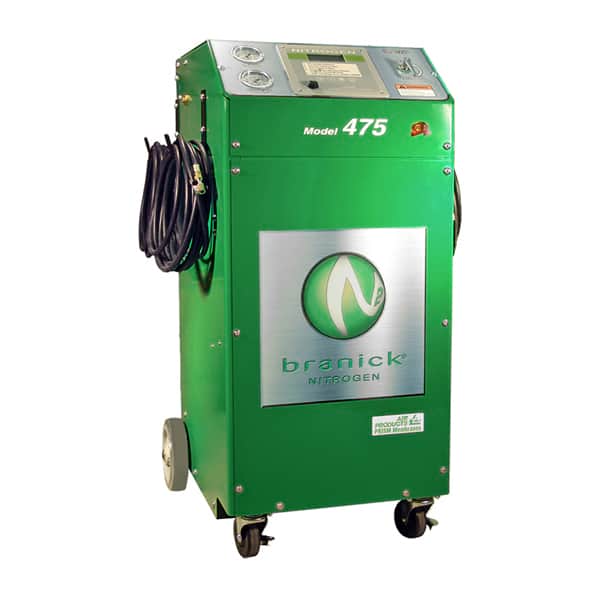

Branick 475 Mobile Nitrogen Generator System PN 00-0085

Description

Branick 475 Mobile Nitrogen Generator System PN 00-0085

Part Number: 00-0085

Our mobile systems deliver speed and high purity while allowing you to stay on the go. The 475 comes with a 30 gallon tank and can convert a passenger vehicle without being tethered to an air source. Four hoses with clip chucks are standard, though there are six conversion ports capable of handling duallies or spares. Because of the PRISM Membrane, the system also acts as an air dryer, which means the system produces a more consistent purity over the lifespan of the machine. And, if you want to keep your mobile system mobile, but also want nitrogen at your tire changing location, our mobile units have an auxiliary port on the back so you can fill any size storage tank for extra capacity. It's like having two systems for the price of one.

Specifications

• Air Input Range 100 to 175 psi
• Air Input*            7.8 cfm
• Nitrogen Output*            4.0 cfm
• Nitrogen Purity Adj 95% - 99.5%
• Operating Temperature                40° to 150° F
• Inlet Port (Female)          3/8” NPT
• Outlet Port (Female)      3/8” NPT
• Nitrogen Purity Port       Yes
• Auto Shut-Off   Yes
• Pre-Filters           2
• N2 Outlet Pressure Gauge           Yes
• Air Inlet Pressure Gauge               Yes
• Weight 350 lbs
• Hoses    4 Hooks
• Inflator Set Press. Range              5 psi to 145 psi
• Inflator Accuracy              +/-0.5% Full Scale
• Display Increments         1 psi
• Power Supply    12v DC SLA
• Rechargeable    Yes
• Dimensions (inches)       29 D X 29 W X 48 H
• Weight (lbs)       380

• 30 Gallon Tank
• Six conversion inflator ports
• PRISM Membrane
• 7-Year membrane warranty

• Faster Inflation times
• Fill multiple tires at once; capable of handling duallies or spaces
• Acts as air dryer to produce more consistent purity
• Longest Warranty term on the market!

Shipping

This Item Qualifies for FREE LTL SHIPPING  (via Truck)  it applies only to destinations within the 48 contiguous United States. Alaska, Hawaii, and any/all US territories and international orders are excluded.

• Lift Gate Is Required.(+$150.00)
• I have a forklift for unloading Freight at My Business location
• I have a way of unloading Freight at my location
• Deliver to local freight terminal for pickup.

Please select one of the choices above BEFORE adding to the cart!

PLEASE NOTE:
This item ships by truck. If you Require to ship to a Non-Commercial Address, please email
or call (706) 478-0072 us so we can give you an updated shipping Quote.
