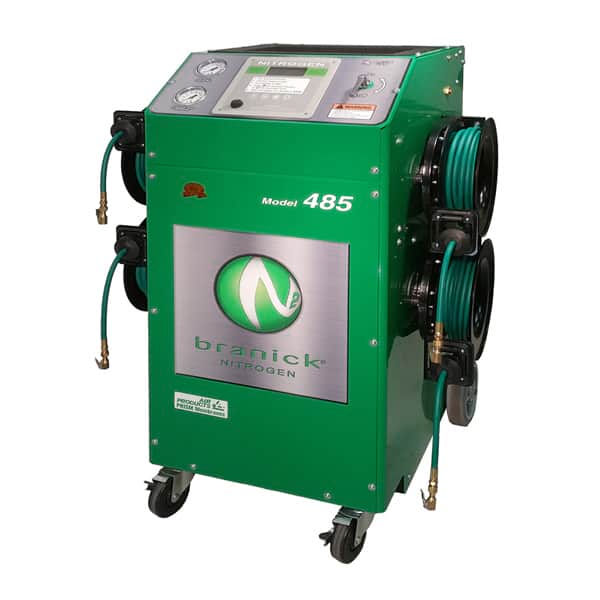

Branick 485 Mobile Nitrogen Generator System w/Hose Reels PN 00-0107
Branick 485 Mobile Nitrogen Generator System w/Hose Reels PN 00-0107
BRAND: Branick
SKU: 00-0107
Ships out in 2-3 Weeks
Couldn't load pickup availability
Branick 485 Mobile Nitrogen Generator System w/Hose Reels P/N 00-0107
Part Number: 00-0107
The Branick 485 Mobile Nitrogen Generator System is a self-contained, on-the-go solution for fast tire inflation and high-purity nitrogen service. Built for mobile technicians and fleet applications, it includes hose reels and a 30-gallon tank so you can convert a passenger vehicle without being tethered to an external air source.
Four clip-chuck hoses are standard, and six conversion inflator ports provide the flexibility to handle duallies or spares. The PRISM Membrane also acts as an air dryer, helping maintain consistent nitrogen purity over the life of the system. An auxiliary rear port lets you fill an external storage tank for added capacity at your tire service location—delivering mobile convenience with the option to expand your nitrogen supply when needed.
Prop 65 Warning
WARNING: This product can expose you to chemicals including Lead which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov.
- Air Input Range: 100 to 175 psi
- Air Input*: 7.8 cfm
- Nitrogen Output*: 4.0 cfm
- Nitrogen Purity (Adjustable): 95% - 99.5%
- Operating Temperature: 40°F to 150°F
- Inlet Port (Female): 3/8 in. NPT
- Outlet Port (Female): 3/8 in. NPT
- Nitrogen Purity Port: Yes
- Auto Shut-Off: Yes
- Pre-Filters: 2
- N2 Outlet Pressure Gauge: Yes
- Air Inlet Pressure Gauge: Yes
- Weight: 380 lbs
- Hoses: 4 reels
- Inflator Set Pressure Range: 5 psi to 145 psi
- Inflator Accuracy: +/-0.5% Full Scale
- Display Increments: 1 psi
- Power Supply: 12V DC SLA
- Rechargeable: Yes
- Dimensions (in.): 32 D x 29 W x 48 H
- Weight (lbs): 460
Features
- 30-gallon tank
- Six conversion inflator ports
- PRISM Membrane
- 7-year membrane warranty
Benefits
- Faster inflation times
- Fill multiple tires at once; capable of handling duallies or spares
- Acts as an air dryer to help produce more consistent purity
- Longest warranty term on the market!
