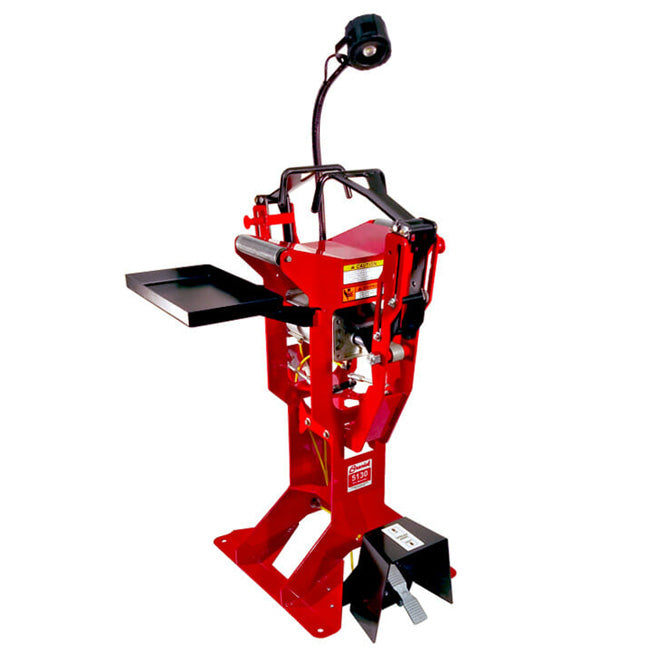

Branick 5130 Tire Spreader for Passenger Cars & Light Trucks Tires PN 00-0172
Branick 5130 Tire Spreader for Passenger Cars & Light Trucks Tires PN 00-0172
Ships within (1 - 3 Business Days)
SKU: 00-0172
Description
The Branick 5130 Tire Spreader is an air-powered solution designed specifically for passenger and light truck tires. It features foot-operated controls for hands-free operation and a stable base that can be bolted to the floor for added safety. A compact footprint helps conserve shop space, while a reversible tool tray keeps your tools within easy reach. The unit includes a spring-loaded pin adjustment system and a high-intensity, flexible-arm LED inspection light that meets RMA compliance standards. Whether you're inspecting or repairing, the 5130 delivers durability, efficiency, and ease of use. Made in the USA and backed by a one-year manufacturer warranty.
Key Features
- Air-powered spreader for passenger and light truck tires

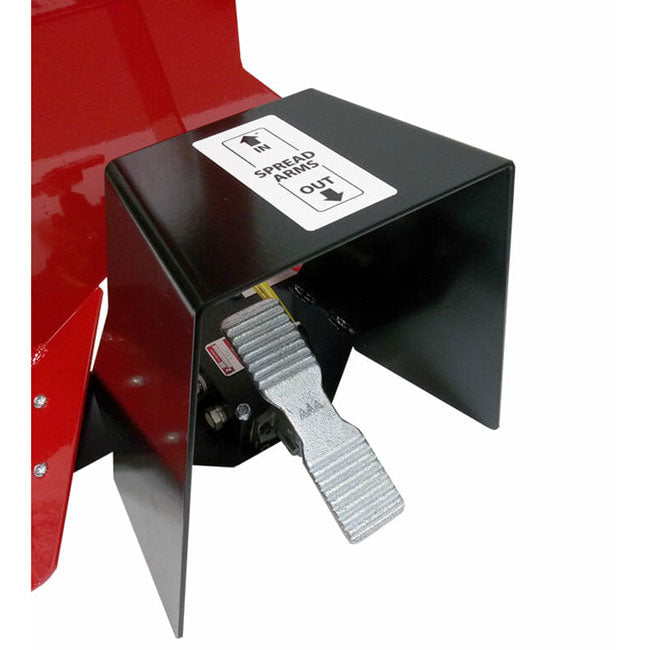

- Foot-operated controls for hands-free operation
- Spring-loaded pin adjustment with four height settings
- Flexible-arm LED inspection light (RMA-compliant, 200+ candles)
- Debris-blocking cylinder guard
- Zinc-plated rollers for easy tire rotation

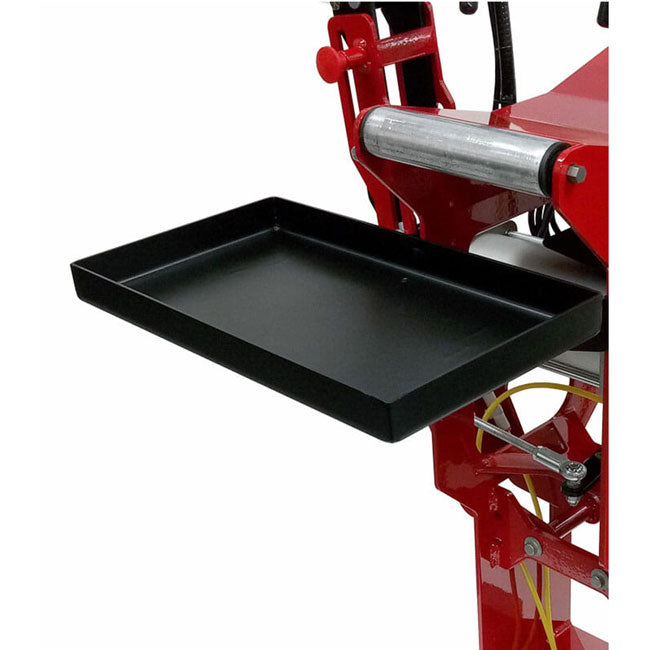

- Reversible tool tray for operator convenience
- Compact footprint to minimize space requirements
- Stable base can be bolted to floor
- One-year manufacturer warranty
- Made in the USA
Operating Instructions
- Move spread hooks out from tire platform.
- Position tire on tire platform. Steady tire with hand and insert spread hooks over tire beads.

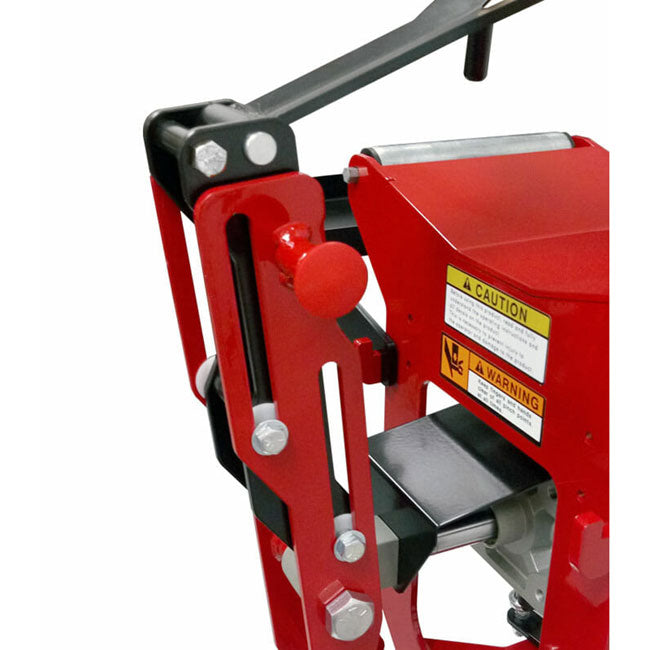

- Adjust spread hooks to proper height for tire being repaired. To adjust, pull quick pin out, move hook arm up/down to one of four positions, then release pin. Ensure both arms are at the same height.
- Spread tire to desired width using foot valve and position light for visibility. If tire lifts off platform, lower the spread hook arms.
- To rotate tire, release pressure on spread hooks and rotate tire using rollers.
- After inspection/repair, move light away, release spread hooks using foot valve, and remove hooks from tire bead.
Prop 65 Warning
WARNING: This product can expose you to chemicals including Lead which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov.
Specifications
- Product Number: Branick 5130
- Tire Cross Section: Up to 14 in.
- Bead Diameter: Up to 22.5 in.
- Base Dimensions: 18 in. x 25 in.
- Overall Dimensions: 27 in. x 25 in. x 40 in.
- Power: Air-powered
- Lighting: RMA-compliant LED
- Made in: USA
