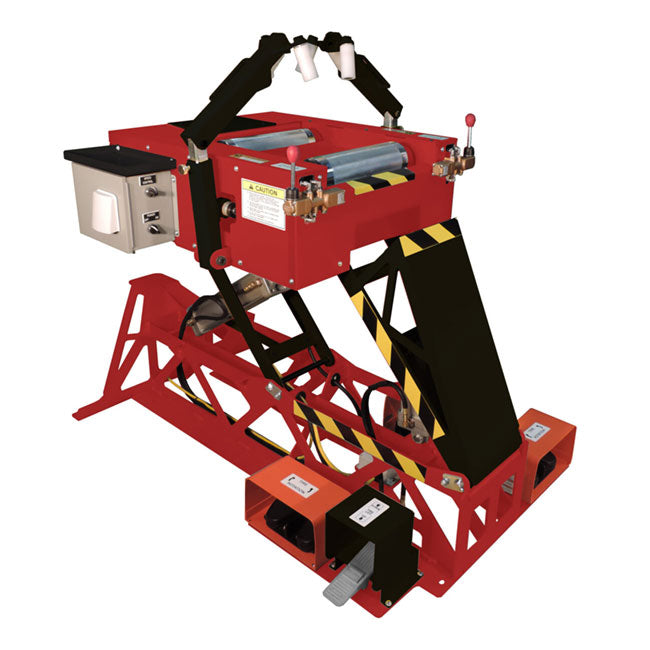

Branick 5600M Tire Spreader w/Riser for Monorail - Electric Drive PN 00-0175
Branick 5600M Tire Spreader w/Riser for Monorail - Electric Drive PN 00-0175
BRAND: Branick
SKU: 00-0175
In Stock
Couldn't load pickup availability
Branick 5600M – Adj. Height Tire Spreader (w/Riser for Monorail) - Electric Drive
The 5600M includes all the features of the standard 5600, but it comes with a built-in riser designed for monorail systems. This riser raises the working height of the unit, allowing tires suspended from overhead rail systems to be lowered directly into place, making it ideal for shops with ceiling-mounted tire transport equipment.
Branick 5600PT – Adj. Height Tire Spreader w/Pass-Through
The 5600PT is equipped with an integrated pass-through ramp that allows tires to roll through the machine from one side to the other. This configuration is perfect for high-volume shops that need continuous, streamlined tire movement without lifting or reversing tires after each service.
What is a riser?
A riser is a structural extension that raises the overall height of the tire spreader. In the 5600M model, it allows the machine to align with overhead monorail systems commonly used in commercial and industrial tire handling environments.
What is a pass-through ramp?
A pass-through ramp is a full-length tire ramp that allows tires to be loaded from one end of the spreader and rolled out the other side. This feature, found on the 5600PT model, increases efficiency by enabling continuous workflow and reducing manual handling.
Prop 65 Warning
WARNING: This product can expose you to chemicals including Lead which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov.
- Product Number: Branick 5600M
- Part Number: 00-0175
- X Section Width: Up to 18 in. (455 mm)
- Bead Diameter: Up to 24.5 in.
- Working Height: Adjustable from 15 in. to 32 in.
- Footprint (Standard): 40 in. x 58 in.
- Footprint with Light Stand: 40 in. x 67 in.
- Footprint with Pass-Thru: 40 in. x 83 in.
- Riser Type: Monorail-Compatible Riser Included
- Pass-Thru Ramp: Available
- Power: Electric motor with variable speed operation
- Weight: 745 lbs
- Dimensions: 47 in. x 68 in. x 27 in.
- Made in: USA (Fargo, ND)
