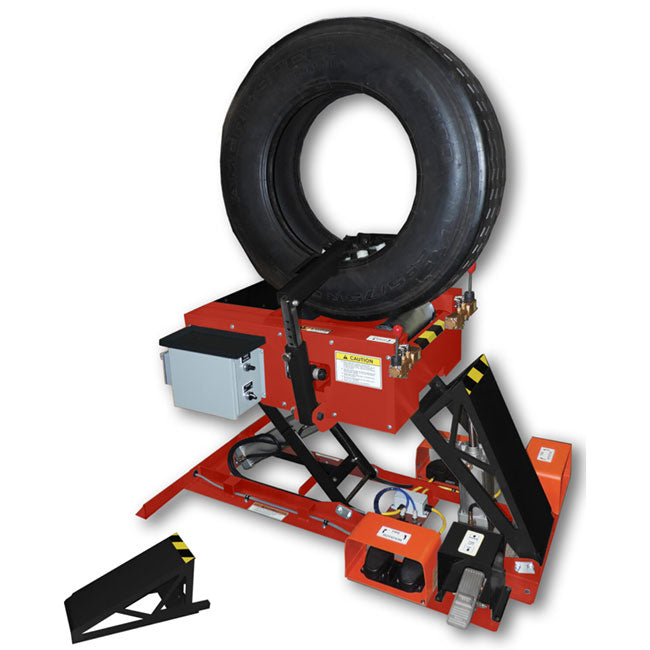

Branick 5600PT Tire Spreader w/Pass Though - Electric Drive PN 00-0176
Branick 5600PT Tire Spreader w/Pass Though - Electric Drive PN 00-0176
Ships within (1 - 3 Business Days)
SKU: 00-0176
Couldn't load pickup availability
FAQ
What is the difference between the Branick 5600, 5600M, and 5600PT Tire Spreaders?
Branick 5600 – Adj. Height Tire Spreader - Electric Drive
The 5600 is the standard model equipped with an electric motor, foot-operated lift, integrated loading ramp, and full operator controls. It is ideal for general tire inspection and repair without any additional elevation or pass-through features.
Branick 5600M – Adj. Height Tire Spreader (w/Riser for Monorail) - Electric Drive
The 5600M includes all the features of the standard 5600, but it comes with a built-in riser designed for monorail systems. This riser raises the working height of the unit, allowing tires suspended from overhead rail systems to be lowered directly into place, making it ideal for shops with ceiling-mounted tire transport equipment.
Branick 5600PT – Adj. Height Tire Spreader w/Pass-Through
The 5600PT is equipped with an integrated pass-through ramp that allows tires to roll through the machine from one side to the other. This configuration is perfect for high-volume shops that need continuous, streamlined tire movement without lifting or reversing tires after each service.
What is a riser?
A riser is a structural extension that raises the overall height of the tire spreader. In the 5600M model, it allows the machine to align with overhead monorail systems commonly used in commercial and industrial tire handling environments.
What is a pass-through ramp?
A pass-through ramp is a full-length tire ramp that allows tires to be loaded from one end of the spreader and rolled out the other side. This feature, found on the 5600PT model, increases efficiency by enabling continuous workflow and reducing manual handling.
Prop 65 Warning
WARNING: This product can expose you to chemicals including Lead which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov.
Specifications
- Product Number: Branick 5600PT
- Part Number: 00-0176
- X Section Width: Up to 18 in. (455 mm)
- Bead Diameter: Up to 24.5 in.
- Working Height: Adjustable from 15 in. to 32 in.
- Footprint (Standard): 40 in. x 58 in.
- Footprint with Light Stand: 40 in. x 67 in.
- Footprint with Pass-Thru: 40 in. x 83 in.
- Pass-Thru Ramp: Included
- Power: Electric motor with variable speed operation
- Weight: 745 lbs
- Dimensions: 47 in. x 68 in. x 27 in.
- Made in: USA (Fargo, ND)
Documents
Shipping
This Item Qualifies for FREE LTL SHIPPING (via Truck) it applies only to destinations within the 48 contiguous United States. Alaska, Hawaii, and any/all US territories and international orders are excluded.
LTL Freight Shipping Options
- LIMITED ACCESS - commercial / non-commercial / Farms.(+ $85.00).
- I have a forklift for unloading Freight at My Business location
- Deliver to local freight terminal for pickup.
- Lift Gate Is Required.(+$150.00)
- Residential Delivery.(+ $85.00)
Please select one of the choices above BEFORE adding to the cart!
PLEASE NOTE:
This item ships by truck. If you Require to ship to a Non-Commercial Address, please email or call (321)-423-5290 so we can give you an updated shipping Quote.
Please Review our Terms of Service, Shipping Policy, Return & Refund, Policy Pages.
Warranty Information
PRODUCT WARRANTY
The warranty for each product will be outlined in the owner’s manual and can vary depending on the product. Please see the manual for the product of interest for details on the warranty for that product. The manuals are available in Branicks Manual Archive section on their website.
If you need to make a warranty claim, you must contact Branick to obtain an RMA prior to any service, repairs or returns.
RETURN POLICY
Returns will be accepted for a period of 10 days from receipt of your purchase. Products proving defective on account of labor or material will be either replaced or credit allowed at our option, and no claim for damage or expense involved in using our products will be allowed.
All returns must be approved by Branick and have a Returned Merchandise Authorization (RMA) number provided by Branick before the return will be accepted. Return shipment will be at your expense and a 15% restock fee will be applied. Damage incurred on return shipment will be at your expense and may incur additional charges if Branick determines the product has experienced unusual wear and tear so please ensure the item is repackaged carefully before returning.
If you have questions regarding a return or our return policy, please contact Branick.
Warranty Registration should be done direct on the Manufacturers website.
Disclaimer: This summary is based on published warranty information but may not be comprehensive. For full details, it is best to review the specific warranty policy for your product and contact Branick directly.
