Nitrogen Tire Inflation

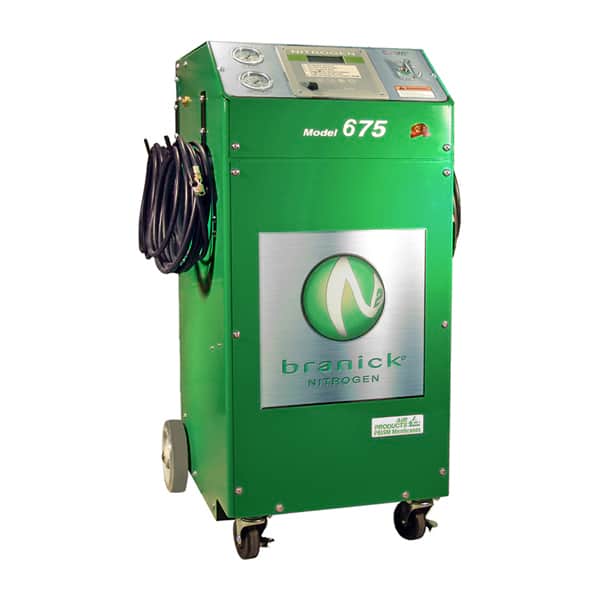

Branick 675 Mobile Nitrogen Generator Inflation System PN 00-0086
- VENDOR:- Branick
- SKU# BRA-675
Description
Branick 675 Mobile Nitrogen Generator System P/N 00-0086
Part Number: 00-0086
Our mobile systems deliver speed and high purity while allowing you to stay on the go. The 675 comes with a 30 gallon tank and can convert a passenger vehicle without being tethered to an air source. Four hoses with clip chucks are standard, though there are six conversion ports capable of handling duallies or spares. The Model 675 is the ideal solution for large passenger and light truck facilities that need a little more output while having mobility. Want to keep your mobile system mobile, but also want nitrogen at your tire changing location? Our mobile units have an auxiliary port on the back so you can fill any size storage tank for extra capacity. It's like having two systems for the price of one. Because of the PRISM Membrane, our systems also act as an air dryer, which means our systems produce a more consistent purity over the lifespan of the machine.
Specifications
- Air Input Range 100 to 175 psi
- Air Input* 15.6 cfm
- Nitrogen Output* 8.0 cfm
- Nitrogen Purity Adj 95% - 99.5%
- Operating Temperature 40° to 150° F
- Inlet Port (Female) 3/8” NPT
- Outlet Port (Female) 3/8” NPT
- Nitrogen Purity Port Yes
- Auto Shut-Off Yes
- Pre-Filters 2
- N2 Outlet Pressure Gauge Yes
- Air Inlet Pressure Gauge Yes
- Weight 400 lbs
- Hoses 4 Hooks
- Inflator Set Press. Range 5 psi to 145 psi
- Inflator Accuracy +/-0.5% Full Scale
- Display Increments 1 psi
- Power Supply 12v DC SLA
- Rechargeable Yes
- Dimensions (inches) 29 D X 29 W X 48 H
- Weight (lbs) 400
- 30 Gallon Tank
- Six conversion inflator ports
- PRISM Membrane
- 7-Year membrane warranty
- Faster Inflation times
- Fill multiple tires at once; capable of handling duallies or spaces
- Acts as air dryer to produce more consistent purity
- Longest Warranty term on the market!
Shipping
This Item Qualifies for FREE LTL SHIPPING (via Truck) it applies only to destinations within the 48 contiguous United States. Alaska, Hawaii, and any/all US territories and international orders are excluded.
LTL Freight Shipping Options- Lift Gate Is Required.(+$150.00)
- I have a forklift for unloading Freight at My Business location
- I have a way of unloading Freight at my location
- Deliver to local freight terminal for pickup.
Please select one of the choices above BEFORE adding to the cart!
PLEASE NOTE:
This item ships by truck. If you Require to ship to a Non-Commercial Address, please email
or call (706) 478-0072 us so we can give you an updated shipping Quote.
Please Review our Terms of Service, Shipping Policy, Return & Refund, Policy Pages.
