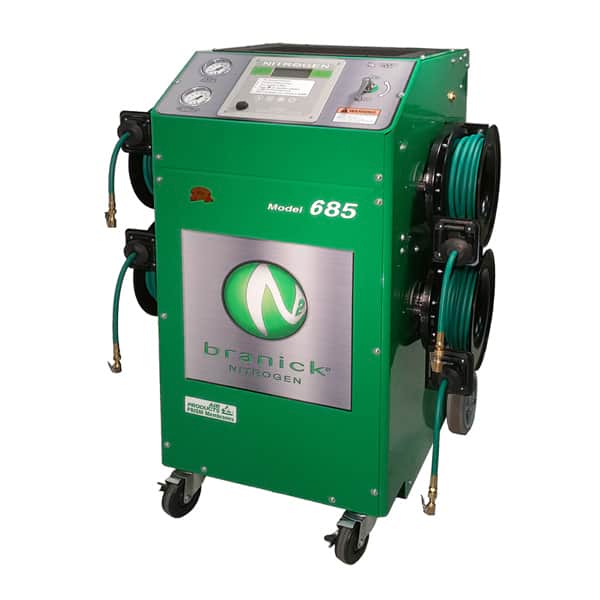

Branick 685 Mobile Nitrogen Generator Inflation System with Hose Reels PN 00-0108


Nitrogen Tire Inflation

Branick 685 Mobile Nitrogen Generator Inflation System with Hose Reels PN 00-0108

  • VENDOR:-   Branick
  • SKU#   BRA-685
In Stock
  • $10,478.20
    Unit price per

- +
Only -1 left!

Description

Branick 685 Mobile Nitrogen Generator System w/Hose Reels P/N 00-0108

Part Number: 00-0108

Our mobile systems deliver speed and high purity while allowing you to stay on the go. The 685 comes with hose reels and a 30 gallon tank allowing you to convert a passenger vehicle without being tethered to an air source. Four hoses with clip chucks are standard, though there are six conversion ports capable of handling duallies or spares. The 685 has added capacity to easily handle SUV and light truck applications - even works great for top-off or single conversion on commercial tires. Because of the PRISM Membrane, the system also act as an air dryer, which means it produces a more consistent purity over the lifespan of the machine. And, if you want to keep your mobile system mobile, but also want nitrogen at your tire changing location, our mobile units have an auxiliary port on the back so you can fill any size storage tank for extra capacity. It's like having two systems for the price of one.

WARNING: This product may expose you to chemicals including lead which are known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov

Specifications

  • Air Input Range 100 to 175 psi
  • Air Input*            5.6 cfm
  • Nitrogen Output*            8.0 cfm
  • Nitrogen Purity Adj 95% - 99.5%
  • Operating Temperature                40° to 150° F
  • Inlet Port (Female)          3/8” NPT
  • Outlet Port (Female)      3/8” NPT
  • Nitrogen Purity Port       Yes
  • Auto Shut-Off   Yes
  • Pre-Filters           2
  • N2 Outlet Pressure Gauge           Yes
  • Air Inlet Pressure Gauge               Yes
  • Weight 430 lbs
  • Hoses    4 Reels
  • Inflator Set Press. Range              5 psi to 145 psi
  • Inflator Accuracy              +/-0.5% Full Scale
  • Display Increments         1 psi
  • Power Supply    12v DC SLA
  • Rechargeable    Yes
  • Dimensions (inches)       32 D X 29 W X 48 H
  • Weight (lbs)       470
Features
  • 30 Gallon Tank
  • Six conversion inflator ports
  • PRISM Membrane
  • 7-Year membrane warranty
Benefits
  • Faster Inflation times
  • Fill multiple tires at once; capable of handling duallies or spaces
  • Acts as air dryer to produce more consistent purity
  • Longest Warranty term on the market!
