C-Aire 5 HP 120 Gallon Duplex Air Compressor PN A050D120
C-Aire 5 HP 120 Gallon Duplex Air Compressor PN A050D120
Ships within (1 - 3 Business Days)
SKU: A050D120-1230
Description

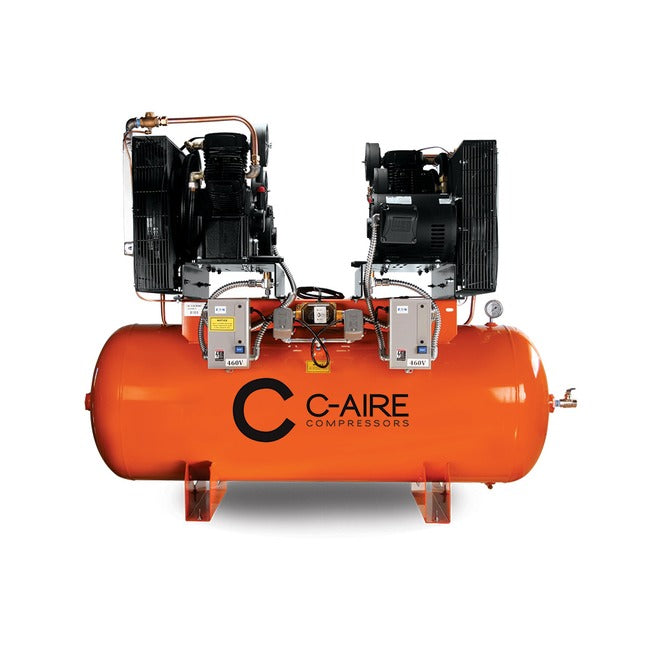

C-Aire 5 HP 120 Gallon Duplex Air Compressor
Product Number: A050D120
The 5 HP 120 Gallon Duplex unit features two low-RPM cast iron pumps with aluminum heads for efficient cooling, Sandvik Swedish steel reed valves, finned intercooler tubes, and easy-to-read oil sight glasses. Large-frame heavy-duty motors help ensure reliable performance and long service life. This unit includes pre-wired magnetic starters and is ready for installation and start-up.
- Eight-foot intercoolers between the first and second stages improve cooling and efficiency.

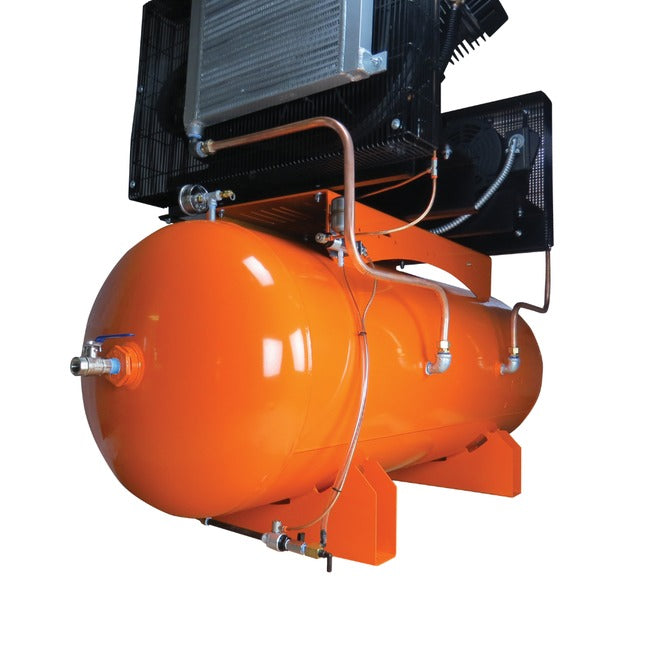

- Easy-access ball-valve tank drain—no reaching under the tank.

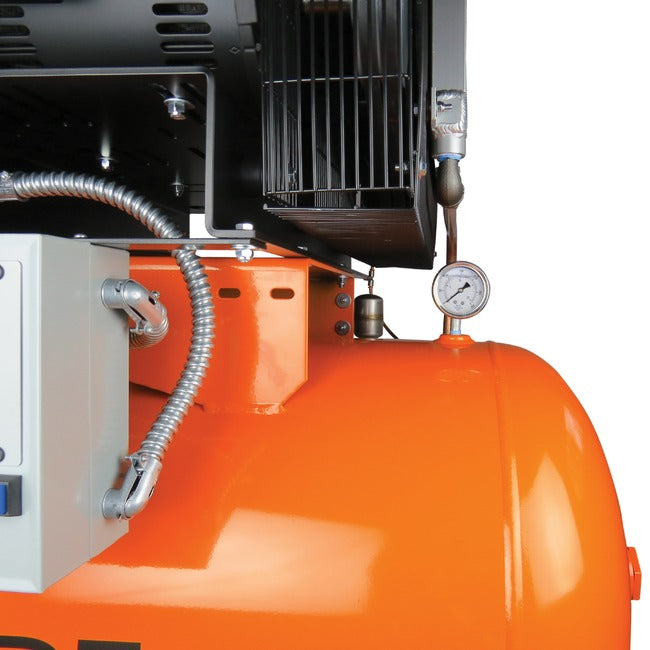

- Large liquid-filled air pressure gauge for better accuracy.
- Serial tag lists oil capacity, air filter part number, and support phone number.

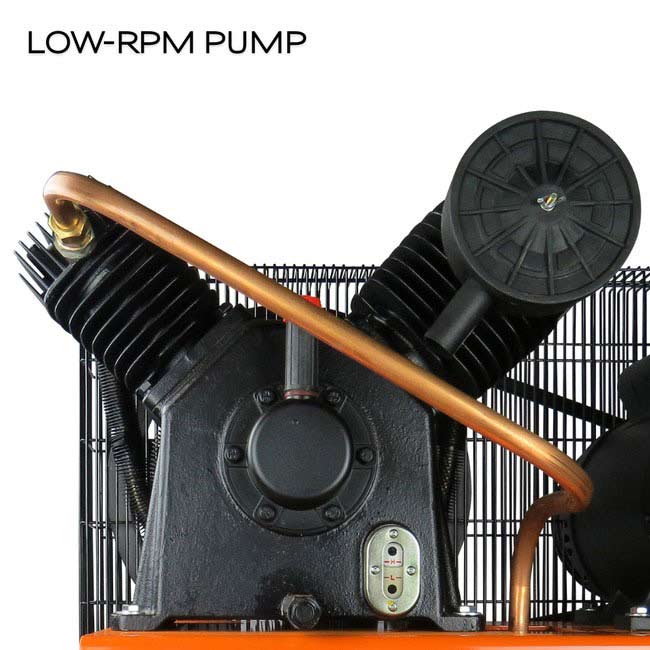

- Low-RPM pumps run cool and quiet for longer life.
Suitable for: 3–5 person body shop, 4–7 person auto repair shop, small manufacturing plant, truck repair or tire shop.

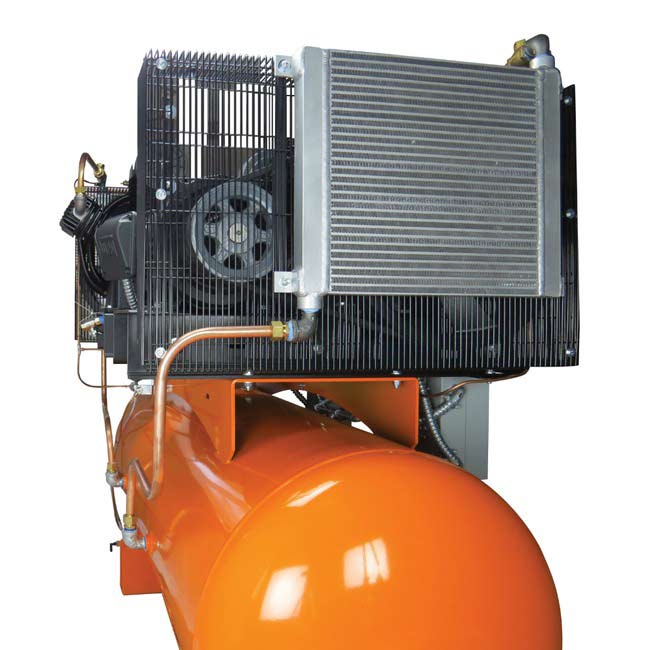

Upgrade to a Fully Packaged Unit: Factory-installed belt-guard-mounted aftercooler and moisture-minder auto tank drain help remove approximately 60% of moisture before the tank, protecting pneumatic tools and reducing corrosion. Package includes four mounting pads, four anchor bolts, and a 12 in. steel braided flex hose.
3-Year Extended Warranty: Purchase the C-Aire Extended Warranty Kit the same day as the compressor and register within 10 days. Kit includes air-intake filters (change every six months) and compressor oil (change every 12 months) to maintain coverage through year three.
Prop 65 Warning
WARNING: This product can expose you to chemicals including Lead which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov.
Specifications
- Horsepower: (2) 5 HP
- Stages: 2-stage
- Total Air Delivery: 17–34 CFM @ 175 PSI
- Pumps: 2-cylinder cast iron, 885 RPM (each)
- Main Bearings: 50,000 hour
- Oil: Full-synthetic
- Tank: 120-gallon
- Dimensions (L × D × H): 68 in. × 27 in. × 53 in.
- Shipping Weight: 980 lbs
Electrical Specs
- Duplex Power: Requires two separate dedicated circuits
- Motor Speed: 1740 RPM (each)
- 1-Phase / 230V: 28.75 FLA (45A breaker)
- 3-Phase / 230V: 14.6 FLA (25A breaker)
- 3-Phase / 460V: 7.28 FLA (15A breaker)
Documents
Video
5 Amazing Features in C-Aire Compressors
C-Aire Compressors Decibel Difference. Why Our Compressors Are Quieter.
Shipping
SHIPPING QUOTE
This Item requires you to fill out a "SHIPPING QUOTE FORM", Please read instructions carefully and fill out all applicable questions. An email will be sent to us with your items you intend to purchase and the shipping address. We will give you our best Freight rate to your "COMMERCIAL BUSINESS ADDRESS".
Once we receive a quote from the carrier we will email you with a full break down of price for cost of items, Sales Tax and Shipping Cost. At this point if you are happy with the price you will be able to click on a link in the email and it will go straight to our secure site were you can check out securely. If for any reason you need assistance or have concerns that need to be addressed please don't hesitate to call us directly at (321)-423-5290. We will be more than happy to assist you.
Warranty Information
1 Year Warranty
3 Year Extended Warranty
Piston Compressor Warranty
1 Year Included
3 Year Extended Available on All Two-Stage Units
Fire Protection Air Compressor Warranty
1 Year Included
Heavy Duty series includes a 3-year warranty on the pump
Rotary Screw Warranty
1 Year Included
C-Aire Compressors Warranty Information
C-Aire Inc. warrants its compressors to be free from defects in material and workmanship, subject to the following provisions.
Standard Warranty Duration
12 months from date of purchase.
Extended Warranty Duration
The three-year extended warranty kit is available for the C-Aire A Series and K Series models in 5 HP, 7.5 HP, 10 HP, 13 HP, and 15 HP configurations, extending the warranty from 1 year to 3 years from the date of purchase.
- Purchase the extended warranty kit the same day as your compressor.
- Register the extended warranty with C-Aire within 10 days of purchase.
- Perform the recommended maintenance on schedule.
Registering Your Extended Warranty
Your extended warranty may be registered using the instructions in your extended warranty kit. Follow the steps provided to complete registration.
What the Warranty Covers (during the Warranty Duration)
All components on the compressor except for the items listed below under “What is excluded from warranty coverage.”
What Is Excluded from Warranty Coverage
- Air intake filters and compressor oil (maintenance items).
- Failure due to improper installation (including absence of mounting pads) or insufficient power.
- Oil leaks beyond 60 days from the purchase date.
- Freight-damaged items (reject the shipment or note damage on the Bill of Lading).
- Any labor, freight, or transportation charges not pre-approved by C-Aire.
- Labor incidental to installation, electrical connections, repair, service, adjustment, removal, or replacement.
- Misuse or abuse.
C-AIRE HAS NO OBLIGATION UNDER THESE WARRANTIES OR OTHERWISE (REGARDLESS OF THE FORM OF ACTION) FOR SPECIAL, INDIRECT, CONSEQUENTIAL OR INCIDENTAL DAMAGES, INCLUDING WITHOUT LIMITATION, LOSS OF USE, LOST PROFITS, OR LOST INCOME, WHETHER SUFFERED BY THE BUYER OR A THIRD PARTY.
C-Aire’s Obligations
C-Aire will repair or replace (at C-Aire’s option) defective parts, pay reasonable labor costs to replace/repair the defective part, and pay ground freight for the return of defective parts and shipment of replacement part(s). All labor and freight must be pre-approved and arranged by C-Aire.
Purchaser’s Obligations
- Properly install and start up the compressor using the checklist at the back of the Owner’s Manual (retain the checklist for future reference).
- Ensure the compressor is sized properly for the application (typical duty cycle ≤ 60%).
- Maintain proof of purchase and Installation Checklist.
- Register your Extended Warranty (if applicable).
Warranty Claims
Please contact C-Aire for assistance with warranty claims.
Disclaimer: This summary is based on published warranty information but may not be comprehensive. For full details, it is best to review the specific warranty policy for your product and contact C-Aire directly.
