C-Aire K Series 5 HP 60 Gallon Simplex Air Compressor PN K050V060 | K050H060
C-Aire K Series 5 HP 60 Gallon Simplex Air Compressor PN K050V060 | K050H060
Ships within (1 - 3 Business Days)
SKU: K050V060-1230
Description

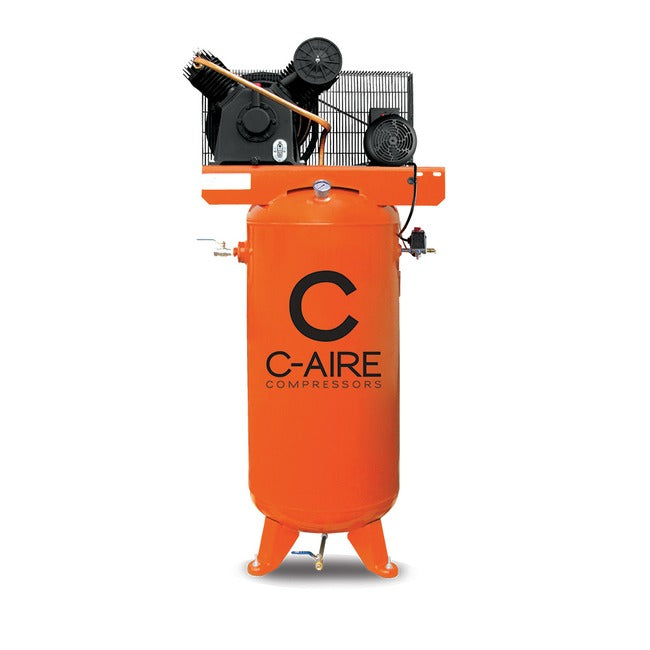

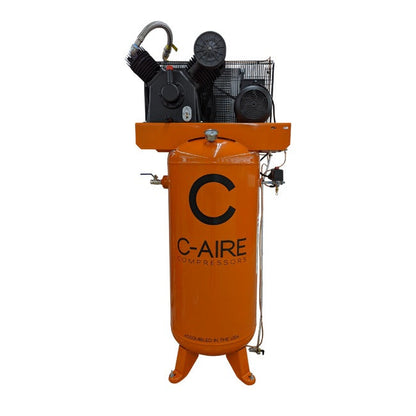

C-Aire K Series with Chinook pump 5 HP 60 Gallon Simplex Air Compressor
Product Numbers: K050V060 | K050H060

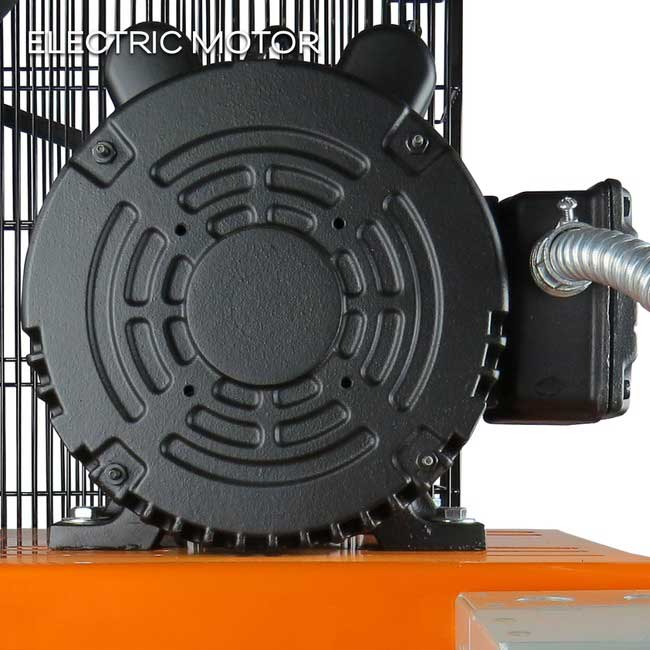

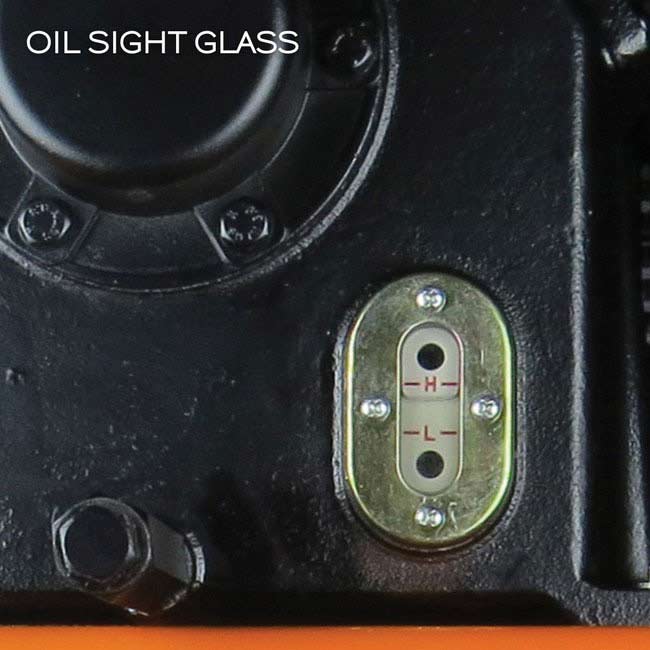

This simplex unit is equipped with a Chinook K-Series low-RPM cast iron pump with an aluminum head for efficient cooling, Sandvik Swedish steel reed valves, finned intercooler tubes, and an easy-to-read oil sight glass. A large-frame, heavy-duty motor supports reliable performance and long service life. The 230V / 1-Phase version is certified to UL 1450 and CSA C22.2 No. 68-92.
- Eight-foot intercooler between the first and second stage improves cooling and efficiency.

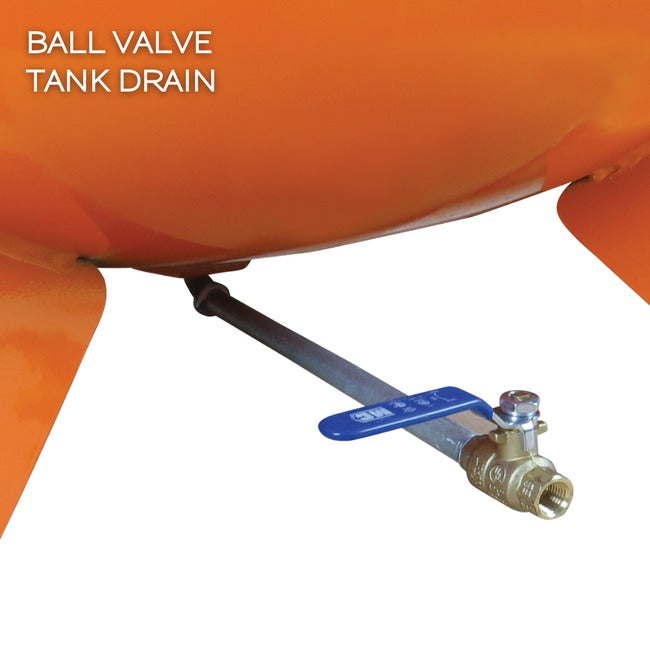

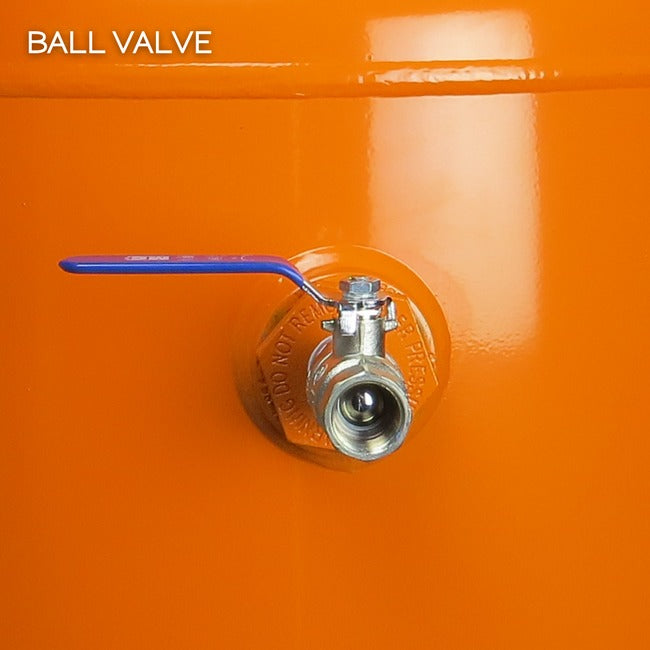

- Easy-access ball-valve tank drain (no reaching under the tank for a petcock).

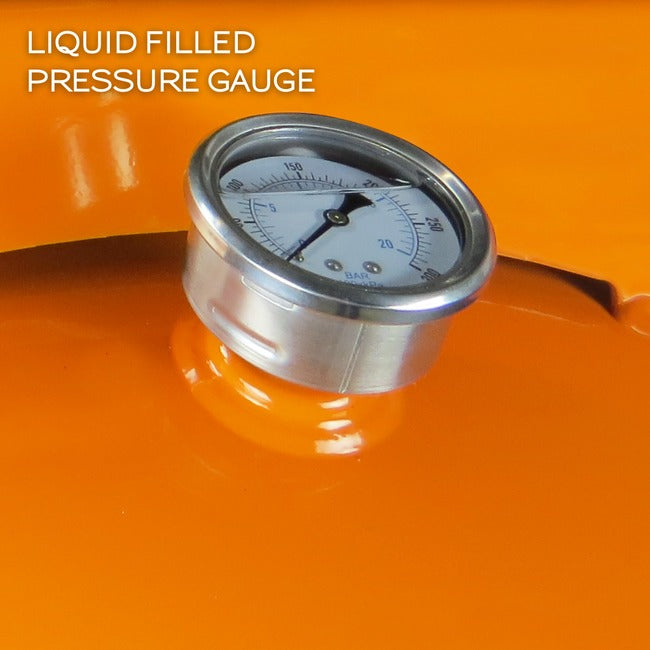

- Large liquid-filled pressure gauge for better readability.
- Serial tag lists oil capacity, air-filter part number, and support phone number.

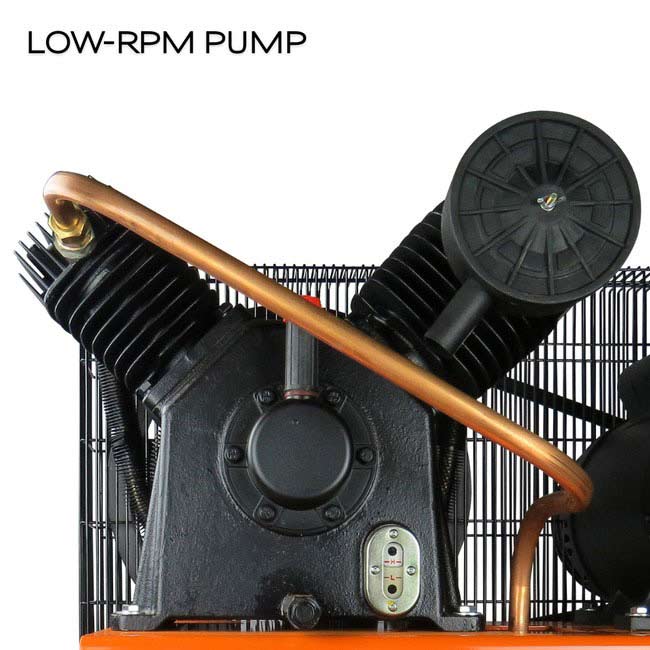

- Low-RPM Chinook K pump runs quieter, cooler, and is designed for long life.
Suitable for: 1–2 person body shop, serious hobbyist, farm.

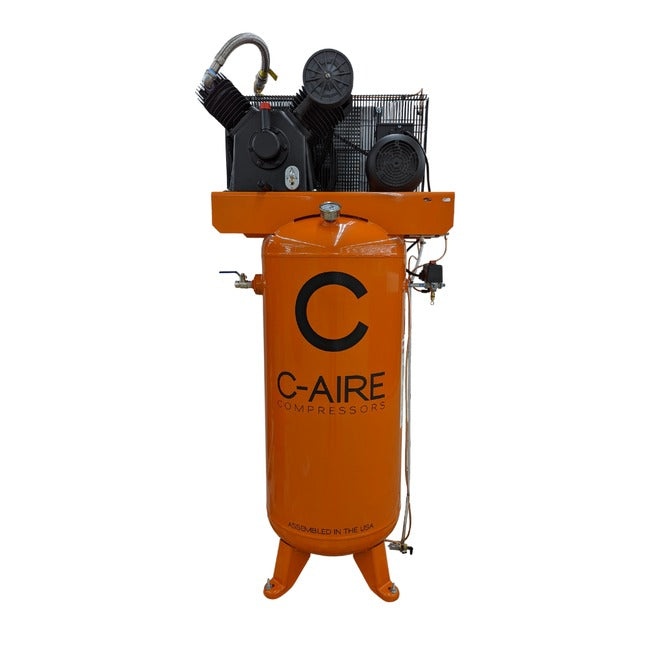

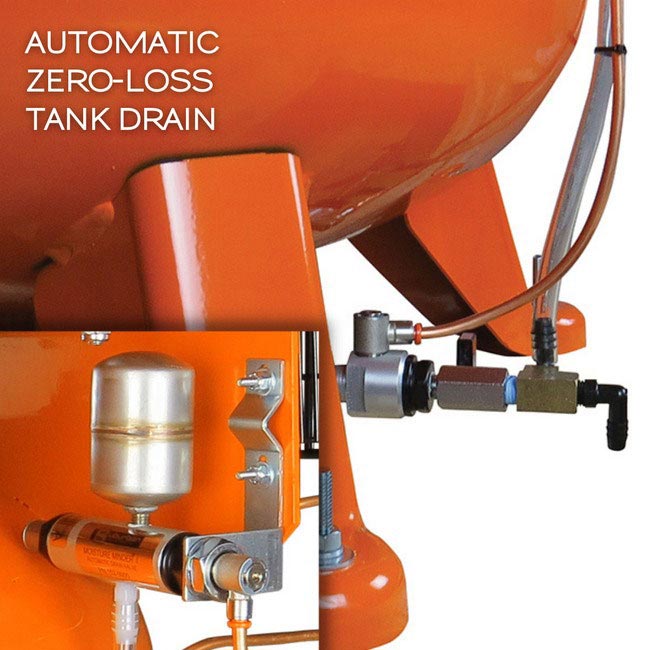

Upgrade to a Fully Packaged Unit: Factory-installed belt-guard-mounted aftercooler and moisture-minder auto tank drain reduce moisture (approximately 60% before the tank) and help protect pneumatic tools. Includes installation kit: four mounting pads, four anchor bolts, and a 12 in. steel braided flex hose.
3-Year Extended Warranty: Available with the purchase of the C-Aire Extended Warranty Kit on the same day as the compressor and registration within 10 days. Kit includes air-intake filters (six-month interval) and compressor oil (12-month interval) to maintain coverage through year three.
Prop 65 Warning
WARNING: This product can expose you to chemicals including Lead which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov.
Specifications
- Horsepower: 5 HP
- Stages: 2-stage
- Air Delivery: 15 CFM @ 175 PSI
- Pump: Chinook K-Series 2-cylinder cast iron, 755 RPM
- Main Bearings: 50,000 hour
- Oil: Full-synthetic
- Tank: 60-gallon
- Dimensions (L × D × H): Vertical – 30 in. × 21 in. × 73 in. / Horizontal – 52 in. × 23 in. × 47 in.
- Shipping Weight: 450 lbs
Electrical Specs
- Motor Speed: 3450 RPM
- 1-Phase / 230V: 20.3 FLA (35A breaker)
- 3-Phase / 230V: 14.2 FLA (25A breaker)
- 3-Phase / 460V: 6.4 FLA (15A breaker)
Documents
Video
5 Amazing Features in C-Aire Compressors
C-Aire Compressors Decibel Difference. Why Our Compressors Are Quieter.
Shipping
SHIPPING QUOTE
This Item requires you to fill out a "SHIPPING QUOTE FORM", Please read instructions carefully and fill out all applicable questions. An email will be sent to us with your items you intend to purchase and the shipping address. We will give you our best Freight rate to your "COMMERCIAL BUSINESS ADDRESS".
Once we receive a quote from the carrier we will email you with a full break down of price for cost of items, Sales Tax and Shipping Cost. At this point if you are happy with the price you will be able to click on a link in the email and it will go straight to our secure site were you can check out securely. If for any reason you need assistance or have concerns that need to be addressed please don't hesitate to call us directly at (321)-423-5290. We will be more than happy to assist you.
Warranty Information
1 Year Warranty
3 Year Extended Warranty
Piston Compressor Warranty
1 Year Included
3 Year Extended Available on All Two-Stage Units
Fire Protection Air Compressor Warranty
1 Year Included
Heavy Duty series includes a 3-year warranty on the pump
Rotary Screw Warranty
1 Year Included
C-Aire Compressors Warranty Information
C-Aire Inc. warrants its compressors to be free from defects in material and workmanship, subject to the following provisions.
Standard Warranty Duration
12 months from date of purchase.
Extended Warranty Duration
The three-year extended warranty kit is available for the C-Aire A Series and K Series models in 5 HP, 7.5 HP, 10 HP, 13 HP, and 15 HP configurations, extending the warranty from 1 year to 3 years from the date of purchase.
- Purchase the extended warranty kit the same day as your compressor.
- Register the extended warranty with C-Aire within 10 days of purchase.
- Perform the recommended maintenance on schedule.
Registering Your Extended Warranty
Your extended warranty may be registered using the instructions in your extended warranty kit. Follow the steps provided to complete registration.
What the Warranty Covers (during the Warranty Duration)
All components on the compressor except for the items listed below under “What is excluded from warranty coverage.”
What Is Excluded from Warranty Coverage
- Air intake filters and compressor oil (maintenance items).
- Failure due to improper installation (including absence of mounting pads) or insufficient power.
- Oil leaks beyond 60 days from the purchase date.
- Freight-damaged items (reject the shipment or note damage on the Bill of Lading).
- Any labor, freight, or transportation charges not pre-approved by C-Aire.
- Labor incidental to installation, electrical connections, repair, service, adjustment, removal, or replacement.
- Misuse or abuse.
C-AIRE HAS NO OBLIGATION UNDER THESE WARRANTIES OR OTHERWISE (REGARDLESS OF THE FORM OF ACTION) FOR SPECIAL, INDIRECT, CONSEQUENTIAL OR INCIDENTAL DAMAGES, INCLUDING WITHOUT LIMITATION, LOSS OF USE, LOST PROFITS, OR LOST INCOME, WHETHER SUFFERED BY THE BUYER OR A THIRD PARTY.
C-Aire’s Obligations
C-Aire will repair or replace (at C-Aire’s option) defective parts, pay reasonable labor costs to replace/repair the defective part, and pay ground freight for the return of defective parts and shipment of replacement part(s). All labor and freight must be pre-approved and arranged by C-Aire.
Purchaser’s Obligations
- Properly install and start up the compressor using the checklist at the back of the Owner’s Manual (retain the checklist for future reference).
- Ensure the compressor is sized properly for the application (typical duty cycle ≤ 60%).
- Maintain proof of purchase and Installation Checklist.
- Register your Extended Warranty (if applicable).
Warranty Claims
Please contact C-Aire for assistance with warranty claims.
Disclaimer: This summary is based on published warranty information but may not be comprehensive. For full details, it is best to review the specific warranty policy for your product and contact C-Aire directly.
