C-Aire K Series 7.5 HP 80 Gallon Simplex Air Compressor PN K075V080 | K075H080
C-Aire K Series 7.5 HP 80 Gallon Simplex Air Compressor PN K075V080 | K075H080
Ships within (1 - 3 Business Days)
SKU: K075V080-1230
Description

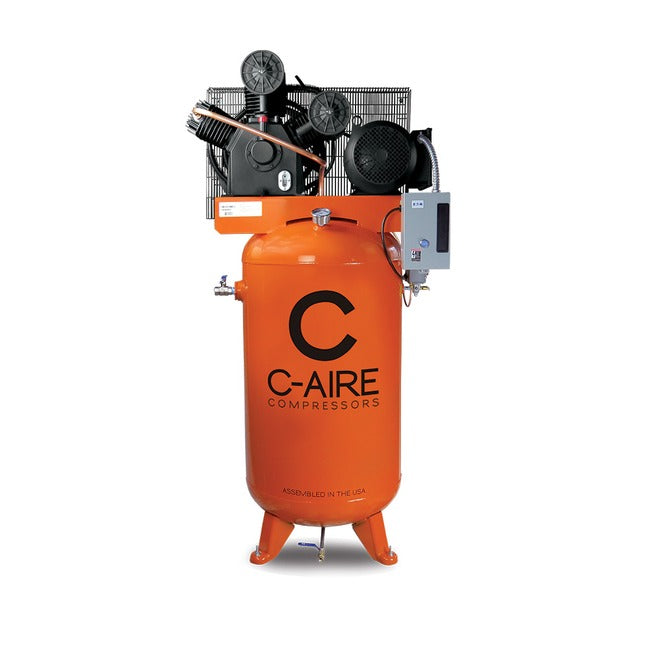

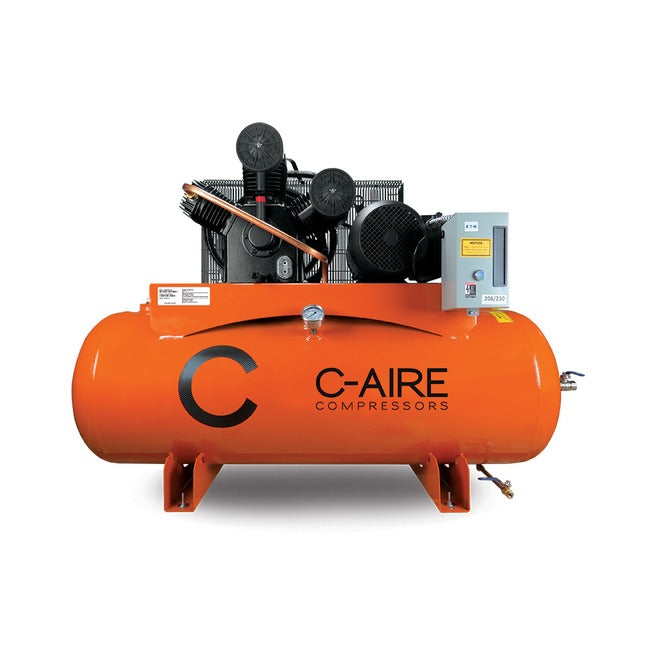

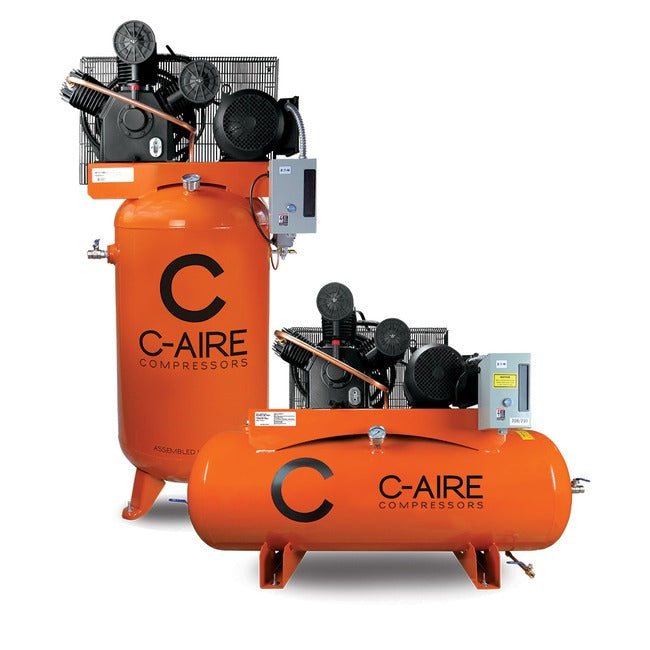

C-Aire K Series with Chinook pump 7.5 HP 80 Gallon Simplex Air Compressor
Product Numbers: K075V080 | K075H080

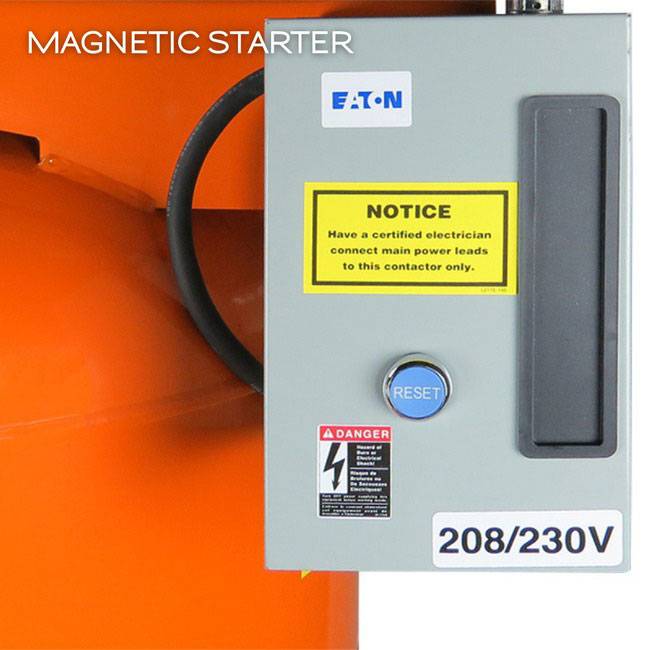

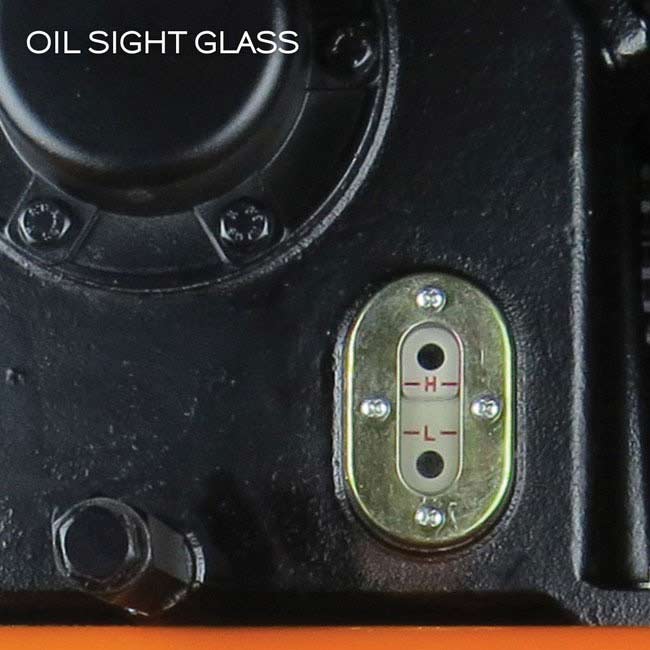

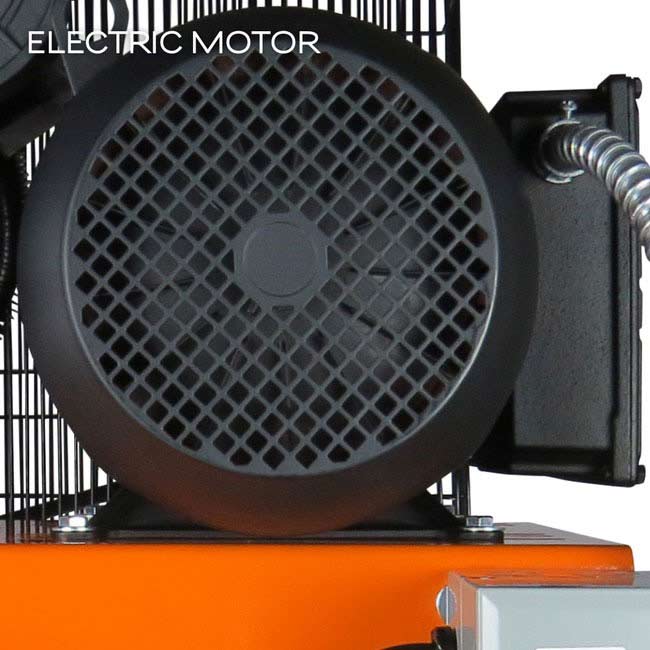

The 7.5 HP 80 Gallon Simplex compressor is built with a Chinook K-Series low-RPM cast iron pump featuring an aluminum head for efficient cooling, Sandvik Swedish steel reed valves, finned intercooler tubes, and an easy-to-read oil sight glass. A large-frame heavy-duty motor ensures long service life and dependable performance. This unit is supplied with a pre-wired magnetic starter for quick installation and start-up. ETL Listed to UL 1450 and CSA C22.2 No. 68.
- Eight-foot intercooler between the first and second stage improves cooling and efficiency.

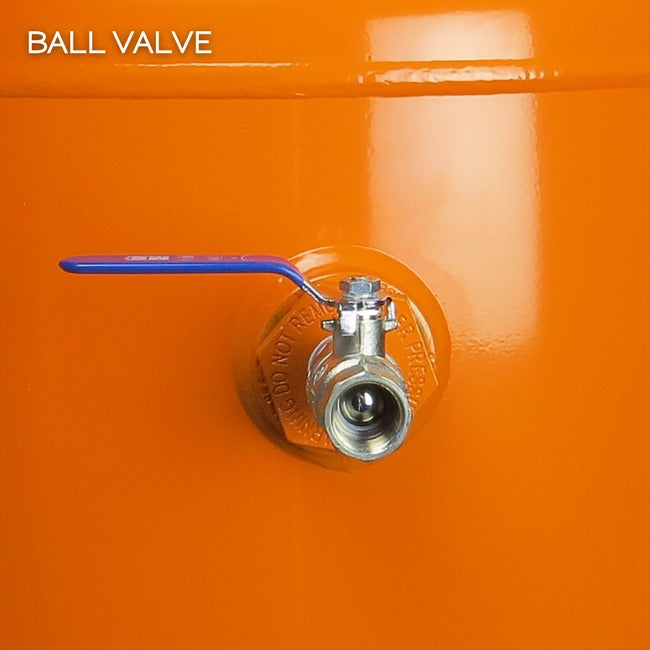

- Ball-valve tank drain for easier condensate removal.
- Large liquid-filled pressure gauge provides more accurate readings.
- Serial tag lists oil capacity, air filter part number, and support phone number.

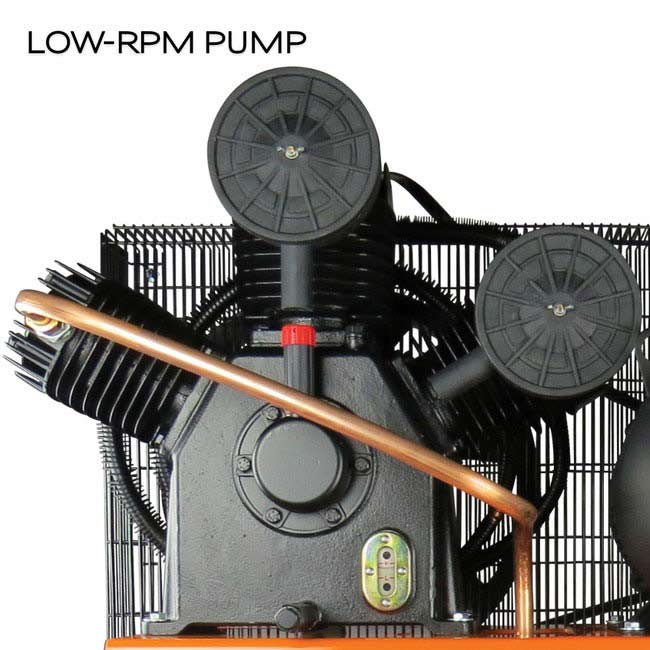

- Low-RPM Chinook K pump operates cooler, quieter, and is designed for long service life.
Suitable for: 2–3 person body shop, 3–5 person auto repair shop, small manufacturing plant, farm.

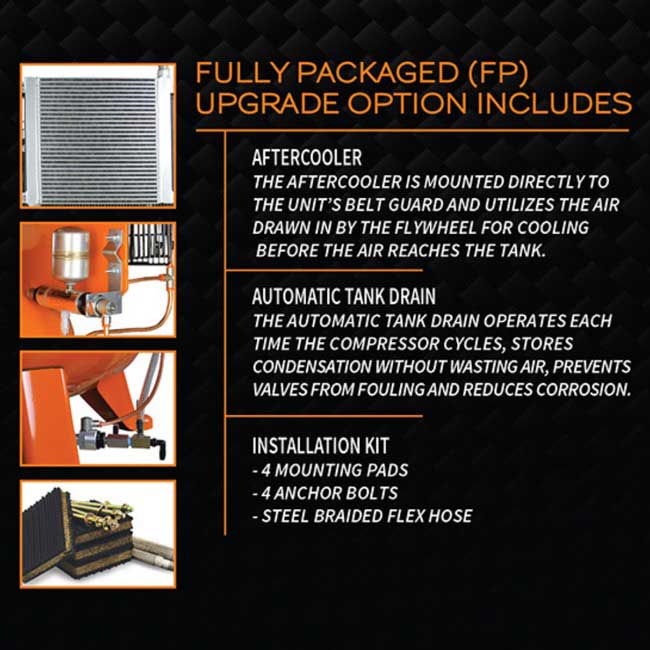

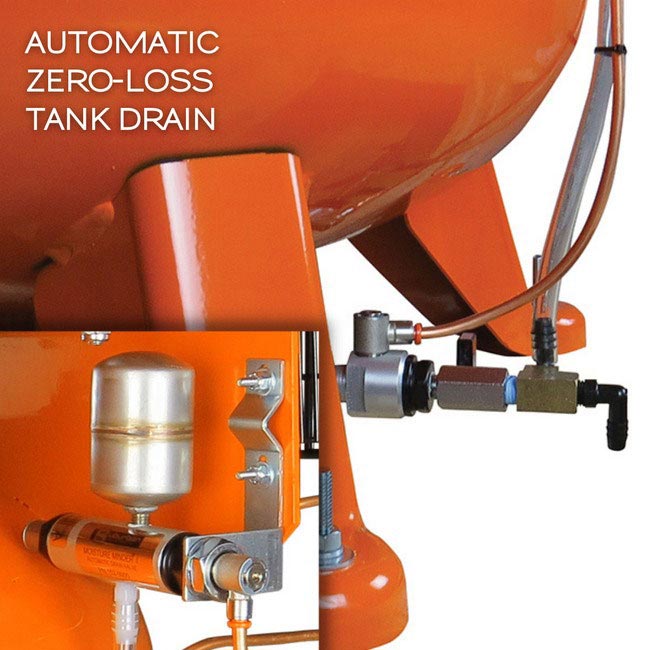

Upgrade to a Fully Packaged Unit: Includes factory-installed belt-guard-mounted aftercooler and moisture-minder auto tank drain. Removes up to 60% of moisture before the tank to protect pneumatic tools and reduce corrosion. Package includes four mounting pads, four anchor bolts, and a 12 in. steel braided flex hose for installation flexibility.
3-Year Extended Warranty: Available when purchased with the C-Aire Extended Warranty Kit on the same day as the compressor and registered within 10 days. Kit includes air-intake filters (six-month intervals) and compressor oil (12-month intervals) to maintain warranty coverage through year three.
Prop 65 Warning
WARNING: This product can expose you to chemicals including Lead which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov.
Specifications
- Horsepower: 7.5 HP
- Stages: 2-stage
- Air Delivery: 24 CFM @ 175 PSI
- Pump: Chinook K-Series 3-cylinder cast iron, 649 RPM
- Main Bearings: 50,000 hour
- Oil: Full-synthetic
- Tank: 80-gallon
- Dimensions (L × D × H): Vertical – 32 in. × 23 in. × 75 in. / Horizontal – 65 in. × 23 in. × 48 in.
- Shipping Weight: 600 lbs
Electrical Specs
- Motor Speed: 1760 RPM
- 1-Phase / 230V: 35.5 FLA (60A breaker)
- 3-Phase / 230V: 21.3 FLA (35A breaker)
- 3-Phase / 460V: 10.6 FLA (20A breaker)
Documents
Video
5 Amazing Features in C-Aire Compressors
C-Aire Compressors Decibel Difference. Why Our Compressors Are Quieter.
Shipping
SHIPPING QUOTE
This Item requires you to fill out a "SHIPPING QUOTE FORM", Please read instructions carefully and fill out all applicable questions. An email will be sent to us with your items you intend to purchase and the shipping address. We will give you our best Freight rate to your "COMMERCIAL BUSINESS ADDRESS".
Once we receive a quote from the carrier we will email you with a full break down of price for cost of items, Sales Tax and Shipping Cost. At this point if you are happy with the price you will be able to click on a link in the email and it will go straight to our secure site were you can check out securely. If for any reason you need assistance or have concerns that need to be addressed please don't hesitate to call us directly at (321)-423-5290. We will be more than happy to assist you.
Warranty Information
1 Year Warranty
3 Year Extended Warranty
Piston Compressor Warranty
1 Year Included
3 Year Extended Available on All Two-Stage Units
Fire Protection Air Compressor Warranty
1 Year Included
Heavy Duty series includes a 3-year warranty on the pump
Rotary Screw Warranty
1 Year Included
C-Aire Compressors Warranty Information
C-Aire Inc. warrants its compressors to be free from defects in material and workmanship, subject to the following provisions.
Standard Warranty Duration
12 months from date of purchase.
Extended Warranty Duration
The three-year extended warranty kit is available for the C-Aire A Series and K Series models in 5 HP, 7.5 HP, 10 HP, 13 HP, and 15 HP configurations, extending the warranty from 1 year to 3 years from the date of purchase.
- Purchase the extended warranty kit the same day as your compressor.
- Register the extended warranty with C-Aire within 10 days of purchase.
- Perform the recommended maintenance on schedule.
Registering Your Extended Warranty
Your extended warranty may be registered using the instructions in your extended warranty kit. Follow the steps provided to complete registration.
What the Warranty Covers (during the Warranty Duration)
All components on the compressor except for the items listed below under “What is excluded from warranty coverage.”
What Is Excluded from Warranty Coverage
- Air intake filters and compressor oil (maintenance items).
- Failure due to improper installation (including absence of mounting pads) or insufficient power.
- Oil leaks beyond 60 days from the purchase date.
- Freight-damaged items (reject the shipment or note damage on the Bill of Lading).
- Any labor, freight, or transportation charges not pre-approved by C-Aire.
- Labor incidental to installation, electrical connections, repair, service, adjustment, removal, or replacement.
- Misuse or abuse.
C-AIRE HAS NO OBLIGATION UNDER THESE WARRANTIES OR OTHERWISE (REGARDLESS OF THE FORM OF ACTION) FOR SPECIAL, INDIRECT, CONSEQUENTIAL OR INCIDENTAL DAMAGES, INCLUDING WITHOUT LIMITATION, LOSS OF USE, LOST PROFITS, OR LOST INCOME, WHETHER SUFFERED BY THE BUYER OR A THIRD PARTY.
C-Aire’s Obligations
C-Aire will repair or replace (at C-Aire’s option) defective parts, pay reasonable labor costs to replace/repair the defective part, and pay ground freight for the return of defective parts and shipment of replacement part(s). All labor and freight must be pre-approved and arranged by C-Aire.
Purchaser’s Obligations
- Properly install and start up the compressor using the checklist at the back of the Owner’s Manual (retain the checklist for future reference).
- Ensure the compressor is sized properly for the application (typical duty cycle ≤ 60%).
- Maintain proof of purchase and Installation Checklist.
- Register your Extended Warranty (if applicable).
Warranty Claims
Please contact C-Aire for assistance with warranty claims.
Disclaimer: This summary is based on published warranty information but may not be comprehensive. For full details, it is best to review the specific warranty policy for your product and contact C-Aire directly.
