CEMB C212 Digital Truck & Bus Wheel Balancer

Description

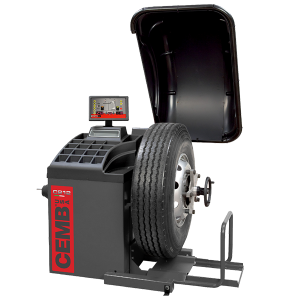

CEMB MODEL C212 wheel balancer with automatic distance and diameter

CEMB balancer for truck wheels, heavy duty truck service shops, municipalities, fleet truck tire service companies and all commercial truck tires. CEMB’s C212 comes fully assembled.

• C212 balances steel & light alloy wheels of cars, light & heavy commercial trucks and bus thanks to a 40mm shaft and a large assortment of adaptors and cones standard.
• Pneumatic stationary brake useful during wheel mounting and counterweight application.
• Pedal operated pneumatic lift (soft type) enables excellent centering accuracy of the wheel on the shaft.
• Automatic Distance & Diameter Entry (2D)
• Fully Automatic Cycle with Breaking
• 51″ wheel guard
• Self-Diagnosis and Self-Calibration
• Menus for quick selection of the following:
  inches to millimeters
  unbalanced thresholds 0.1 or 0.25 ounces (1 or 5g)
• Direct selection ounces/grams
• Optimization program for compensation of rim and tire unbalance
• “Static” program–plus 4 ALU programs for PAX, light alloy or special shaped rims
• One Button Split & Hidden Weight Program
• Direct weight location program (no re-positioning of stick-on weights)

Specifications

• Power Supply: 110VAC, 50/60 Hz, 1 ph
• Car Mode Balancing Speed: < 100 rpm
• Truck Mode Balancing Speed: < 70 rpm
• Car Mode Balancing Accuracy: < 0.1 oz (< 1 g)
• Truck Mode Balancing Accuracy: < 1 oz (< 10 g)
• Car Mode Average Cycle Time: 8 seconds
• Truck Mode Average Cycle Time: 20 seconds
• Rim Diameter Capacity: 10″ – 30″ (265 – 765 mm)
• Rim Width Capacity: 1.5″ – 20″ (40 – 510 mm)
• Max. Wheel Weight: 550 lbs (250 kg)
• Max. Tire Diameter: 51″ (1,295 mm)
• Operating Temperature: 32 – 113°F (0 – 45°C)
• Shaft Size: 40 mm
• Gross Ship Weight: 615 lbs (280 Kg)
