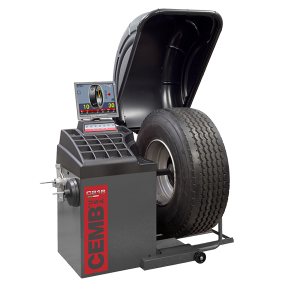

CEMB C218 Video Truck & Bus Wheel Balancer

Description

CEMB MODEL C218 Bus And Truck Wheel Balancer With Standard Cones, Truck Cones, Wheel Lift And Accessory

CEMB’s C218 is a universal wheel balancer that operates at high precision on trucks, buses, light commercial, and car wheels thanks to a 40mm shaft and to a rich standard equipment including cones and adapters.

• Pneumatic stationary brake useful during wheel mounting and counterweight application.
• Pedal operated pneumatic lift (soft type) enables excellent centering accuracy of the wheel on the shaft.
• C218 balances steel & light alloy wheels of cars, light & heavy commercial trucks and bus thanks to a 40mm shaft and a large assortment of adaptors and cones standard
• Automatic Distance & Diameter Entry (2D)
• Radial Runout Sonar
• Fully Automatic Cycle with Breaking
• Self-Diagnosis and Self-Calibration
• Menus for quick selection of the following:
  ounces to grams
  inches to millimetres
  unbalanced thresholds 0.1 or 0.25 ounces (1 or 5g)
• Optimization program for compensation of rim and tire unbalance
• “Static” program–plus 4 ALU programs for PAX, light alloy or special shaped rims
• One Button Split & Hidden Weight Program
• Direct weight location program (no re-positioning of stick-on weights)

Specifications

• Power Supply: 110VAC, 50/60 Hz, 1 ph
• Car Mode Balancing Speed: < 100 rpm
• Truck Mode Balancing Speed: < 70 rpm
• Car Mode Balancing Accuracy: < 0.1 oz (< 1 g)
• Truck Mode Balancing Accuracy: < 1 oz (< 10 g)
• Car Mode Average Cycle Time: 8 seconds
• Truck Mode Average Cycle Time: 20 seconds
• Rim Diameter Capacity: 10″ – 30″ (265 – 765 mm)
• Rim Width Capacity: 1.5″ – 20″ (40 – 510 mm)
• Max. Wheel Weight: 550 lbs (250 kg)
• Max. Tire Diameter: 51″ (1,295 mm)
• Operating Temperature: 32 – 113°F (0 – 45°C)
• Shaft Size: 40 mm
• Operating Pressure: 8-10 bar (115-145 psi)
• Gross Ship. Weight: 750 lbs (340 Kg)

Documents

Flyer

Diagram

Install Manual

User Manual
