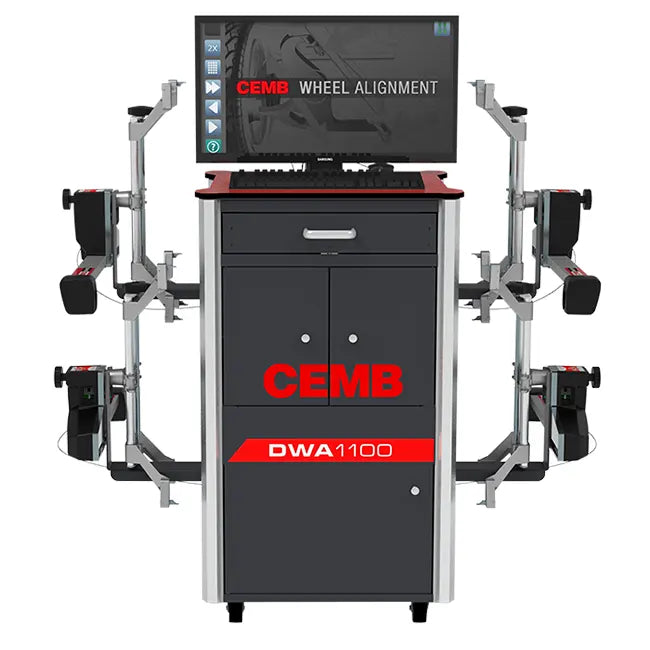

Cemb DWA1100 Wireless 8 Sensor CCD Wheel Alignment System

CEMB’s DWA1100 total vehicle wheel alignment machine improves safety and driver comfort, reduces fuel consumption and tire wear.

CEMB’s DWA1100 CCD total vehicle Wheel alignment system for cars and light trucks. Unit complete with new cabinet, computer control system, sensors and all accessories required for alignment operations.

CCD (Charged Coupled Device) sensor technology, featuring state-of-the-art electronic components enables a quick and accurate measurement of all alignment parameters by simply following a procedure field tested through many years of experience.

Database

The new vehicle model ranking system allows a rapid and clear selection of the different vehicles.
The CEMB truck database contains more than 50.000 vehicles and is constantly updated.

Lithium Batteries

Featuring a long durability when batteries are charged.
The batteries are immune to the ''memory effect'' and can be recharged at any time.

Radio communication 2,4 GHz

The radio communication between sensors and computer uses a frequency of 2,4 GHz. This technology features a stable and reliable communication over a lengthy period.
There are 7 different channel communications available which can be useful in cases of multiple installations and/or solving interference problems.

MEMS Accelerometer

Together with the CCD cameras, the MEMS accelerometer (derived from the aeronautical field), provides the acquisition of the alignment parameters of wheels. It measures the sensor inclinations according to the two main axles (caster and camber).
The accelerometer has completely substituted the previous pendulum-tipe inclinometers which were very delicate and sensitive to shocks. No more problems due to shocks.

Dedicated electronics

The system features an industrial type computer, Windows based, solid state SSD Sata, USB interface. No moving parts (DVD/CD) that can cause problems. Direct Shut-Down technology.

User friendly Software

Features very clear and user-friendly graphics. The software system, entirely developed by CEMB, guides the user through all the alignment operations. Complete with AUDIT function for the identification of driving problems, resulting from measures not contemplated in the specifications to support the regulation service

App for remote control

Wheel alignment App that enables the replication on your smartphone or tablet of the wheel alignment monitor, acting as remote control to operate on the machine software.

• 8 sensor CCD technology
• DSP processing
• Four shock resistant BT2 wireless rechargeable alignment heads with charging station standard
• Featherweight alignment heads. Only 5.75 lbs each
• LITHIUM BATTERIES: 24 hours of work, 1 year guaranteed
• MEMS static accelerometers provide the latest in measuring technology (newest measuring technology)
• 12" - 24″ wheel clamping range (30'' optional)
• SUNLIGHT FILTER: over 12 m wheelbase even in outdoor sun exposed environment
  Simple and user-friendly software
• Windows based software with multiple languages
• Complete vehicle and customer database with alignment specification 40+ years
• User friendly software to guide technician
• Color printer
• 27″ TFT monitor
