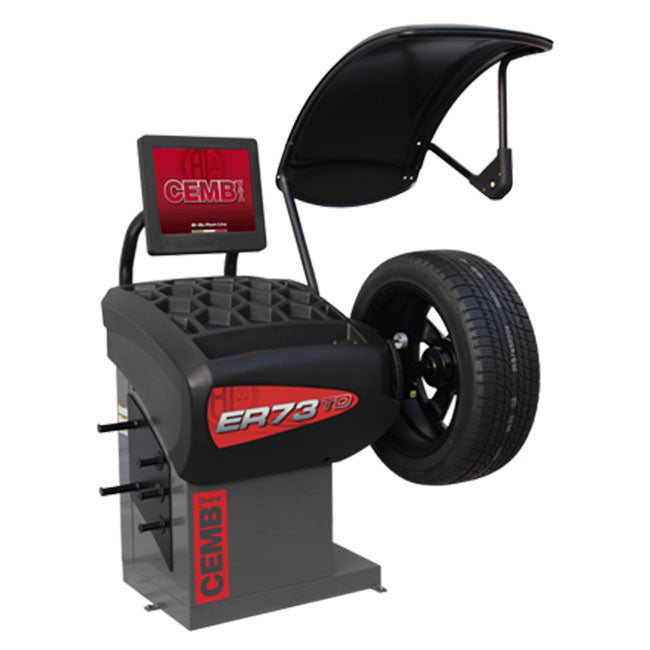

CEMB ER73TD Adaptive OPB Wheel Balancer with Video Touch Screen

The CEMB Video Touchscreen Wheel Balancer ER73TD is made especially for busy tire shops. This new series has the latest technology in wheel balancing, “Spotter” lasers that actually pinpoints the exact location of stick-on wheel weights. This is done with little or no chance of operator error when entering dimensions (major cause of check spin errors).
Full Time Static on screen for a perfect balance. The automatic arm measures diameters up to 30″, automatic entry of the dimensions with width sonar 3D. It comes fully assembled.

AutoAdaptive Mode
The innovative tolerance calculation system AutoAdaptive Mode is based on the evaluation of the residual imbalance limit value corresponding to an acceptable perceived vibration. For each wheel that is balanced, the software AutoAdaptive Mode detects weight and dimensions and calculates the tolerance value that will cancel any vibration perceived on the steering wheel. AutoAdaptive Mode grants the highest comfort when driving, and together with OPB Program, saves balancing time.

One Plane Balancing
OPB (One Plane Balancing), eliminates both static and dynamic unbalance with a single counterweight, indicating the exact position to apply the weight inside the rim. The balancer automatically detects if it is possible to correct both unbalances with only one weight, and activates OPB program (One Plane Balancing). A real revolution in wheel balancing. OPB saves you time and money while maximizing your productivity.

Laser Spotter
During the correction, the LASER SPOTTER pinpoints the exact position for stick-on weights application inside the rim. Thanks to the electric brake – which locks the wheel into the exact angular position of the unbalance – and the laser spotter you avoid possible errors during the weight application making the balancing process faster, simpler and more precise.

Features

  • Professional digital wheel balancer especially designed for tire dealers
  • One Plane Balancing (OPB)
  • AutoAdaptive™ Mode
  • Automatic Approach
  • Manual Locking
  • Automatic Distance & Diameter Entry with Width Sonar (3D)
  • Fully automatic Spotter Laser System for best correction possible
  • Full-time accuracy with Static unbalance always displayed on screen
  • LED to light the wok space inside the rim
  • New automatic arm to measure automatically diameters up to 30"
  • Standard locking with Quick Nut
  • Electromagnetic brake for easy weight placement
  • Available 110VAC or 220VAC
  • Wide working space
  • Direct selection ounces/grams
  • Optimization program for compensation of rim and tire unbalance
  • One Button Split & Hidden Weight Program

    WARNING: This product may expose you to chemicals including lead which are known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov

    Specifications

    • Shaft Size 40mm
    • Max. Tire Diameter 42" (1,016 mm)
    • Rim Diameter 10" - 30" (265 - 765 mm)
    • Rim width 1.5" - 20" (40 - 510 mm)
    • Maximum Wheel Weight 165 lbs. (75kg)
    • Balancing Speed < 100 rpm
    • Balancing Accuracy < 0.1 oz (< 1 g)
    • Operating Temperature 32-113 °F (0-45 °C)
    • Average cycle time 5 seconds
    • Balancing speed 100 rpm
    • Power Supply 110VAC or 220VAC / 50/60 Hz / 1 ph
    • Gross Shipping Weight 370 lbs (168 Kg)
