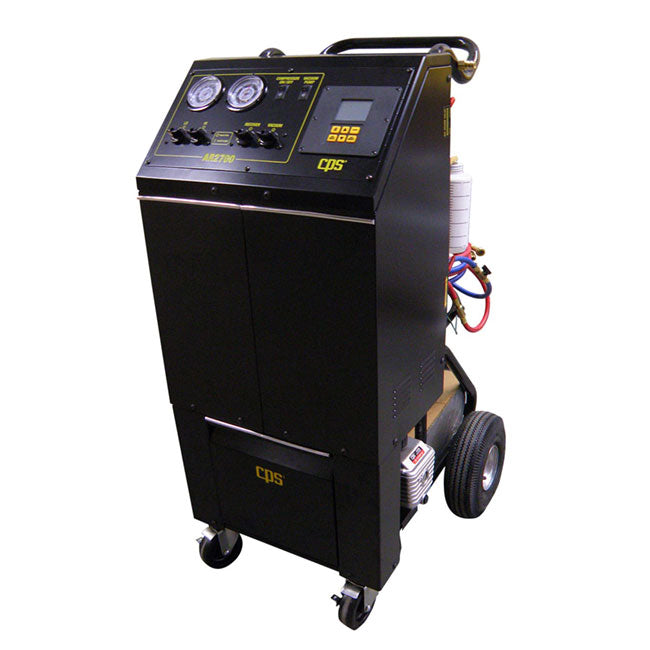

CPS Products AR2700M A/C Multi-Refrigerant Recovery and Recycling Machine

Specifications

• Compressor: 12.67 cc Twin Cylinder Oil-less
• Tank Size: 50 lbs
• Heater Band: No
• Condensor: No
• Operating Range: 32°F (0°C) to 120°F (49°C)
• Suction Pressure Gauge: -30 inch Hg to 125 PSIG
• Discharge Pressure Gauge: 0 to 500 PSIG
• Filtration: 16 cubic inch drier with moisture indicator
• Manual Control Valves: Ball Type Valves to control HI, LO, Recover, and Vacuum
• Charging Valve: 12 VDC Solenoid Valve
• Overload Protection: 15A Thermal Breaker
• High Pressure Shut-off: 30 bar (450 psig)
• Refrigerants: R134a, R12, R22, R502, R404a, R402a, R401a, R407c, R409a
• Single or Multiple Refrigerant: Multiple
• Vacuum Pump: 6 CFM
• Construction: 1'' Heavy-duty tubular frame construction; 10'' pneumatic wheels, 4.5'' swivel casters
• Power Source: 115 VAC 60Hz 1Ph
• Power Consumption: 500 W
• Dimensions: 22" W x 24.5" D x 42" H
• Weight: 120 lbs (54.5 kg) (Not including tank)
• Shipping Box Dimensions: 43'' x 25.5'' x 28'' (1092.2 x 647.7 x 711.2 mm)
• Pallet Size (H x W x D): 28'' x 24'' x 5'' (711.2 x 609.6 x 127 mm)
• Shipping Weight: 230 lbs

Documents

Product Sheet

Product Manual

Shipping

This Item Qualifies for FREE LTL SHIPPING  (via Truck)  it applies only to destinations within the 48 contiguous United States. Alaska, Hawaii, and any/all US territories and international orders are excluded.

LTL Freight Shipping Options

• LIMITED ACCESS - commercial / non-commercial / Farms.(+ $85.00).
• I have a forklift for unloading Freight at My Business location
• Deliver to local freight terminal for pickup.
• Lift Gate Is Required.(+$150.00)
• Residential Delivery.(+ $85.00)

Please select one of the choices above BEFORE adding to the cart!

PLEASE NOTE:
This item ships by truck. If you Require to ship to a Non-Commercial Address, please email  or call (321)-423-5290 so we can give you an updated shipping Quote.

Please Review our Terms of Service, Shipping Policy, Return & Refund, Policy Pages.

Warranty Information

CPS Products, Inc. guarantees that all products are free of manufacturing and material defects to the original owner for one year from the date of purchase.

If the equipment should fail during the guarantee period it will be repaired or replaced (at our option) at no charge. This guarantee does not apply to equipment that has been altered, misused or solely in need of field service maintenance. All repaired equipment will carry an independent 90 day warranty. This repair policy does not include equipment that is determined to be beyond economical repair.

Please submit a Warranty Claim direct on CPS Products Manufactures website ..

CPS P/N DESCRIPTION WARRANTY

CC220 SCALE 1 YR

CC800A SCALE 1 YR

5-2-1 Series Compressor Saver 3 YR

LS780B LEAK DETECTOR 1 YR

TM Series THERMOMETER 1 YR

RM REFRIGERANT MONITOR 1 YR

MA Series MANIFOLD 1 YR

MB Series MANIFOLD 1 YR

MV Series MANIFOLD 1 YR

VG Series VACUUM GAGES 1 YR

TR Series RECOVERY UNITS 1 YR

TRS21 RECOVERY UNITS 1 YR

BTB300/BTBXH Tube Bender 1 YR

MD100/50 Digital Manifold 1 YR

FT800FN CONCENTRIC FLARING TOOL W/RATCHET 1 YR

TRS600 TRS600 2 CYL REC UNIT 1 YR

BTLDTW DIGITAL TORQUE WRENCH 1 YR

LS790B LEAK DETECTOR 2 YR

LS1 LEAK DETECTOR 2 YR

LS2 LEAK DETECTOR 2 YR

LDA1000H LEAK DETECTOR 2 YR

VP Series VACUUM PUMPS 2 YR

EELD100A SMOKE MACHINE 2 YR

EELD600HD SMOKE MACHINE 2 YR

EELD500 SMOKE MACHINE 3 YR

Note: All REPAIRS come with a 90 DAY Warranty

For all other smoke machine models, please refer to the owner's manual warranty section

For warranty questions, please email CPS Products Direct.

For repair questions, please email CPS Products Direct

Warranty Registration should be done direct on the Manufacturers website .

Disclaimer: This summary is based on published warranty information but may not be comprehensive. For full details, it is best to review the specific warranty policy for your product and contactCPS Products directly.
