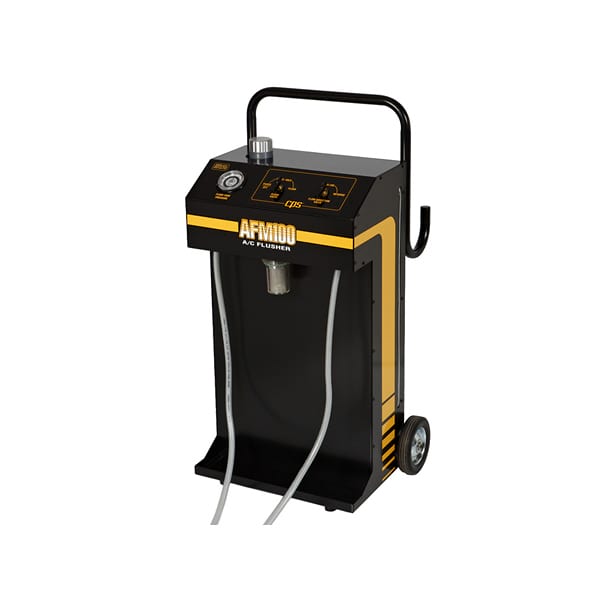

CPS Products AFM100 A/C Flushing Machine


A/C Flush Machine

CPS Products AFM100 A/C Flushing Machine

  • VENDOR:-   CPS Products
  • SKU#   CPS-AFM100
In Stock
  • $1,128.46
    Unit price per
  • Save $170.52

- +
Only 0 left!

Documents

CPS Products AFM100 A/C Flushing Machine is Used to Flush an A/C system

MODEL# AFM100

The AFM100 A/C Flusher machine is a valuable tool to any technician. Avoid repeat repairs due to system contamination. The purpose of flushing is to remove debris and contaminated oil, which renews and extends the life of the A/C system. This is done with only shop air and a good flushing solution. Comes with 8 foot hoses and universal couplers that will feet most connections, the 2-1/2 gallon capacity can do cars to buses. Most cars will only require 2 quarts where as a bus may need a full 2-1/2 gallons to reach all the hoses. There is a clear filter bowl for viewing of flushing solution to see what you are removing.

Flush Procedure
CPS Products, Inc. recommends flushing the A/C system any time the compressor is replaced or system contamination is suspected. This procedure is necessary to remove contaminants generated by a failed or worn compressor. A/C system contaminants are the major cause of replacement compressor failures. The preferred method of A/C system cleaning is the use of a closed loop flushing system. A flushing machine, such as the AFM100, is highly recommended for a more complete and thorough cleanup procedure. An alternate method of system cleaning is the use of a flush gun and shop air. This method does not move enough liquid flush to properly remove contaminants.

Individual Flushing
The condenser is the primary receptacle of compressor generated contamination. The condenser should be flushed in the REVERSE flow direction. Remove the inlet and outlet lines from the condenser. Introduce the flush chemical into the OUTLET (Liquid Side) of the condenser. Completely fill the condenser with flush chemicals. Allow the flush chemical to soak in the condenser for approximately ten (10) minutes. Remove the flush chemical by using filtered/dry shop air to blow the flush chemical out of the condenser through the INLET (Discharge Side). Repeat this procedure until all debris and lubricant is removed.

AMF100 AC Flush Machine Panel

To clean the evaporator, remove the inlet and outlet lines, and thermal expansion valve (if applicable) or orifice tube. Follow the same procedure used with the condenser to ensure all debris and lubricant is removed.

Clean all hoses and lines for the A/C system in the same manner. You may flush the complete system in the same process without dismantaling if applicable.

Related Products for Purchase:

AFMSFC Supreme Flush Fluid

* NOTES: NEVER FLUSH THE RECEIVER/DRIER OR ACCUMULATOR, COMPRESSOR OR THERMAL EXPANSION VALVE.

COMPONENTS SHOULD BE AIR PURGED TO REMOVE ALL REMAINING FLUSH CHEMICAL. CPS AFMSF FLUSH IS COMPATIBLE WITH ALL HFC134a LUBRICANTS, O-RINGS, ELASTOMERS, AND HOSE MATERIALS.

FLUSH FLUID AND VAPORS ARE MILDY FLAMMABLE; KEEP AWAY FROM HEAT, SPARKS, AND ELECTRICAL EQUIPMENT. NEVER EXPOSE FLUSH CHEMICALS TO AN OPEN FLAME.

DISPOSAL: INSURE THAT USED PRODUCT AND CONTAINERS ARE PROPERLY DISPOSED OF IN ACCORDANCE WITH ALL LOCAL, STATE AND FEDERAL REGULATIONS

WARNING: This product may expose you to chemicals including lead which are known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov

Specifications

  • Air operated fast and easy to use AC complete system or component flush machine
  • Uses our own innovation in design universal flush adapters
  • Only 2 adapters are required to service 98% of the vehicles and vehicle components on the market today
  • Capable of "FORWARD" and "REVERSE" flushing as well as a unique "FLUSH HOLD" feature allowing the solution to "SOAK" a component before flushing.
  • The AFM100 has two 2 ½ gallon internal tanks making the unit an excellent choice for both heavy and light duty flushing applications
  • Extra Long 8' clear braided hoses are included with the machine
  • The unit has an easy to clean visible stainless steel filter for capturing large particulate
  • All steel construction makes this unit ideal for the working man
  • Comes complete, just add flush and GO.
  • 1 year warranty

Shipping

SHIPPING QUOTE

This Item requires you to fill out a "SHIPPING QUOTE FORM", Please read instructions carefully and fill out all applicable questions. An email will be sent to us with your  items you intend to purchase and the shipping address. We will give you our best Freight rate to your "COMMERCIAL BUSINESS ADDRESS".

Once we receive a quote from the carrier we will email you with a full break down of price for cost of items, Sales Tax and Shipping Cost. At this point if you are happy with the price you will be able to click on a link in the email and it will go straight to our secure site were you can check out securely. If for any reason you need assistance or have concerns that need to be addressed please don't hesitate to call us directly at 706-478-0072. We will be more than happy to assist you.

Documents

CPS AFM100 Product Sheet

CPS AFM100 Product Manual
