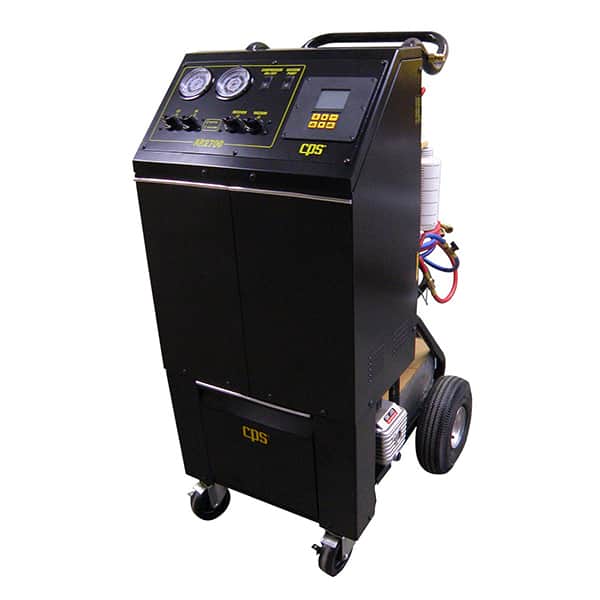

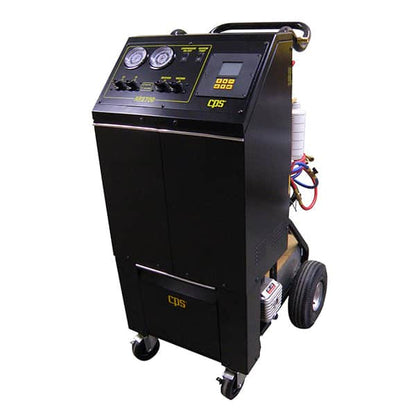

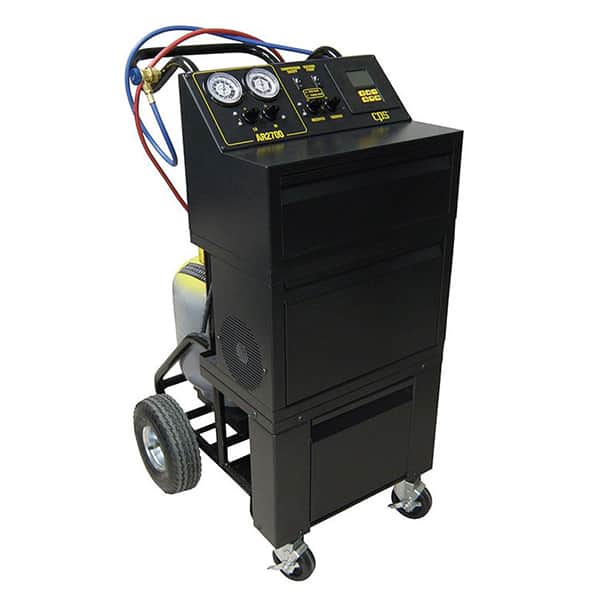

CPS Products AR2700TA10 Semi-Automatic Single Refrigerant Recovery/Recycle & Recharge with 90 lb. tank
CPS Products AR2700TA10 Semi-Automatic Single Refrigerant Recovery/Recycle & Recharge with 90 lb. tank
Ships within (1 - 3 Business Days)
SKU: AR2700TA10
Couldn't load pickup availability
Description
CPS Products AR2700TA10 is a configured AR2700 with a larger capacity applications e.g. Transit Authority - 90 lb. Tank and 10 CFM vacuum pump and VG200 vacuum gauge Included
MODEL# AR2700TA10
AR2700 configured for large capacity applications e.g. Transit Authority - includes 90 lb. tank, 10 CFM vacuum pump and VG200 vacuum gauge
The AR2700, AR2700J, AR2700E does not contain a pump down valve and is meant for single refrigerant operation. The AR2700M, AR2700MJ, AR2700ME contains a pump down valve for mutiple refrigerant usage. Mixing of refrigerants will cause the user economic loss.
• Semi-Automatic simple to use Recovery, Recycle, Evacuate and Recharge machine. Built for the working man.
• Utilizes manual ball valves in place of solenoids making the AR2700 impervious to contamination and sealants.
• Simple operation for oil waste and air purge
• Microprocessor controlled recharge makes the AR2700 accurate to 1/10 oz or 4 grams
• Easy to read high and low-pressure gauges
• High efficiency 6 CFM vacuum pump will dehydrate the system to 50 microns
• All steel durable construction
• The AR2700 can be programmed for 50LB, 90LB, 40 Kilogram tank.
•Comes with a 50Lbs tank included with the purchase of an AR2700
• 115 Volts, 50/60 HZ, Single phase, PSI/KPa gauges
• 2 year limited warranty
Prop 65 Warning
WARNING: This product can expose you to chemicals including Lead which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov.
Specifications
|
Compressor Type |
1/3 HP reciprocating compressor |
|
Dimensions |
22" W x 24.5" D x 42" H |
|
Weight |
120 lbs (does not include tank weight) |
|
Operating Range |
0° C (32° F) to 49°C (120°F) |
|
Power Source |
115 VAC 60Hz 1Ph |
|
Power Consumption |
500 W |
|
Suction Pressure Gauge |
-30 inch Hg to 125 PSIG |
|
Discharge Pressure Gauge |
0 to 500 PSIG |
|
Filtration |
16 cubic inch drier w/ moisture indicator, .7 micron oil separator |
|
Manual Control Valves |
Ball Type Valves to control HI, LO, Recover, and Vacuum |
|
Charging Valve |
12 VDC Solenoid Valve |
|
Construction |
1" Heavy duty tubular frame construction with 10" pneumatic wheels, 4.5" swivel casters |
|
Overload Protection |
15A Thermal Breaker |
|
High Pressure Shut-Off |
30 bar (450 psig) |
|
Refrigerants* |
R134a, R12, R22, R502, R404a, R402a, R401a, R 407c, R409a |
|
Single or multiple refrigerant |
Single |
