Description

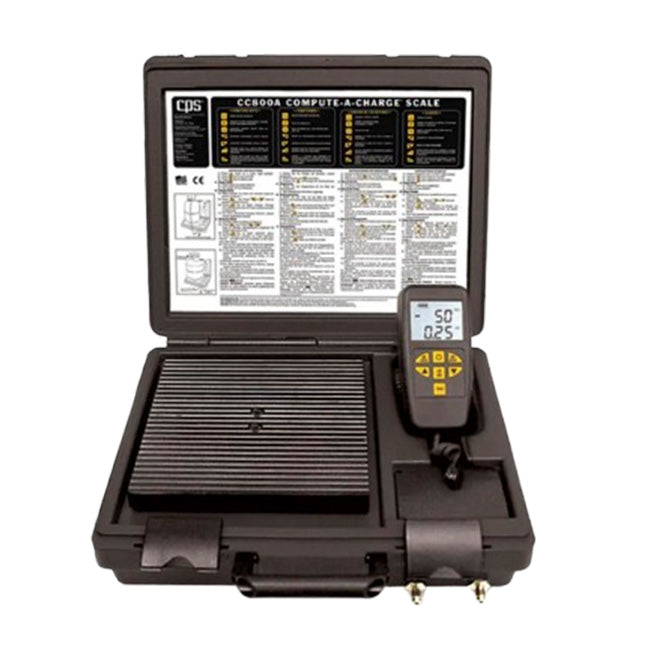

CPS Products CC800A Automatic Programmable Charging/Recovery Scales High Capacity Scale

MODEL# CC800A

  • 220 lb (100 kg) capacity / 0.25 oz (1 g) resolution
  • Programmable for automatic charging or recovery via the built-in solenoid valve
  • Accommodates 30, 50, 90 & 125 lb cylinders
  • Removable 8.75˝ platform for operation in or out of the protective case
  • Easy to read, fast response measurement
  • Visual and mechanical overload protection

CC800A Scale Features

  • The world's most advanced strain gage bridge load cell technology
  • Unparalleled accuracy, precision, and reliability
  • Calibrated to strict NIST (National Institute of Standards & Technology) standards
  • Ergonomic handheld remote controls with large, high contrast wide-angle LCD displays
  • Rugged cast aluminum platform and base assemblies for stability and long life
  • Electronic and mechanical overload protected to withstand 150% of capacity
  • Environmentally sealed and temperature compensated for reliable operation in extreme environments
  • Automatic tare upon start up and manual zero function
  • Magnetic backing on hand held display for mounting to metal services or 360° swivel hanging hook
  • Durable protective transport case enables operation of scale in or out of the enclosure
  • Ideal for critical charging of systems large or small and all refrigerant recovery applications
  • The widest range of programmable, manual, or wireless/hand-held configurations

CPS charging scales are in conformity with the following standards or other normative documents

  • EN 61326:2006 (Electrical equipment for measurement, control, and laboratory use – EMC Requirements)
  • IEC 61000-4-2:2001 (Electrostatic Discharge Immunity Test)
  • IEC 61000-4-3:2008 (Radiated, radio-frequency, electromagnetic field immunity test
  • Designed and manufactured in the USA with U.S. and globally sourced component

See Other Related producsts:

CC840W | Compute-A-Charge Wireless Scale

CCD110 | Compute-a-Charge Scale

WARNING: This product may expose you to chemicals including lead which are known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov

Specifications

Type Corded Handheld (with LCD Display)
Programmable Solenoids Yes
Maximum Load 220 lb (100 kg)
Platform Dimensions 8.75˝ x 8.75˝ (22.3 x 22.3 cm)
Display to Scale Connection Flexcord
Auto-Off  Automatic shut-off after 10 minutes of inactivity
Smart Awake Scale displays last weight present at time of Auto-Off
Transmission Range n/a
Frequency Range n/a
Power Source Remote: (2) 9V Alkaline (Included)
Continuous Battery Life 30 hr
Display Resolution, oz (gm) Increments .25 oz /10 gm
Weight Accuracy 0.05% of reading, or ± 0.25 oz/10 gm (whichever greater)
Unit Weight 8.5 lb (3.9 kg)
Display Flex Cord Length 6' Extended
Maximum Working Pressure 500 Psig  34,5 Bar
Maximum Operating Differential 485 Psig 33,5 Bar
Rubber Platform Cover No
Weight Readout lb & oz, or kg & gm
Protective Case Molded Carrying Case
Tare (Empty) Weight Mode Yes
Overload Protection Mechanical (Internal Overload Stop)
Battery Status Indicator 3 Segment Symbol (Display)
Remote Control Mount Magnetic Back and 360° Swivel Hook
Operating Temperature Range 14°F to 122°F (-10°C to 50°C)
Operating Humidity Range 0% to 95% (Non-Condensing)
Approvals CE, C-Tick
