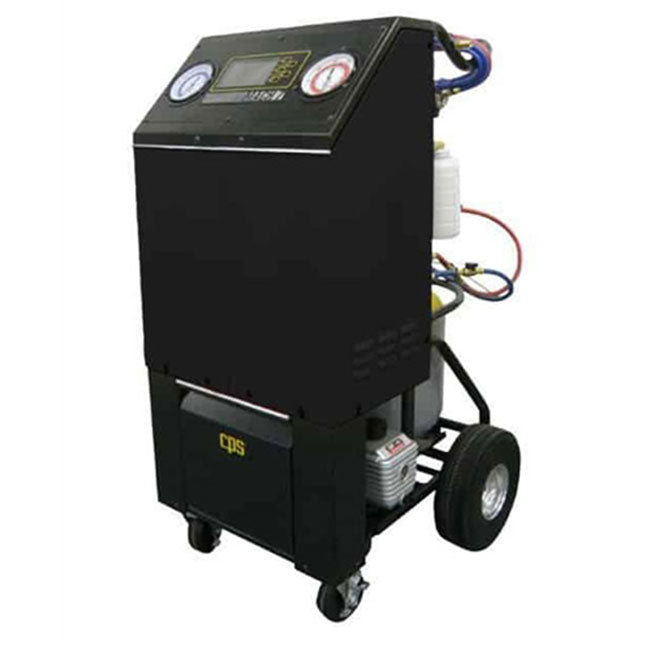

CPS Products FA1000 Refrigerant Recovery, Recycling, and Recharge (RRR) Management Center

Specifications

• Power Requirements: 115V 60Hz
• Compressor: Patented 2-cylinder oil-less design for enhanced reliability and performance
• Vacuum Pump: 2-stage, 2 CFM, 1/3 HP, for efficient evacuation
• Gauges:
  • Low-side: 3.5'', 30 in/Hg to 250 psi
  • High-side: 3.5'', 0 to 600 psi
• Hoses: 10 Ft. (3.0 m), barrier type with manual couplers
• Refrigerant Compatibility: R-134a, with other refrigerants configurable via software
• Maximum Recovery Rate: Up to 1 Lb (0.453 kg) per minute
• Storage Tank: Includes a 30 lb tank, upgradeable to 50 lbs
• Display: 7'' color touch-screen for intuitive operation
• Construction: Heavy-duty steel frame construction with powder-coated finish
• Operating Temperature Range: 50°F to 122°F (10°C to 50°C)
• Operating Humidity Range: 0% to 95% (non-condensing)
• Dimensions: 43.6'' x 22.6'' x 28.9'' (110.7 cm x 57.4 cm x 73.4 cm)
• Gross Weight: 208 lbs (94.3 kg), including packaging
• Water Capacity: 47.7 lbs / 21.7 kg
• DOT Specification: DOT04BA-400
• Service Pressure: 400 PSIG
• Mobility: 10" pneumatic rear wheels and 4" swivel casters
• Warranty: 1-year comprehensive coverage

Documents

Product Sheet

Product Manual

Shipping

This Item Qualifies for FREE LTL SHIPPING  (via Truck)  it applies only to destinations within the 48 contiguous United States. Alaska, Hawaii, and any/all US territories and international orders are excluded.

LTL Freight Shipping Options

• LIMITED ACCESS - commercial / non-commercial / Farms.(+ $85.00).
• I have a forklift for unloading Freight at My Business location
• Deliver to local freight terminal for pickup.
• Lift Gate Is Required.(+$150.00)
• Residential Delivery.(+ $85.00)

Please select one of the choices above BEFORE adding to the cart!

PLEASE NOTE:
This item ships by truck. If you Require to ship to a Non-Commercial Address, please email  or call (321)-423-5290 so we can give you an updated shipping Quote.

Please Review our Terms of Service, Shipping Policy, Return & Refund, Policy Pages.

Warranty Information

CPS Products, Inc. guarantees that all products are free of manufacturing and material defects to the original owner for one year from the date of purchase.

If the equipment should fail during the guarantee period it will be repaired or replaced (at our option) at no charge. This guarantee does not apply to equipment that has been altered, misused or solely in need of field service maintenance. All repaired equipment will carry an independent 90 day warranty. This repair policy does not include equipment that is determined to be beyond economical repair.

Please submit a Warranty Claim direct on CPS Products Manufactures website ..

CPS P/N DESCRIPTION WARRANTY

CC220 SCALE 1 YR

CC800A SCALE 1 YR

5-2-1 Series Compressor Saver 3 YR

LS780B LEAK DETECTOR 1 YR

TM Series THERMOMETER 1 YR

RM REFRIGERANT MONITOR 1 YR

MA Series MANIFOLD 1 YR

MB Series MANIFOLD 1 YR

MV Series MANIFOLD 1 YR

VG Series VACUUM GAGES 1 YR

TR Series RECOVERY UNITS 1 YR

TRS21 RECOVERY UNITS 1 YR

BTB300/BTBXH Tube Bender 1 YR

MD100/50 Digital Manifold 1 YR

FT800FN CONCENTRIC FLARING TOOL W/RATCHET 1 YR

TRS600 TRS600 2 CYL REC UNIT 1 YR

BTLDTW DIGITAL TORQUE WRENCH 1 YR

LS790B LEAK DETECTOR 2 YR

LS1 LEAK DETECTOR 2 YR

LS2 LEAK DETECTOR 2 YR

LDA1000H LEAK DETECTOR 2 YR

VP Series VACUUM PUMPS 2 YR

EELD100A SMOKE MACHINE 2 YR

EELD600HD SMOKE MACHINE 2 YR

EELD500 SMOKE MACHINE 3 YR

Note: All REPAIRS come with a 90 DAY Warranty

For all other smoke machine models, please refer to the owner's manual warranty section

For warranty questions, please email CPS Products Direct.

For repair questions, please email CPS Products Direct

Warranty Registration should be done direct on the Manufacturers website .

Disclaimer: This summary is based on published warranty information but may not be comprehensive. For full details, it is best to review the specific warranty policy for your product and contactCPS Products directly.
