A/C Vacuum Pump

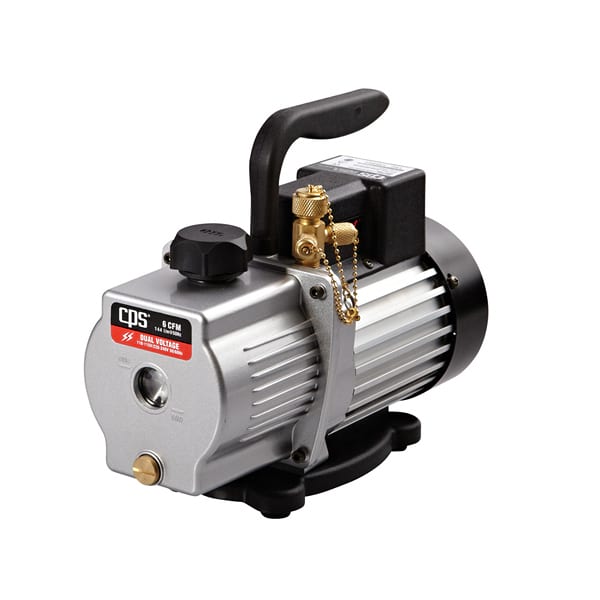

CPS Products VP6S Pro-Set 6 CFM Vacuum Pump
- VENDOR:- CPS Products
- SKU# CPS-VP6S
Documents
CPS Products VP6S Vacuum Pump, Inlet Port Size 1/4" and 3/8" Flare, 1/2" ACME, Displacement 6.0 cfm, 1/2 HP
MODEL# VP6S
The VP6S Pro-Set® Premium Series vacuum pump is a 6 CFM, single-stage unit with a versatile dual voltage 1 / 2 HP motor. The VP6S unit boasts the same high quality, high value features engineered into all of our Pro-Set® vacuum pumps providing performance excellence and years of reliable service.
VP6S Key Features:
- Dual voltage operation 110-120V / 220V 50 / 60Hz
- Exceptional ultimate vacuum rating as low as 50 microns
- Advanced air cooled motor design for operation in high ambient temperatures
- Proprietary oil mist free exhaust port cap for clean, safe job environment
- Gas ballast valve speeds achievement of deep vacuum
- Multiple port connections for 1 / 4", 3 / 8" and 1 / 2" ACME
- Easy maintenance with large oil sight glass and fill port with easily accessible oil drain port
- Solid rubber base provides extreme shock resistance
- Sure-grip handle ergonomically designed for superior comfort and portability
- Proprietary spring-activated polymer-based exhaust valve enables a 99.999% seal on the discharge port of the vacuum pump mechanism
- Improved materials selection including hardness and additives, reduces wear and prevents gallings
- Improved internal oiling system design extends life and improves vacuum performance
Specifications
- Power: 110V-120V / 220V 50 / 60 Hz USA plug
- Stage: Single
- Motor Size (HP) RPM @ 50 / 60 Hz: 1 / 2 (HP) 2880 / 3440 RPM
- Dimensions: 13.1″ x 5.5″ x 10″
- Weight: 22.5 lb / 10.2 kg
- Operating Temperature Range: 0 °C (32 °F) to 52 °C (125 °F)
- Ultimate Vacuum: as low as 50 mirons
- Oil Capacity: 19 oz / 550 ml
- Overload Protection: Motor thermally protected, dual voltage units have extra IEC fuse
- Control System: On-off power switch
