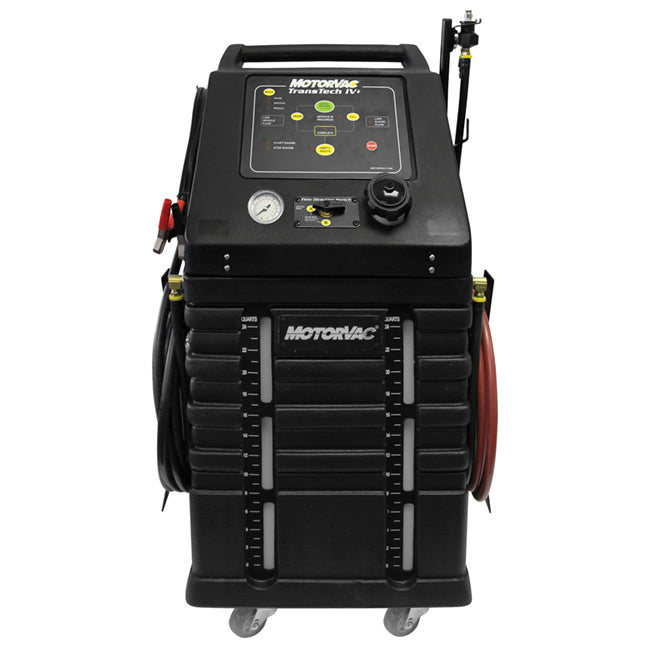

CPS TransTech IV+ ATF Exchange System with Adapters PN 500-1125B
CPS TransTech IV+ ATF Exchange System with Adapters PN 500-1125B
Ships within (1 - 3 Business Days)
SKU: 500-1125B
Couldn't load pickup availability
Description
CPS TransTech IV+ ATF Exchange System with Adapters PN 500-1125B
Model: TransTech IV+
Part Number: 500-1125B
The CPS TransTech IV+ combines both inline and dipstick-based automatic transmission fluid exchange capabilities into a single compact unit. Designed for maximum versatility, it includes both Standard Adapters (PN 200-3100A) and Deluxe Adapters (PN 200-3101A), enabling effective service on a broad range of vehicles. Whether cooler lines are easily accessible or not, the TransTech IV+ offers efficient fluid exchange through either method with minimal operator intervention.
Includes STD adapters (PN 200-3101A)
Key Features
- Inline Exchange: Connect to cooler lines for a full transmission flush in a 1-to-1 fluid ratio.
- Dipstick Exchange: A no-tool-required method for vehicles with hard-to-reach or corroded cooler lines.
- Automatic Inline Exchange: One-button operation allows techs to walk away during service.
- Drain Pan Feature: Facilitates clean and easy transmission pan draining for filter changes.
- Cooler Flush Feature: Flushes both transmission cooler and lines thoroughly.
- Patented Level Synchronization: Prevents overfilling or underfilling.
- Automatic Bypass: Maintains fluid supply to transmission throughout the service.
- 26 qt. Fluid Reservoirs: Large capacity tanks accommodate high-volume applications.
- High Volume Pump: Ensures quick and reliable fluid exchange.
Warranty Information
Warranty limited to one (1) year from customer purchase date. Proof of Purchase required.
Prop 65 Warning
WARNING: This product can expose you to chemicals including Lead which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov.
Specifications
- Model: TransTech IV+
- Part Number: 500-1125B
- Input: 12 VDC, 8 A
- New Fluid Capacity: 26 qt. (24.6 L)
- Waste Tank Capacity: 26 qt. (24.6 L)
- Length of Power Cord: 10 ft. (3 m)
- Length of Hose: 10 ft. (3 m)
- Machine Dimensions (H x W x D): 39 in. x 21 in. x 17 in.
- Carton Dimensions (H x W x D): 41 in. x 24 in. x 19 in.
- Shipping Weight: 90 lbs. (40.8 kg)
