EM/OTR High Tonnage Jacks

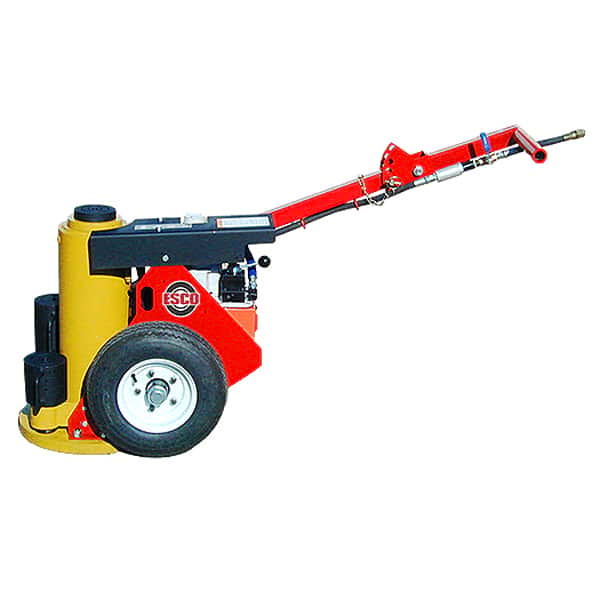

ESCO 10322 Jumbo Jack, 100T, Minimum Height 27", 14-3/4" Stroke
- VENDOR:- ESCO
- SKU# ESC-10322
Description
ESCO 10322 Jumbo Jack, 100T, Minimum Height 27", 14-3/4" Stroke
MODEL# 10322
he ESCO Jumbo Jack Series is available in multiple lifting capacities ranging from 100 tons to 250 tons. All models are air/hydraulic powered and are balanced for easy moving. Lift extension saddles are stores in the jacks base for easy adjustment to various lifting heights. Stacking aluminum safety locking ring are an option as in air powered wheel drive for easy moving. All models are built with heavy duty lifting holes. Each Jumbo Jack has a maximum width of 23" and will fit into tight clearance railroads, mines, and construction sites.

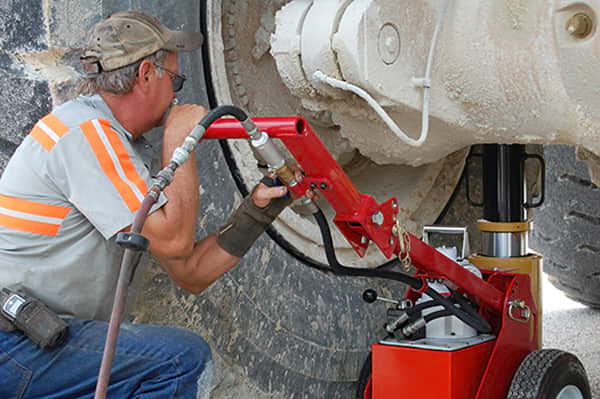

- Ideal for Giant Tire Changing, Mining, Railroads, and Construction Rigging
- Balanced for easy moving with large pneumatic wheels
- Minimum 90 to 150 psi air supply needed to power hydraulic pump
- 50" long, 8 position handle for easy maneuvering
- All Jumbo Jacks come with 1″ saddle, 5″ & 9″ extensions (Locking Rings Sold Separately)
Available Accessories:
Specifications
- Extensions Holders For Easy Storage

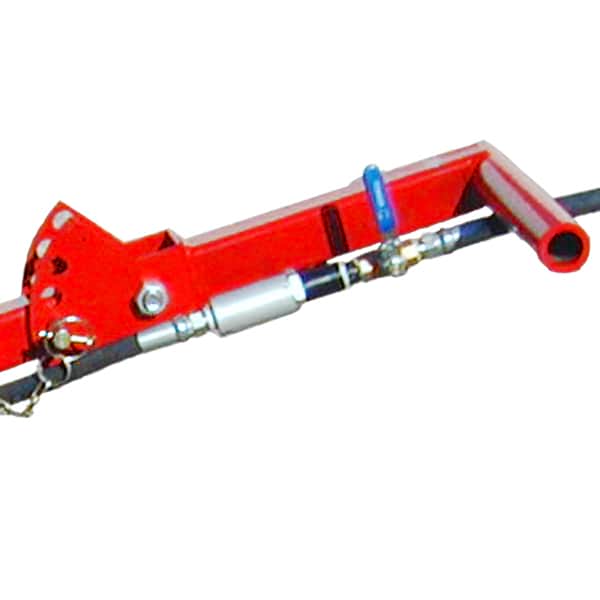

- 8 Position Handle For Easy Maneuvering
- Air Controlled Valve

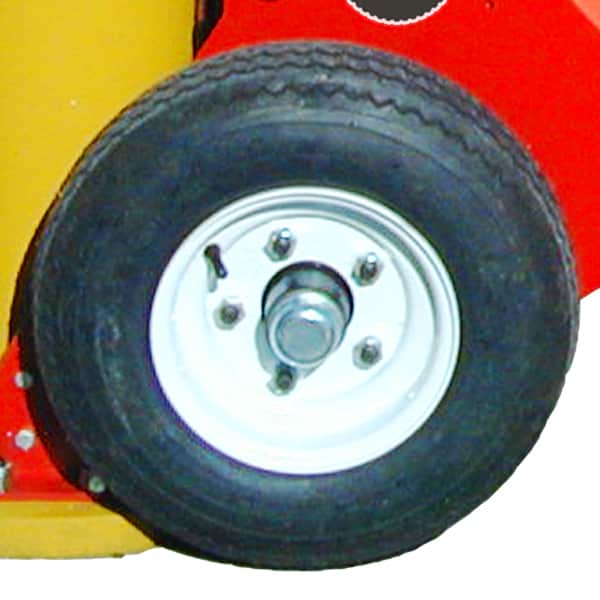

- XL Wheels For Easy Moving
- Lifting Capability: 100 Tons
- Lowest Point: 27″ | 686mm
- Stroke: 14.75″ | 375mm
- Weight: 860 lbs. | 390 kg
Shipping
SHIPPING QUOTE
This Item requires you to fill out a "SHIPPING QUOTE FORM", Please read instructions carefully and fill out all applicable questions. An email will be sent to us with your items you intend to purchase and the shipping address. We will give you our best Freight rate to your "COMMERCIAL BUSINESS ADDRESS".
Once we receive a quote from the carrier we will email you with a full break down of price for cost of items, Sales Tax and Shipping Cost. At this point if you are happy with the price you will be able to click on a link in the email and it will go straight to our secure site were you can check out securely. If for any reason you need assistance or have concerns that need to be addressed please don't hesitate to call us directly at 706-478-0072. We will be more than happy to assist you.
Documents
Video
ESCO JUMBO JACK
