ESCO 10382 Pro Series 20 Ton ''Shorty'' Air Hydraulic Bottle Jack
ESCO 10382 Pro Series 20 Ton ''Shorty'' Air Hydraulic Bottle Jack
BRAND: ESCO
SKU: 10382
In Stock
Couldn't load pickup availability

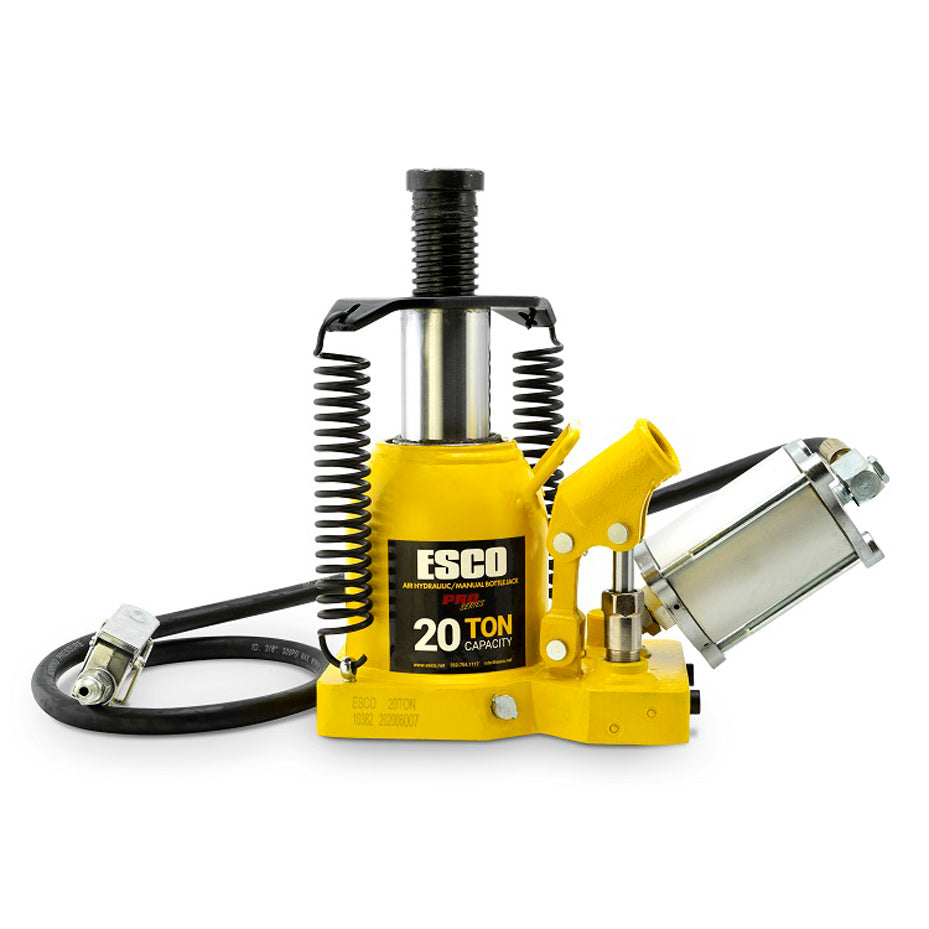

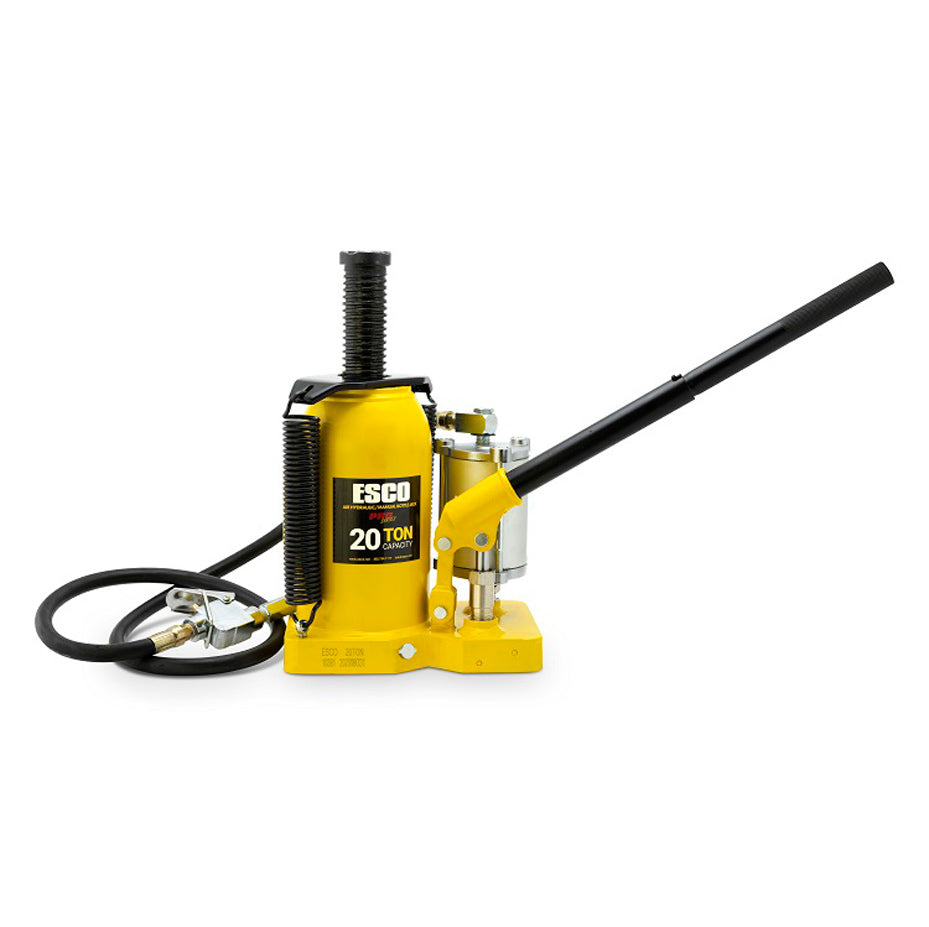

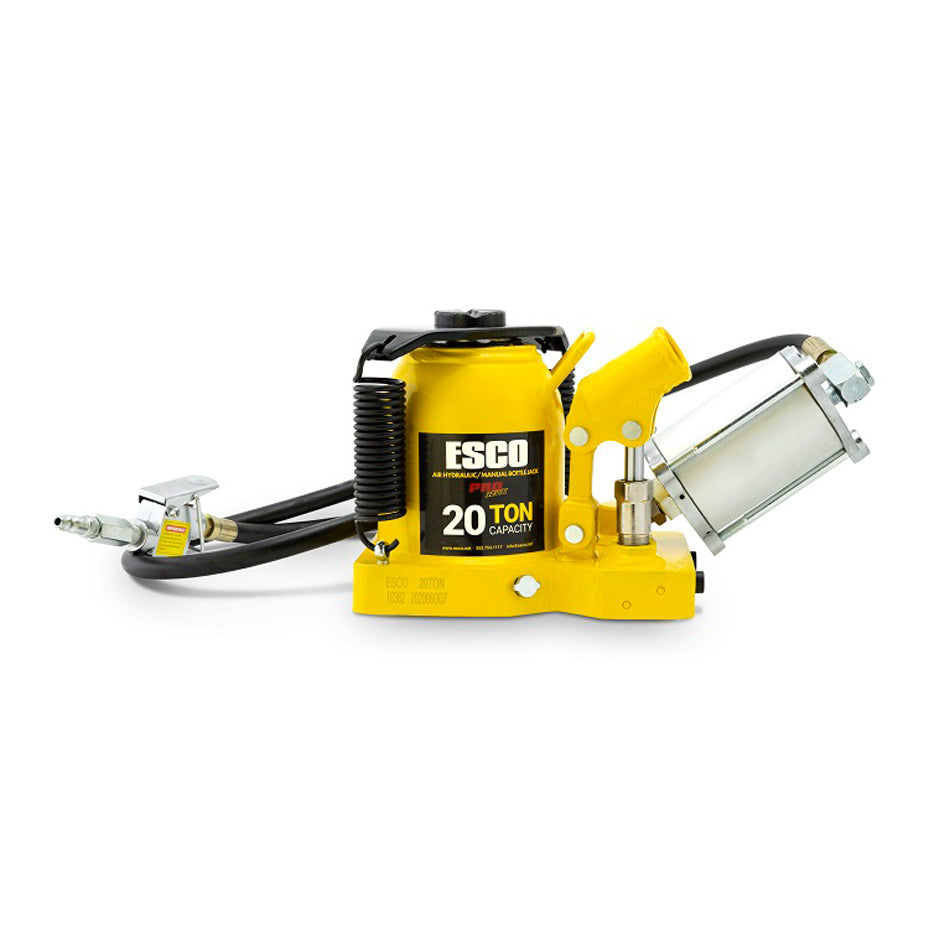

ESCO 10382 Pro Series 20 Ton ''Shorty'' Air Hydraulic Bottle Jack
Model #10382
The ESCO Pro Series 20 Ton “Shorty” Air Hydraulic Bottle Jack is designed for low-clearance lifting in commercial, agricultural, and industrial applications. Built for strength and longevity, this jack features a fully welded cylinder, heavy-duty base, and chrome-plated piston. It is operated manually or via air with the included 4 ft. air hose and trigger, and includes safety mechanisms like overload protection and a double spring design for smooth descent.
- Low-profile design ideal for confined spaces
- Fully welded cylinder and frame ensure long-term durability
- Heavy-duty base offers outstanding stability in rugged conditions
- Double spring system ensures safe and controlled descent
- Air and manual operation options included
- Chrome-plated piston resists corrosion and wear
- Adjustable extension screw for precision height control
- Includes 4 ft. air hose with trigger, inline filter, and airflow latch
- Air motor is built with wear-resistant components for long service life
Prop 65 Warning
WARNING: This product can expose you to chemicals including Lead which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov.
- Capacity: 20 Ton (40,000 lbs.)
- Min. Height: 7.125 in.
- Max. Height: 12.625 in.
- Ram Travel: 3.25 in.
- Screw Adjustment: 2.5 in.
- Saddle Width: 1.75 in.
- Base Thickness: 1.25 in.
- Base Size (L x W): 8.25 x 5.75 in.
- Inner Package: 15.125 x 7.875 x 8.125 in.
- Outer Package: 15 x 8 x 8 in.
- Net Weight: 34 lbs.
- Gross Weight: 35 lbs.
- Air Inlet Fitting: 1/4 in. NPT
- Air Pressure: 110–125 psi
- Warranty: 1-Year
- UPC: 816904024864
Shipping
This is a Plus Shipping item which only can be shipped to destinations within the 48 contiguous United States. Alaska, Hawaii, and any/all US territories and international orders are excluded.
Price will be calculated at check-out.
UPS Shipping rates are calculated based on actual and dimensional weights. To find your rate, add the item to your cart and then enter your zip code into the right hand side of the shopping cart. If your total UPS order is over 120 lbs, the system will not calculate charges.
Shipping Responsibility Disclaimer
Once a package is marked as "Delivered" by the carrier, we are no longer responsible for its whereabouts unless you specifically requested a signature requirement at checkout. If no signature is requested and the package goes missing after delivery, we cannot be held liable for the loss. Additionally, any delivery issues must be reported to us within 12 hours of the marked delivery time. Failure to notify us within this timeframe may result in a forfeiture of claims, as delayed reporting significantly reduces the chances of locating a misdelivered package. If you would like to add insurance to your shipment to protect against potential loss or theft, please inform us before your order ships. Insurance is not included by default.
*Note: If you are having trouble checking out, please call us at (321)-423-5290.
OR
If you have a special shipping request you need arranged, please email
or call us.
Please Review our Terms of Service, Shipping Policy, Return & Refund, Policy Pages.
SHIPPING COST DISCLAIMER
Shipping can be very complicated, especially with LTL Freight items, and it can be challenging to always quote the exact shipping price with complete accuracy. We do not make money from shipping and only pass along the actual shipping cost charged by the carrier.
If the shipping cost we quoted or provided is less than the actual amount charged by the carrier, we reserve the right to not honor the sale at that shipping price and may cancel the order if necessary. However, before any order is canceled, you will be given the opportunity to pay any additional shipping charges if you choose to do so.
Warranty Information
Limited Warranty
Products sold by Equipment Supply Company (ESCO) are warranted to be free from defects in material and workmanship under proper use, application, and maintenance in accordance with ESCO's written recommendations, instructions, and specifications for a period of 1 year (365 days) from the date of shipment to the end user, unless otherwise noted. ESCO's obligation under this warranty is limited to, and the sole remedy for any such defect shall be the repair or replacement (at ESCO's discretion) of unaltered parts returned to ESCO, freight prepaid, and proven to have such defect, provided such defect occurs within the 90-day warranty period (or otherwise noted) and is reported within 14 days of occurrence.
This is the only authorized ESCO warranty and is in lieu of all other express or implied warranties or representations, including any implied warranties of merchantability or fitness. Warranty claims must be submitted and be processed in accordance with ESCO's established warranty claim procedure. In no event will ESCO be liable for business interruptions, loss of sales and/or profits, personal injury, costs of delay, or for any other special, indirect, incidental or consequential losses, costs, or damages.
Warranty is done direct with the manufacuturer, Equipment Supply Company (ESCO) .
Disclaimer: This summary is based on published warranty information but may not be comprehensive. For full details, it is best to review the specific warranty policy for your product and contact Esco directly.
