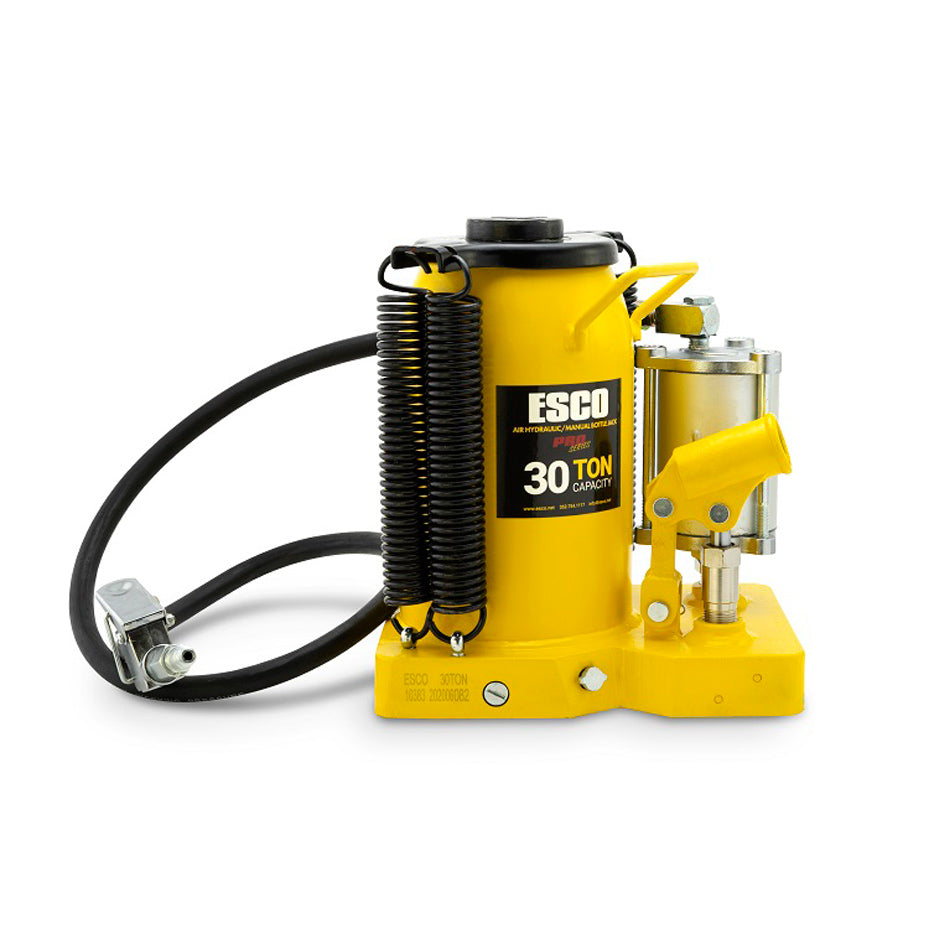

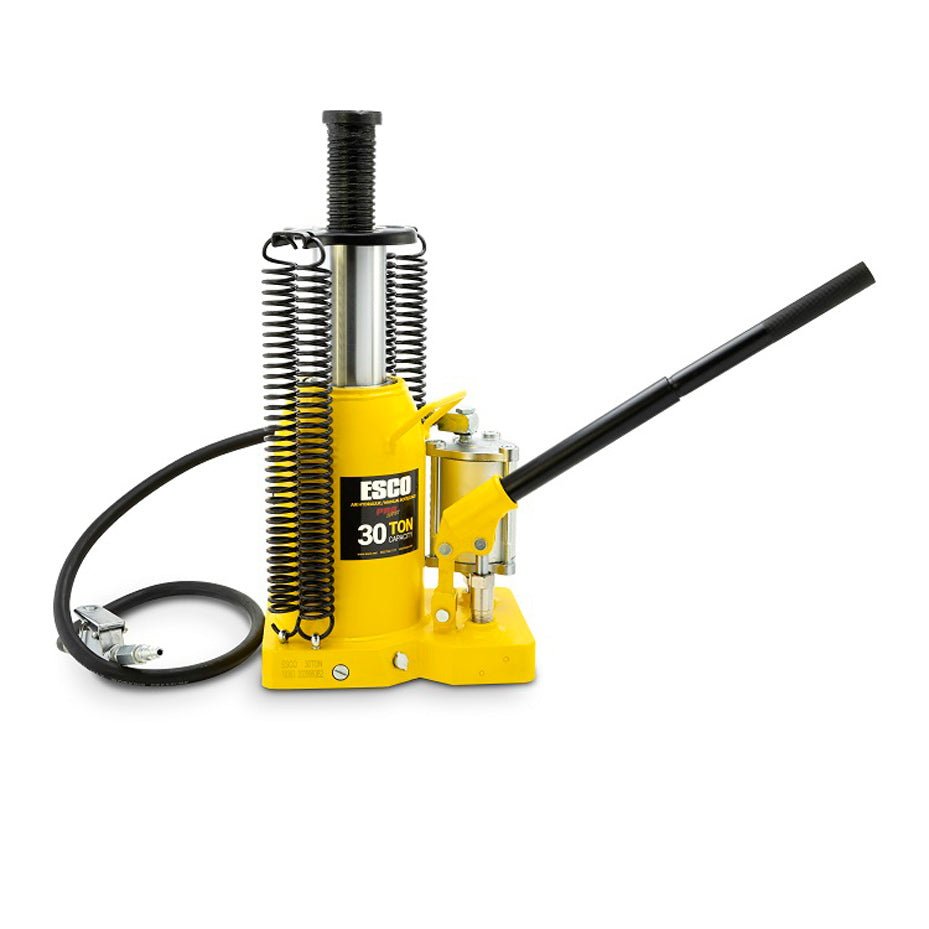

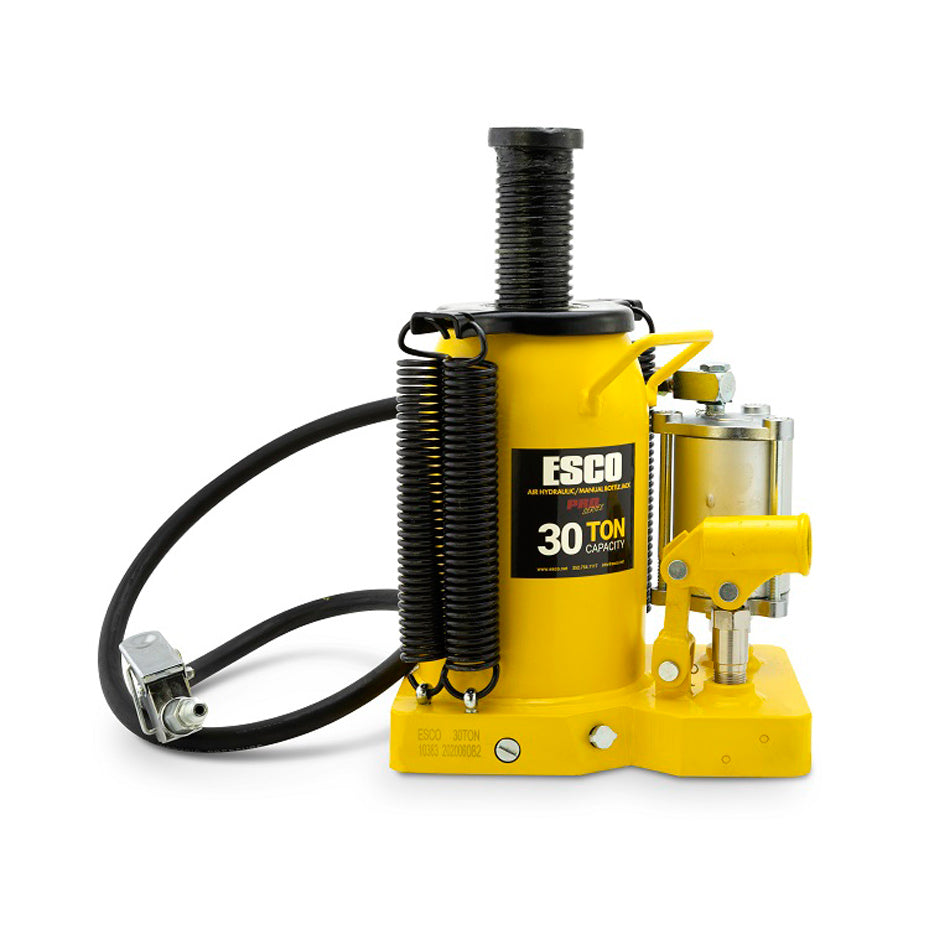

ESCO 10383 Pro Series 30 Ton Air Hydraulic Bottle Jack
ESCO 10383 Pro Series 30 Ton Air Hydraulic Bottle Jack
Ships within (1 - 3 Business Days)
SKU: 10383
Couldn't load pickup availability
Description
ESCO 10383 Pro Series 30 Ton Air Hydraulic Bottle Jack
Model #10383
The ESCO Pro Series 30 Ton Air Hydraulic Bottle Jack is engineered for heavy-duty lifting in the commercial truck, bus, and farm equipment sectors. With its fully welded cylinder and robust construction, this jack offers reliable performance in demanding environments. Operable via air or manual handle, it includes safety and performance features like a chrome-plated piston, dual spring descent system, and a swivel-end air hose with inline filter and air trigger latch.
- 30 Ton (60,000 lbs.) lifting capacity for heavy-duty applications
- Fully welded cylinder and frame for strength and durability
- Extra thick base provides superior stability on rugged terrain
- Designed for use with commercial trucks, buses, tractors, and farm equipment
- Chrome-plated piston resists corrosion and wear
- Built-in safety valve prevents overloading
- Double spring design allows controlled and safe descent
- Adjustable screw extension helps achieve precise height adjustments
- Operates using air or manually with included two-piece handle
- Includes 4 ft. swivel end air hose with push-button trigger and 1/4 in. NPT fitting
- Inline air filter and latch mechanism for consistent airflow and extended air motor life
- Heavy-duty chrome-plated air motor with wear-resistant components
Prop 65 Warning
WARNING: This product can expose you to chemicals including Lead which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov.
Specifications
- Capacity: 30 Ton (60,000 lbs.)
- Min. Height: 10.875 in.
- Max. Height: 20 in.
- Ram Travel: 6 in.
- Screw Adjustment: 3.75 in.
- Saddle Width: 1.75 in.
- Base Thickness: 1.5 in.
- Base Size (L x W): 9.625 x 7.125 in.
- Inner Package: /
- Outer Package: 11 x 10 x 12 in.
- Net Weight: 63 lbs.
- Gross Weight: 64 lbs.
- Air Inlet Fitting: 1/4 in. NPT
- Air Pressure: 110–125 psi
- Warranty: 1-Year
- UPC: 816904024888
