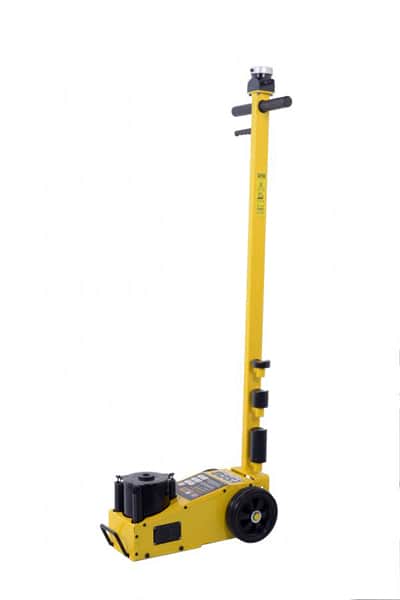

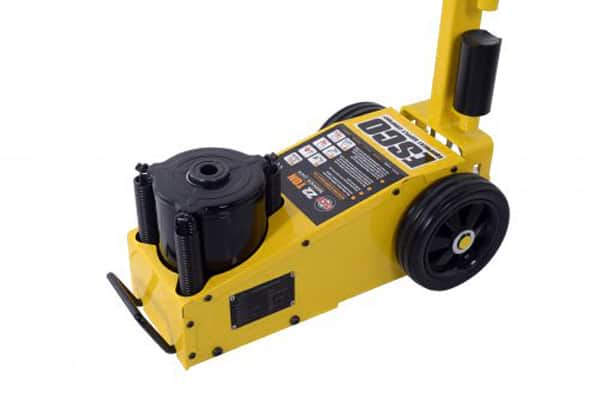

ESCO 10390 22 Ton Air/Hydraulic Floor Jack
ESCO 10390 22 Ton Air/Hydraulic Floor Jack
Ships within (1 - 3 Business Days)
SKU: 10390
Couldn't load pickup availability
Description
ESCO 10390 22 Ton Air/Hydraulic Floor Jack
MODEL# 10390
The 22 Ton ESCO Professional Air Hydraulic Service Jack MODEL 10390 is designed to meet and exceed expectations of a quality jack at a
competitive market value. Unlike competitive jacks, the Model 10390 is 100% air up and air down, and is designed/manufactured based on years of research and reengineering.

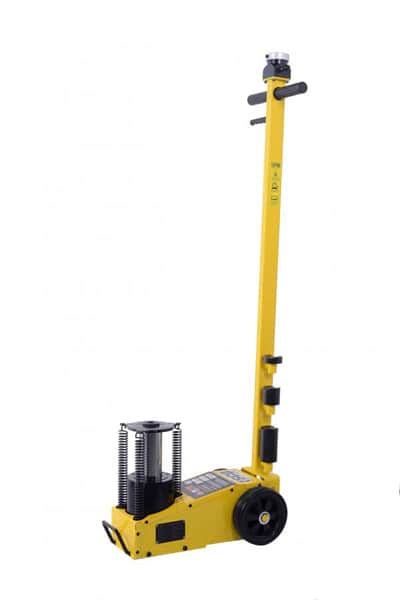

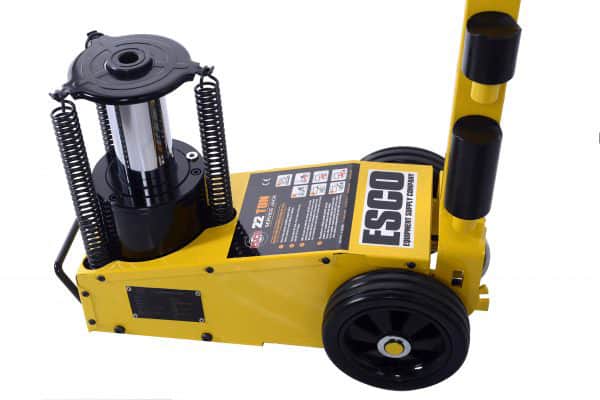

The 3-Spring Design allows for much more controlled ascending and descending of the cylinder. Cylinder casing has been redesigned, along with the cylinder, to decrease the ability for debris to get into the cylinder/air motor and damage the jack. Redesigned Air Pneumatic design allows for the jack to ascend with air and descend with air. No more manual descending of the jack. 3-Spring design also better stabilizes the cylinder which prevents unnecessary movement of the cylinder while lifting the vehicle.
Prop 65 Warning
WARNING: This product can expose you to chemicals including Lead which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov.
Specifications

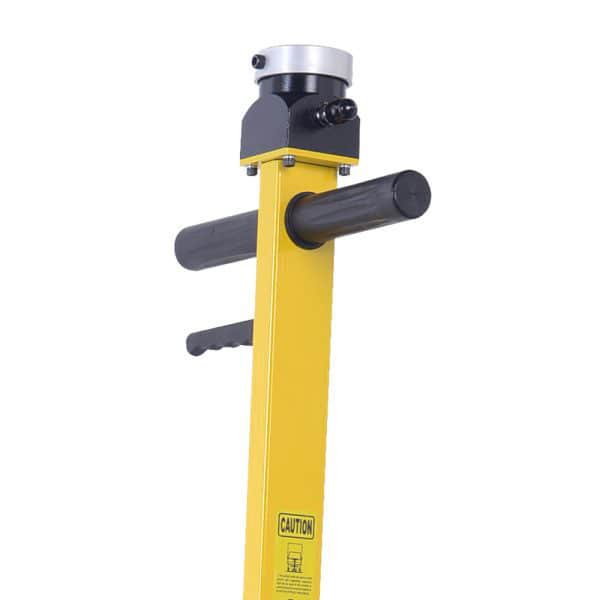

- Strong more durable handle with built in air up and air down function.
- Rubber coated handled grips for better handing and comfort while using the jack.
- Three-Spring Design Versus Convention Two-Spring Design: Makes Descending of jack quicker and more controlled.
- Included (3) Extensions & Saddles [0.75"/2"/4"]
- Heavy Duty wheels - designed for constant use and longevity of life.
Lifting Capacity: 22 Tons | 44,000 lbs.
Min. Height: 8.5″ | 215mm
Lifting Height: 5.5″ | 141mm
Screw Extension: 3.35″ | 85mm
Max. Height: 21.35″ | 542mm
Weight: 66 lbs. | 30 kg
Video
22 Ton Air Hydraulic Service Jack [MODEL 10390]
Shipping
This is a Plus Shipping item which only can be shipped to destinations within the 48 contiguous United States. Alaska, Hawaii, and any/all US territories and international orders are excluded.
Price will be calculated at check-out.
UPS Shipping rates are calculated based on actual and dimensional weights. To find your rate, add the item to your cart and then enter your zip code into the right hand side of the shopping cart. If your total UPS order is over 120 lbs, the system will not calculate charges.
Shipping Responsibility Disclaimer
Once a package is marked as "Delivered" by the carrier, we are no longer responsible for its whereabouts unless you specifically requested a signature requirement at checkout. If no signature is requested and the package goes missing after delivery, we cannot be held liable for the loss. Additionally, any delivery issues must be reported to us within 12 hours of the marked delivery time. Failure to notify us within this timeframe may result in a forfeiture of claims, as delayed reporting significantly reduces the chances of locating a misdelivered package. If you would like to add insurance to your shipment to protect against potential loss or theft, please inform us before your order ships. Insurance is not included by default.
*Note: If you are having trouble checking out, please call us at (321)-423-5290.
OR
If you have a special shipping request you need arranged, please email
or call us.
Please Review our Terms of Service, Shipping Policy, Return & Refund, Policy Pages.
Warranty Information
Limited Warranty
Products sold by Equipment Supply Company (ESCO) are warranted to be free from defects in material and workmanship under proper use, application, and maintenance in accordance with ESCO's written recommendations, instructions, and specifications for a period of 1 year (365 days) from the date of shipment to the end user, unless otherwise noted. ESCO's obligation under this warranty is limited to, and the sole remedy for any such defect shall be the repair or replacement (at ESCO's discretion) of unaltered parts returned to ESCO, freight prepaid, and proven to have such defect, provided such defect occurs within the 90-day warranty period (or otherwise noted) and is reported within 14 days of occurrence.
This is the only authorized ESCO warranty and is in lieu of all other express or implied warranties or representations, including any implied warranties of merchantability or fitness. Warranty claims must be submitted and be processed in accordance with ESCO's established warranty claim procedure. In no event will ESCO be liable for business interruptions, loss of sales and/or profits, personal injury, costs of delay, or for any other special, indirect, incidental or consequential losses, costs, or damages.
Warranty is done direct with the manufacuturer, Equipment Supply Company (ESCO) .
Disclaimer: This summary is based on published warranty information but may not be comprehensive. For full details, it is best to review the specific warranty policy for your product and contact Esco directly.
