ESCO 10812 YELLOW JACKIT Transmission Jack, 2.2 Ton, Min Hgt: 10", Max Hgt: 35"
ESCO 10812 YELLOW JACKIT Transmission Jack, 2.2 Ton, Min Hgt: 10", Max Hgt: 35"
Ships within (1 - 3 Business Days)
SKU: 10812
Description
ESCO 10812 YELLOW JACKIT Transmission Jack, 2.2 Ton, Min Hgt: 10", Max Hgt: 35"
MODEL# 10812
The Yellow Jackit 2.2 Ton (4,400 lbs.) Transmission Jack is designed with heavy duty lifting in mind. Designed with maximum strength steel and a hefty weight capacity of 2.2 Tons (4,400 lbs.). The units also come with swiveling casters to make it easier to roll across concrete garage floors; making it easier on the technician when removing/installing the transmission. This product is designed for Heavy Duty Truck, Commercial Truck, Bus, Agricultural, Construction equipment and machinery. Made to Conform to ANSI Standards.
- Hydraulic System is protected with safety overload system
- Wide chassis design provides maximum stability

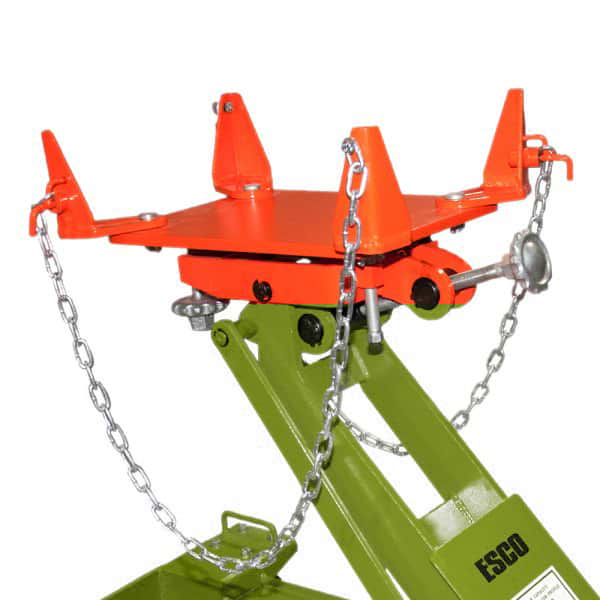

- Fully adjustable universal saddle, brackets and chain sling
- Four 4" swivel casters help move jack easily
- 360 degree rotatable pump handle for operation in any position
- Easy access to relief valve to lower the jack
- Sealed hydraulic unit prevents contamination
Prop 65 Warning
WARNING: This product can expose you to chemicals including Lead which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov.
Specifications
- Min. Height: 10" [254mm]
- Max. Height: 35" [889mm]
- Fully Adjustable Universal Saddle, Brackets, and Chain Sling
- 360 Degree Rotatable Pump Handle
Lifting Capacity: 2.2 Ton | 4,400 lbs.
Min. Height: 10″ | 254mm
Max. Height: 35″ | 889mm
Forward Tilt: 15 Degrees
Rear Tilt: 30 Degrees
Lift Tilt: 12 Degrees
Right Tilt: 12 Degrees
Head Width: 12″ – 18″ | 305mm – 457mm
Head Length: 16″ – 20″ | 406mm – 508mm
Width: 26″ | 660mm
Length: 43″ | 1092mm
Weight: 355 lbs. | 161 kg
