ESCO 20380 Cyclone “Classic” High-Force 5 Gallon Bead Seater

Description

ESCO 20380 Cyclone “Classic” High-Force 5 Gallon Bead Seater

MODEL# 20380

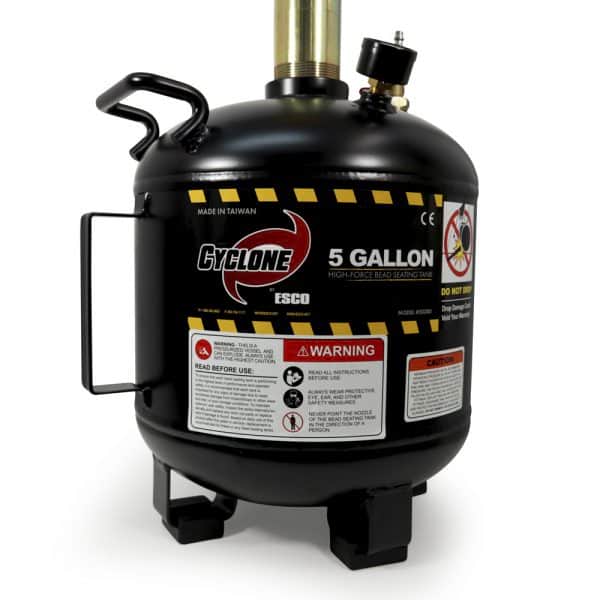

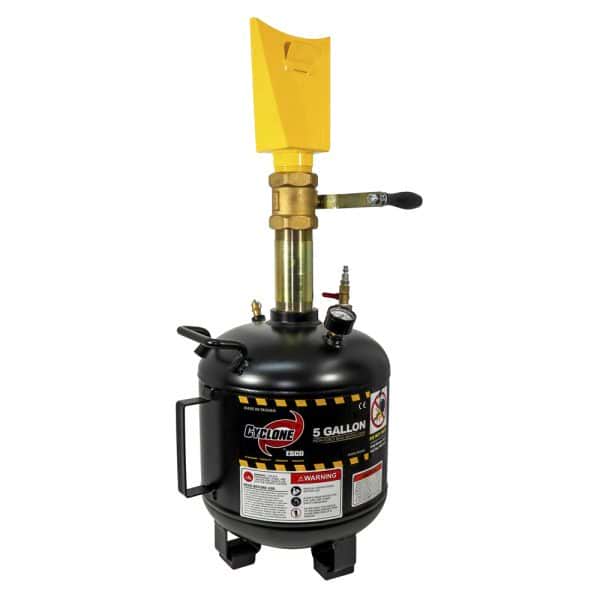

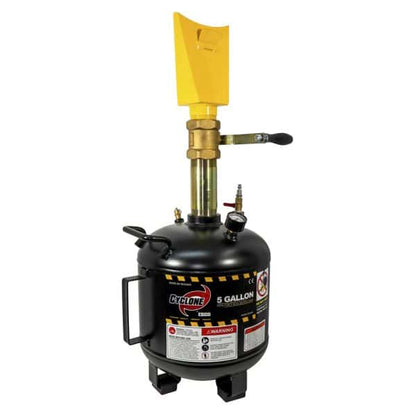

The Cyclone Bead Seating Tank has a 5-gallon capacity ideal for small and medium applications. The ergonomic design is easy to store in an upright position with a robust tank casted out of steel and ASME certified. The Cyclone Bead Seater #20380 is a hassle-free, simple solution to seat tire beads on equipment ranging in sizes from ATV and golf carts up to passenger and light truck applications.

• Classic Designed "End Discharge"- provides greater control and stability while seating
  even the toughest of beads
• Designed for the use in commercial environments; Works on ATV – 24.5" truck tires
• Safety release valve set to 160 PSI
• ASME Certified Tank
• Safety Glasses and ear protection included

Specifications

• Long "Cowbell" Style Barrel locks the bead seater securely to the tire/wheel while inflating

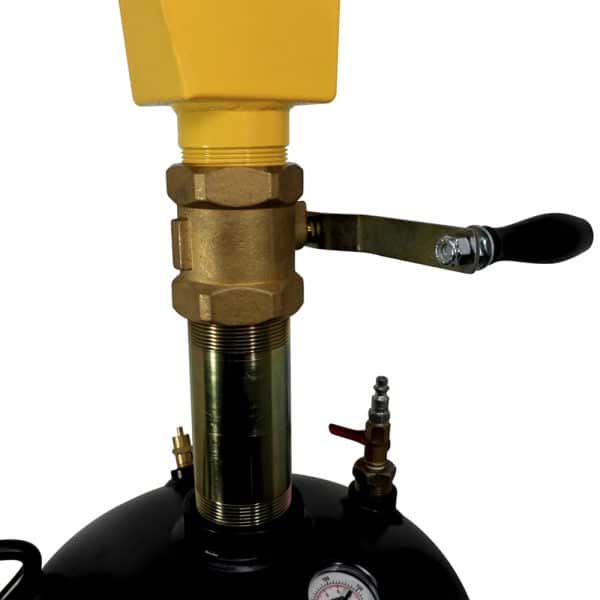

• Push Handle designed butterfly release valve releases air fast and with precise accuracy
• On/Off Valve - for controlled filling of bead seating tank

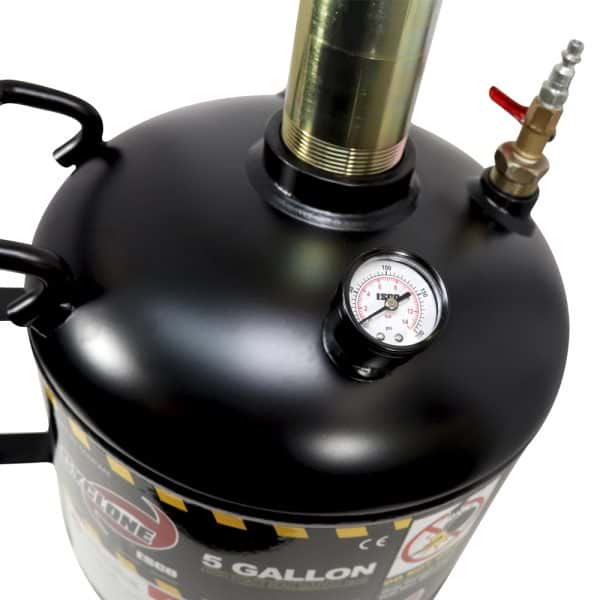

• Air Gauge is designed for accurately filling of tank and is highly visible

Tank Size: 5 Gallon
Material: Steel
Maximum PSI: 165 PSI
Recommended Operating Pressure: 40-155 PSI
Weight: 34 lbs. | 15 kg
Dimensions: 22″ x 13″ x 13″ | 558mm x 330mm x 330mm
