Bead Seaters

ESCO 20390 Bead Seater, Cyclone X-Series, 5 Gallon Steel Tank

  • VENDOR:-   ESCO
  • SKU#   ESC-20390
In Stock
  • $204.95
    Unit price per

- +
Only 0 left!




Important Shipping Information:-
• Orders received on Fridays after 11am EST will be processed the next business day
All orders shipped to a RESIDENTIAL ADDRESS will be subject to Additional charges from all carriers at this time.
What is LIMITED ACCESS - Commercial / Non-Commercial / Farms Click Here to Read More




Description

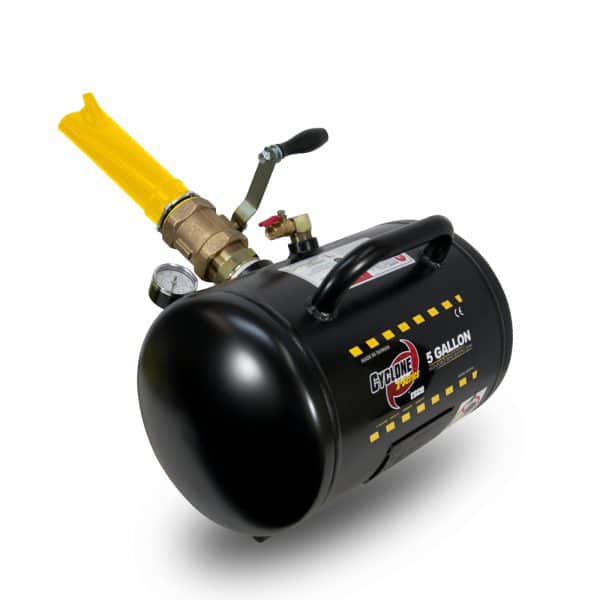

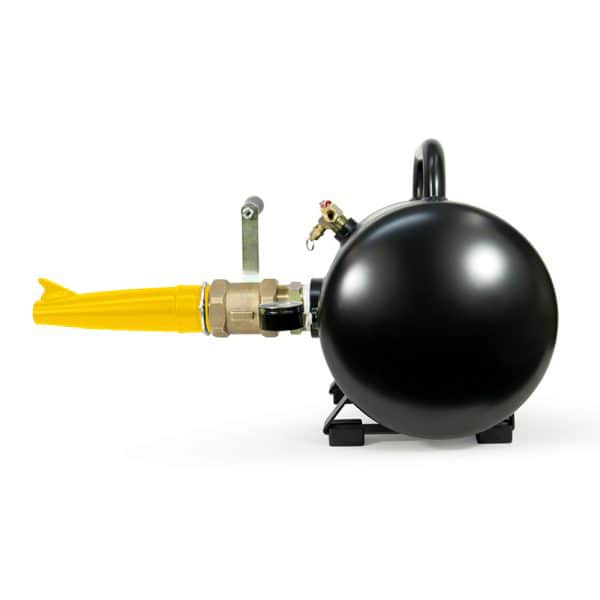

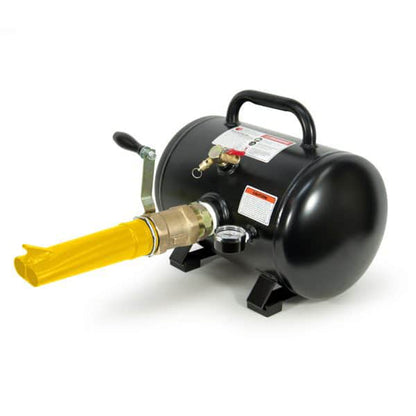

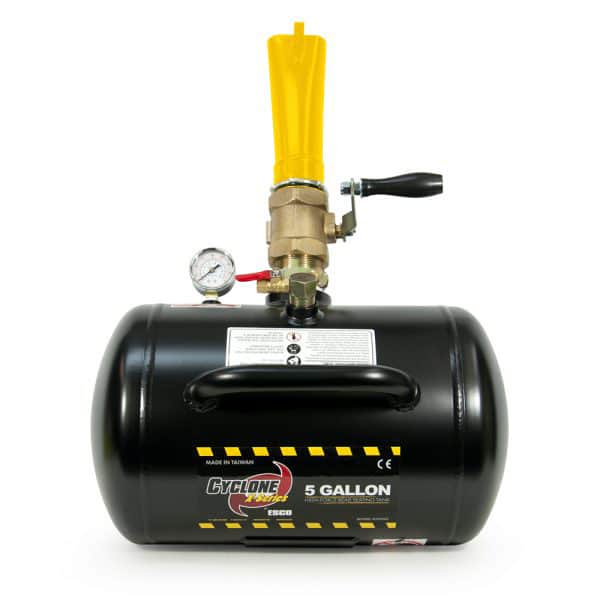

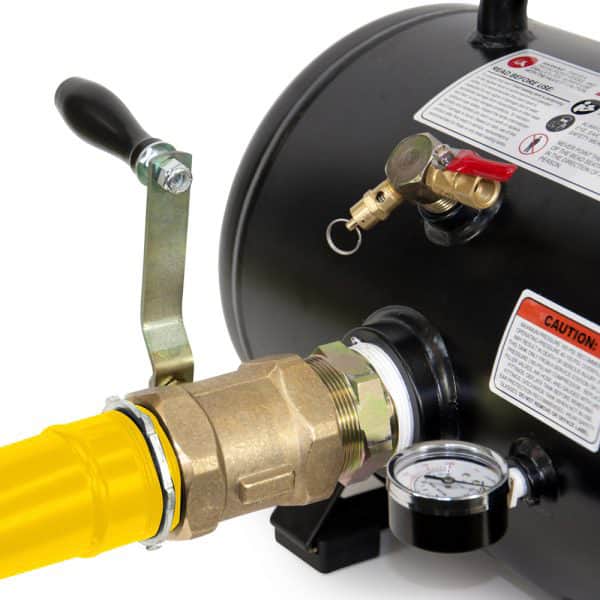

ESCO 20390 Bead Seater, Cyclone X-Series, 5 Gallon Steel Tank

MODEL# 20390

The Cyclone X-Series Bead Seating Tank offers two models for small and medium applications. Both models are equipped with robust air tanks, casted out of steel and ASME certified. The Cyclone X-Series Bead Seaters supply a hassle-free, simple solution to seat the beads on equipment tires ranging from golf carts up to heavy duty and construction application. The Cyclone X-Series 5-gallon Bead Seating Tank (Model #20390) is recommended for small and passenger tire application.

The Cyclone X-Series 10-gallon Bead Seating Tank (Model #20391) is recommended for most commercial tire sizes, skid steers and some tractor tires.

  • Fast & Powerful Discharge System – Quickly releases air and seats tire
  • Ergonomically Designed handle positioning to support full control of tank while seating tire/wheel
  • "High-Force" Discharge Barrel – Designed for precise maximum air release for best seating of the bead the first time
  • ASME Certified Tank
  • Safety Glasses and ear protection included
WARNING: This product may expose you to chemicals including lead which are known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov

Specifications

  • Fast and Powerful Discharge System
  • High-Force 2" Barrel
  • Ergonomically Designed Handle
  • Protective Rubber Coated Feet

Tank Size: 5 Gallon
Material: Steel
Maximum PSI: 165 PSI
Recommended Operating Pressure: 40-155 PSI
Weight: 31 lbs. | 14 kg
Dimensions: 18″ x 14.5″ x 15″ | 457mm x 368mm x 381mm

    Shipping

    This is a Plus Shipping item which only can be shipped to destinations within the 48 contiguous United States. Alaska, Hawaii, and any/all US territories and international orders are excluded.

    Price will be calculated at check-out.

    UPS Shipping rates are calculated based on actual and dimensional weights. To find your rate, add the item to your cart and then enter your zip code into the right hand side of the shopping cart. If your total UPS order is over 120 lbs, the system will not calculate charges.

    *NoteIf you are having trouble checking out, please call us at  (706) 478-0072.

    OR

    If you have a special shipping request you need arranged, please email
     or call us.

    Please Review our Terms of Service, Shipping Policy, Return & Refund, Policy Pages.

    Documents

    ESCO-20390-Product-Sheet

    ESCO-20390-Instruction-Manual
