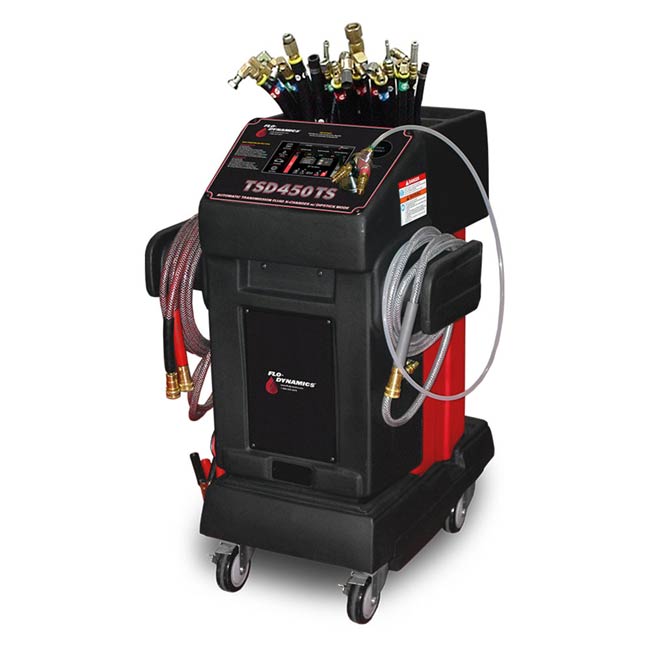

Flo-Dynamics 40400055 | TSD450TS ATF Inline & Dipstick Exchanger w/ Touch Screen
Flo-Dynamics 40400055 | TSD450TS ATF Inline & Dipstick Exchanger w/ Touch Screen
Ships From Manufacturer in 10 Business Days
SKU: 40400055
Couldn't load pickup availability
Description
Flo-Dynamics 40400055 | TSD450TS ATF Inline & Dipstick Exchanger w/ Touch Screen
MODEL : TSD450TS
PART NO: 40400055
When it comes to high-performance and reliable ATF exchangers, the TSD450TS by Flo-Dynamics is an unparalleled asset to the automotive industry. Designed for both efficiency and ease of use, this machine caters to modern requirements while ensuring longevity and precision.
In-depth Features & Benefits:
-
Robust Pump System: At the heart of the TSD450TS is a robust 2.5-gallon per minute pump, ensuring rapid and consistent fluid exchange. This quick turnover time significantly reduces service duration, thereby increasing your shop's efficiency.
-

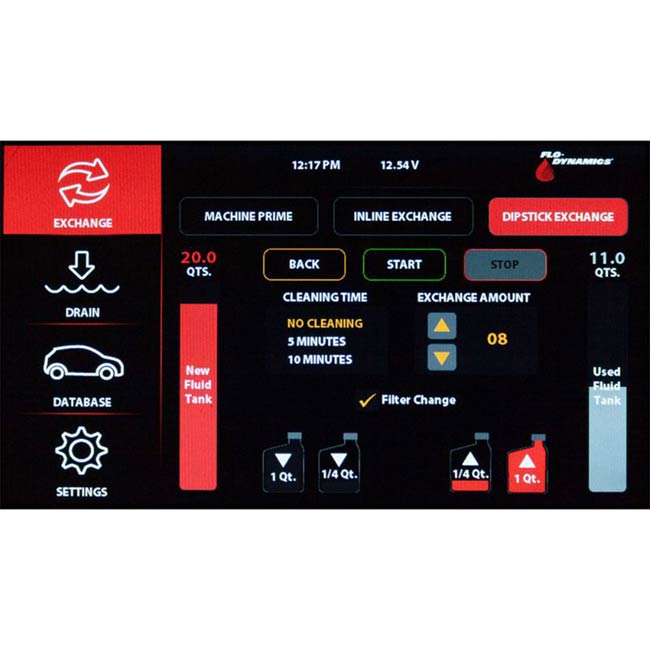

Intuitive Touchscreen Interface: A sophisticated large backlit touchscreen acts as the control center, providing users with clear screen prompts, service indicators, and seamless operation. The user-friendly interface ensures that even newcomers can operate the machine with ease.
-
Precision Meets Performance: With its ability to measure fluid with an impressive accuracy of +/-3%, you are always assured of the correct fluid levels, minimizing any chances of errors during service.
-
Versatile Operational Features: The inclusion of individual ADD and REMOVE fluid buttons offers fine-tuned control over fluid management. Alongside a pause button and a power interruption memory, the TSD450TS ensures that interruptions don't set back the entire process.
-
Advanced Flushing Capability: The specialized chemical flushing mode provides a thorough cleaning solution, ensuring that the system remains pristine and free of any residues.
-
Designed for Convenience: The machine's thoughtful design aspects include a rotocast polyethylene body that protects vehicles from accidental scratches. The adapter rack, designed to drain into the waste tank, ensures a clutter-free workspace, emphasizing cleanliness and organization.
-
Enhanced Visibility: The TSD450TS prioritizes transparency in its operations. The clear service hoses offer a direct visual insight into the fluid exchange process, ensuring confidence in the quality of service rendered.
-
Generous Capacity: With 24-quart tanks for both new and waste fluids, it offers a 21-quart effective exchange capability, ensuring that even vehicles with larger transmission fluid capacities are serviced effortlessly.
-
Mobility and Stability: Its five-inch locking caster wheels make relocating the unit a breeze, while also ensuring stability during operations.
-
Reliable Power System: A 12-volt power system, complemented by a voltmeter, guarantees consistent performance and allows users to monitor the machine's power status.
-
SKU & Dimensions: With a compact design measuring 39”H x 24 3/4”W x 25”D and weighing 133 lb., it effortlessly fits into most workshop spaces. The product's unique identifier is SKU: 40400055.
The TSD450TS ATF Inline & Dipstick Exchanger is not just a machine but a commitment to quality, precision, and efficiency. With its multitude of features and user-centric design, it represents the pinnacle of ATF exchange technology. By investing in this Flo-Dynamics masterpiece, workshops can ensure faster service times, enhanced customer satisfaction, and a clear edge over competitors.
Prop 65 Warning
WARNING: This product can expose you to chemicals including Lead which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov.
Specifications
- Dimensions: 39”H x 24 3/4”W x 25”D
- Weight: 133 lb.
- New Fluid Tank Capacity: 24 quart
- Used Fluid Tank Capacity: 24 quart
- Pump Rate: 2.5 gallons per minute
- Fluid Measurement Accuracy: +/-3%
- Exchange Capability: 21 quart
- Power Source: 12 volt
- Body Material: Rotocast polyethylene
- Wheel Type: 5-inch locking caster wheels
- Display: Large backlit touchscreen
- SKU: 40400055
These specifications highlight the key features and technical details of the TSD450TS ATF Inline & Dipstick Exchanger.
