Flo-Dynamics TSD450LCDC - ATF Inline & Dipstick Exchanger with Chemical Injection
MODEL : TSD450LCDC
PART NO: 40400031
The TSD450LCDC by Flo-Dynamics is a state-of-the-art transmission service system designed to meet the needs of modern automotive workshops. This advanced equipment offers a user-friendly interface, precision fluid exchange, and is engineered for durability and efficiency, ensuring your workshop can handle the demands of today's complex transmission systems.
- Powerful 2.5 gallon per minute rated pump for unmatched speed
- Fully automatic operation
- Special chemical flushing mode
- Proven, accurate fluid measurement (+/-3%)
- Individual ADD and REMOVE fluid buttons
- Power interruption memory
- Drains transmission pan for filter change
- 24 quart capacity new and waste fluid tanks with 21 quart exchange capability
- Pause button
- 12 volt powered
- Volt meter
- Adapter rack drains into the waste tank keeping the adapters dry and organized
- Rotocast polyethylene body and tanks won’t scratch vehicle
- Small platform saves space
- Quart counter
- Durable 5-inch locking caster wheels
- Clear service hoses provide visual confirmation of fluid exchange
- 6.25” x 3.5” fully interactive easy-to-use color touch screen

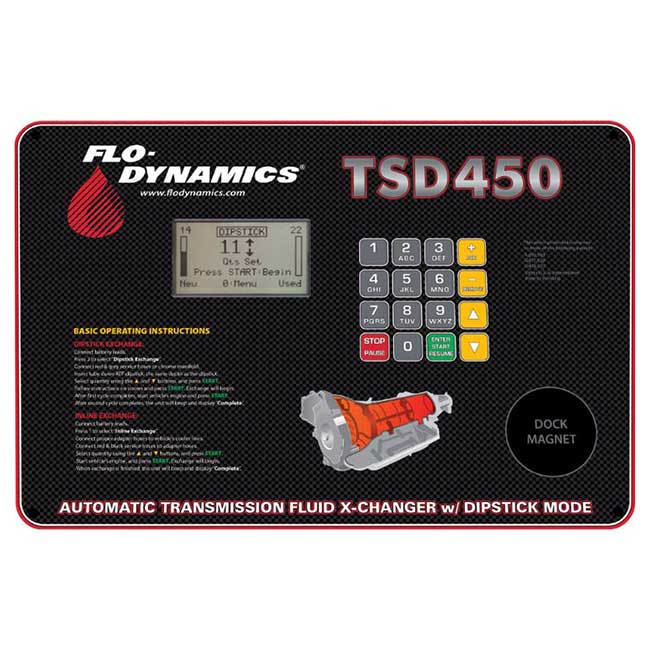

LCD Panel Features
- Ability to select 1 to 20 quarts exchange amount
- Ergonomically correct working height
- ADD/REMOVE fluid feature
- Quart counter
- Pause button
- Fluid totalizer
- Reverse hoses indicator

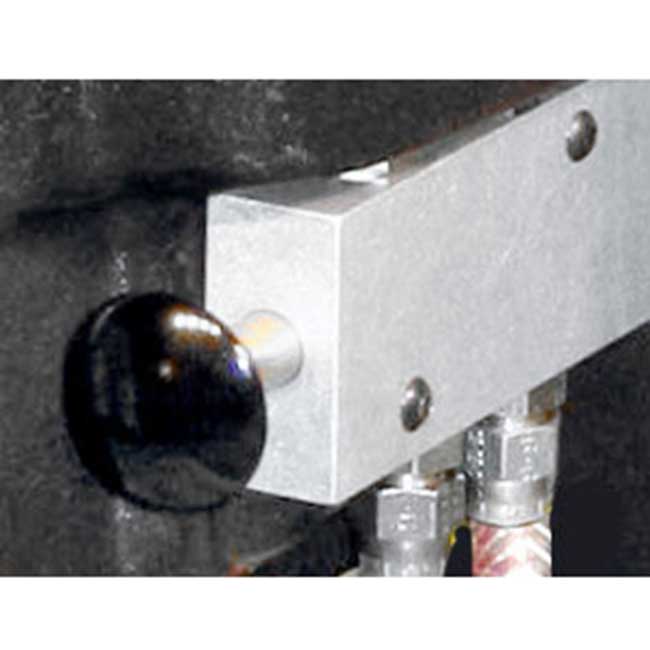

- Ability to reverse flow direction with the push or pull of a knob (TSD450LCDC)
Key Features:
- Intuitive LCD Control Panel: The large, easy-to-read LCD display ensures that technicians can monitor the service process accurately, providing real-time feedback on fluid levels, exchange progress, and diagnostic information.
- Precise Fluid Exchange: Utilize cutting-edge technology to achieve a near 100% exchange rate of transmission fluid, ensuring a comprehensive service for a wide range of vehicle makes and models.
- Versatile Compatibility: Designed to work with both domestic and imported vehicles, the TSD450LCDC is equipped with a comprehensive set of adapters, making it a versatile tool for any automotive service center.
- Automated Functions: Automated features, including fluid exchange and diagnostics, reduce manual intervention, ensuring a more efficient and error-free operation.
- Built-In Safety Features: The system includes numerous safety features to prevent overflows, incorrect fluid exchanges, and other common service issues, ensuring both vehicle and operator are protected at all times.
- Power Supply: Designed for compatibility with standard workshop power sources.
- Fluid Exchange Rate: Capable of completing fluid exchanges in a matter of minutes.
- Construction: Robust construction with high-quality materials for extended service life.
- Dimensions and Weight: Compact design for easy integration into any workshop environment, with mobility options for convenience.
The TSD450LCDC represents Flo-Dynamics' commitment to innovation and quality in automotive service equipment. With its advanced features, comprehensive service capabilities, and user-friendly design, it is an essential addition to any workshop looking to enhance its transmission service offerings.
Prop 65 Warning
WARNING: This product can expose you to chemicals including Lead which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov.
Specifications
- Dimensions: 39”H x 24 3/4”W x 25”D
- Weight: 133 lb.
- New Fluid Tank: 24 quart
- Used Fluid Tank: 24 quart
The TSD450LCDC is not just a tool but a revolutionary step forward in transmission service technology. It embodies Flo-Dynamics' commitment to providing high-quality, innovative solutions for automotive service centers. This system is engineered to boost your workshop's productivity and service quality, ensuring that every transmission service is performed flawlessly.
