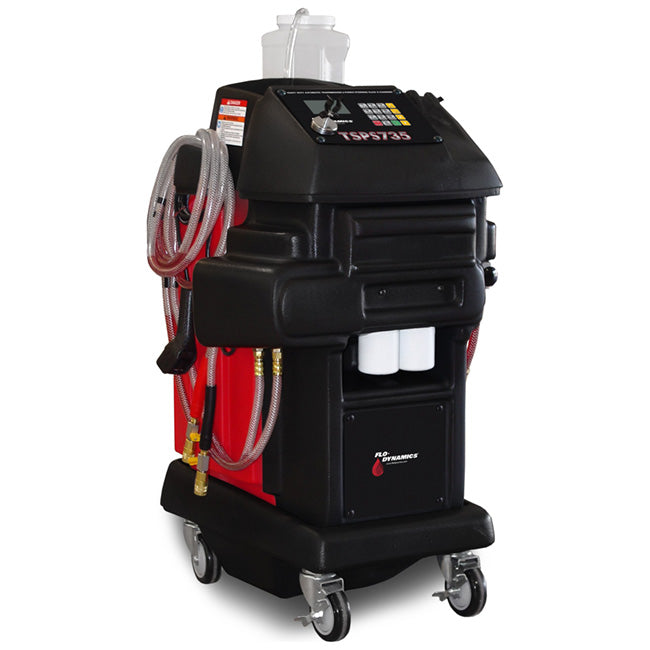

Flo-Dynamics 98019 - TSD735 ATF In-line and Dipstick Exchanger and Flow Diverter

Description

Flo-Dynamics TSD735 ATF In-line and Dipstick Exchanger and Flow Diverter - 98019

MODEL :  TSD735

PART NO: 98019

Multi-method transmission fluid exchange: inline or through the dipstick

• Ability to select any fluid exchange amount
• from 1 - 35 quarts
• Patented electronic measuring technology
• Fully interactive LCD control panel shows the technician everything going on, taking out all the guesswork
• Large 2.5 GPM pump able to handle anything
• from low-flow vehicles to trucks & buses
• ADD and REMOVE fluid features
• SWITCH HOSES indicator & the ability to switch
• flow direction with the push of a button
• Patented electronic measuring technology
• Fluid totalizer
• Power loss memory
• Pause function
• Large 35 quart tanks

PERFORMANCE-DRIVEN BENEFITS:

• Accurate sensor technology allows optimum fluid
• level to be maintained in vehicle's transmission.
• Two in-line 22-micron absolute fluid filters capture microscopic particles and contaminants.
• Easy to use adapters allow quick hookup to virtually any automobile make and model, saving time and money.
• Fully automatic. Performs an entire exchange
• with the push of a button.
• 2.5 gallon per minute pump ensures rapid exchanges.

FEATURES:

• Roto-cast polyethylene body and tanks
• Drains vehicle's transmission for filter change
• Ability to add and remove fluid
• Adapter holder drains directly into waste tank
• Ergonomically correct working height
• 5-inch locking caster wheels
• Clear service hoses
• Select ANY quantity from 1 to 35 quarts
• Easy to follow screen prompts
• Quart Counter
• Pause Button
• Power interruption memory
• Volt Meter

Specifications

• Dimensions:  39"H x 24 3/4"W x 25"D
• Shipping Weight: TS735: 138 lbs.
• Fluid Tanks:  35 qt. New & Used
• Power:  12V DC from vehicle's battery
• Weight: 132 lbs

Documents

Brochure

Operations Manual

Quick-Start Guides

Universal Standard ATF Adapters

Optional Adapters

Additional Functions Sheet

Video
