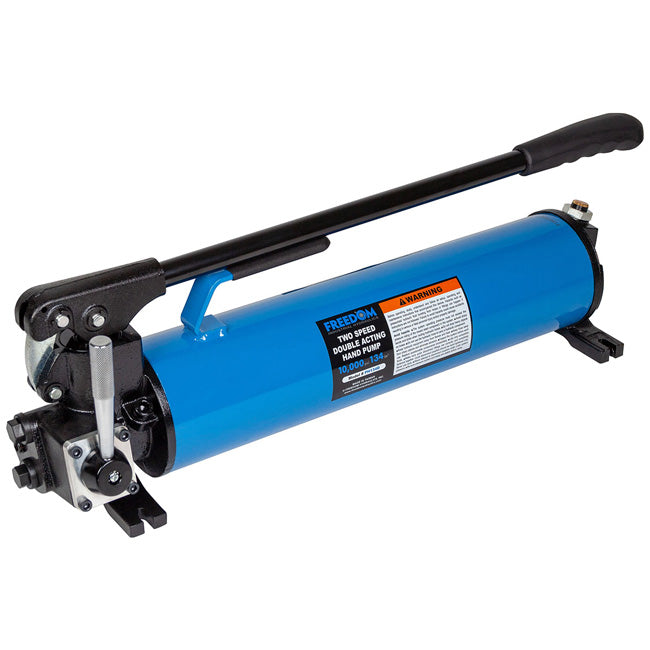

Freedom Hydraulics PH134D – 134 in³ 10,000 Psi Two Speed Hand Pump - Double Acting, 4 Way 3 Position Valve
Freedom Hydraulics PH134D – 134 in³ 10,000 Psi Two Speed Hand Pump - Double Acting, 4 Way 3 Position Valve
Ships within (1 - 3 Business Days)
SKU: PH134D
Couldn't load pickup availability
Description
134 in³, 10,000 psi, Two Speed Hand Pump – Double Acting, 4 Way 3 Position Valve.
Model: PH134D
- High strength metal reservoir eliminates reservoir cracking
- Shop air pressure range of 40-170 psi
- Ideal for frame machines and other OEM equipment
- Internal pressure relief valve protects from overloading
- Maximum working pressure at 10,000 psi
Prop 65 Warning
WARNING: This product can expose you to chemicals including Lead which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov.
Specifications
- Model #: PH134D
- Usable Oil Capacity (in³/min): 122
- Valve Function: Double Acting
- Pump Type: 2 Speed
- Pressure Rating: .
- 1st Stage (psi): 400
- 2nd Stage (psi): 10000
- Oil Displacement Per Stroke: .
- 1st Stage (in³): 2.39
- 2nd Stage (in³): 0.17
- Maximum Operating Force (lbs.): 81
- Piston Stroke: 0.98
- Oil Outlet Port: 3/8in.-18NPTF
- Weight (lbs.): 32
