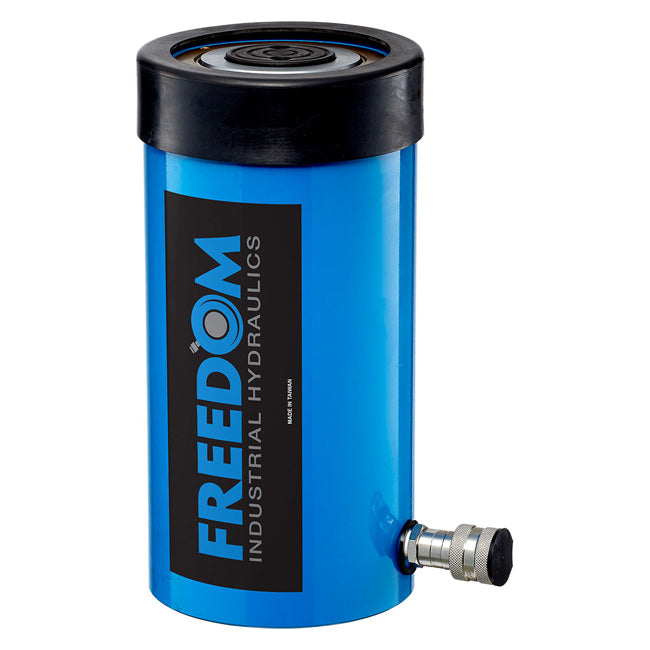

Freedom Hydraulics S10010 – 100 Ton Single Acting Cylinder, 10.00 in. Stroke
Freedom Hydraulics S10010 – 100 Ton Single Acting Cylinder, 10.00 in. Stroke
BRAND: Freedom Hydraulics
SKU: S10010
In Stock
Couldn't load pickup availability
100 Ton Single Acting Cylinder, 10.00in. Stroke.
Model: S10010
- Plunger wiper seal keeps out contamination and debris
- Upper and lower bronze bearings for minimal wear of cylinder rod and maximizing lifetime of cylinder
- Industrial grade springs for increased spring performance and lifetime
- Industrial grade steel construction withstands even the most demanding of applications
- Chrome plated piston rod eliminates corrosion and rust
- Base mounting holes, collar threads and plunger threads available on most models
- 3/8in. NPTF female coupler and dust cap on all models
Prop 65 Warning
WARNING: This product can expose you to chemicals including Lead which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov.
- Capacity (tons): 100
- Stroke (in.): 10.12
- Model #: S10010
- Cylinder Effective Area (in.2): 20.57
- Oil Capacity (in.3): 208.2
- Collapsed Height (in.): 18.05 (A)
- Extended Height (in.): 28.17 (B)
- Outside Diameter (in.): 6.99 (C)
- Cylinder Bore Dia. (in.): 5.12 (D)
- Plunger Diameter (in.): 4.13 (E)
- Base to Coupler Port (in.): 1.57 (F)
- Saddle Distance above Cyl. (in.): 0.12 (G)
- Piston Internal Thread (in.): – (H)
- Piston Thread Length (in.): 0.59 (I)
- Base Mounting Holes: .
- Bolt Circle (in.): 5.5 (J)
- Thread (in.): 3/4in.-10UNC (K)
- Thread Depth (in.): 1 (L)
- Collar Thread (in.): 6 7/8in.-12UNC (M)
- Collar Thread Length (in.): 1.75 (N)
- Saddle Diameter (in.): 2.76 (O)
- Weight (lbs.): 177
